The Chart Properties deck allows you to modify and control the chart shown in the chart view. The contents of the Chart Properties deck changes depending on how many dimensions and measures appear in the Columns and Rows decks. If there are at least two measures present in a Columns or Rows deck, you can select options in the Chart Properties > Axes.

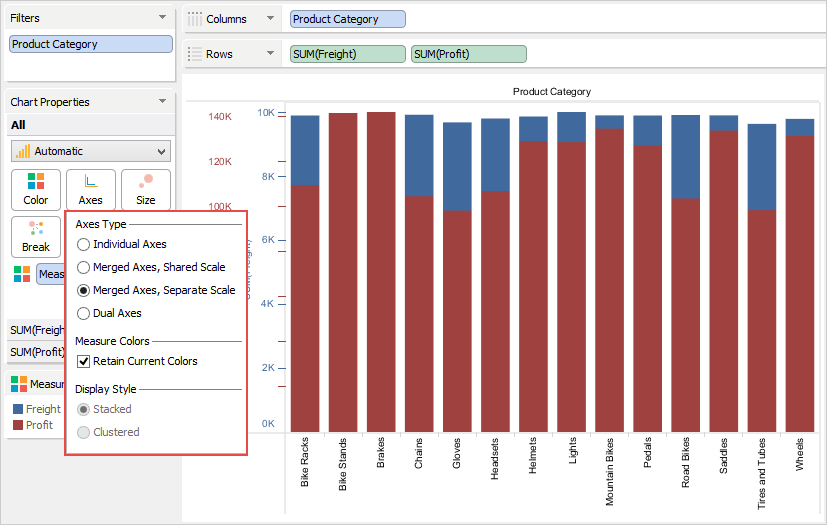

The settings within the Chart Properties > Axes allows you to select:

• Individual Axes
• Merged Axes Shared Scale (Stacked)
• Merged Axes Shared Scale (Clustered)
• Merged Axes Separate Scale
• Dual Axes
• Retain Current Colors

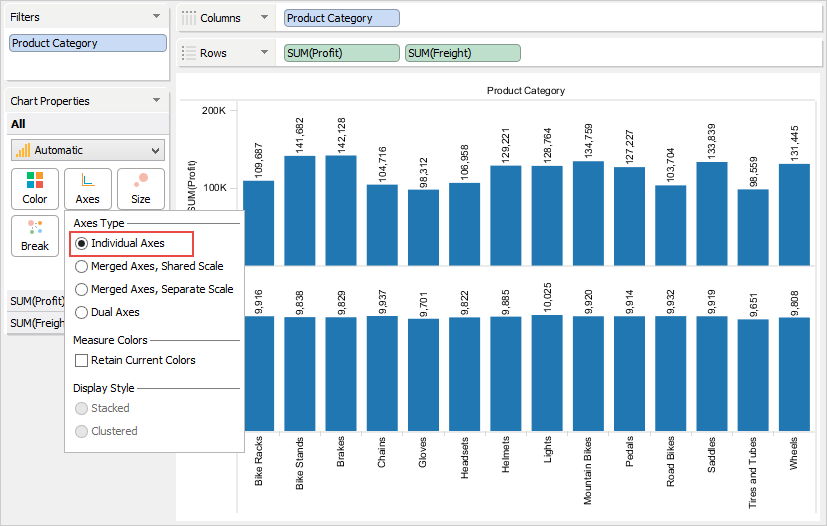

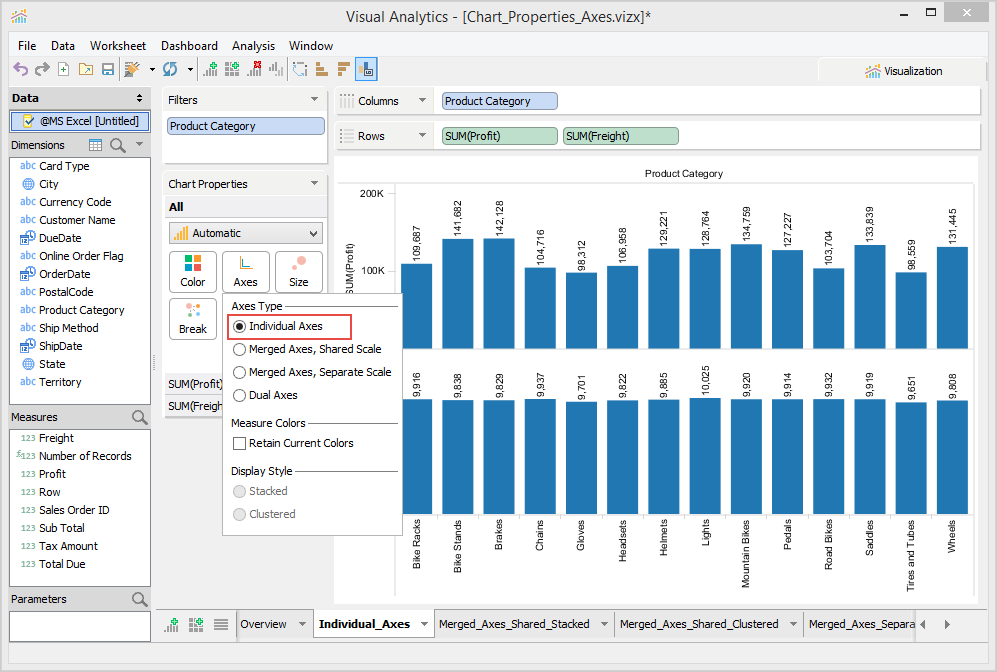

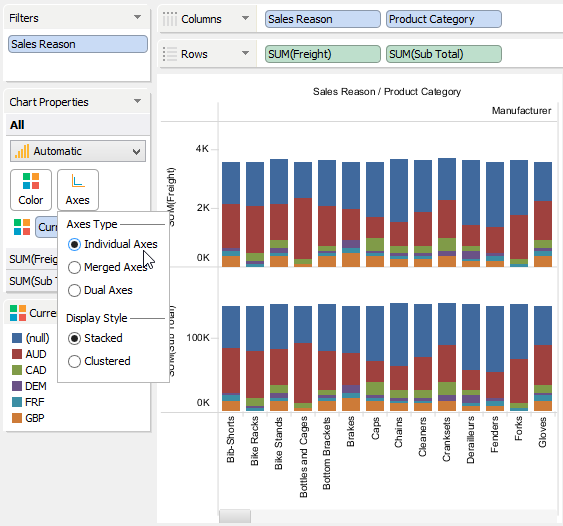

Individual Axes

Each measure and dimension combination gets its own independently labelled chart in the chart view.

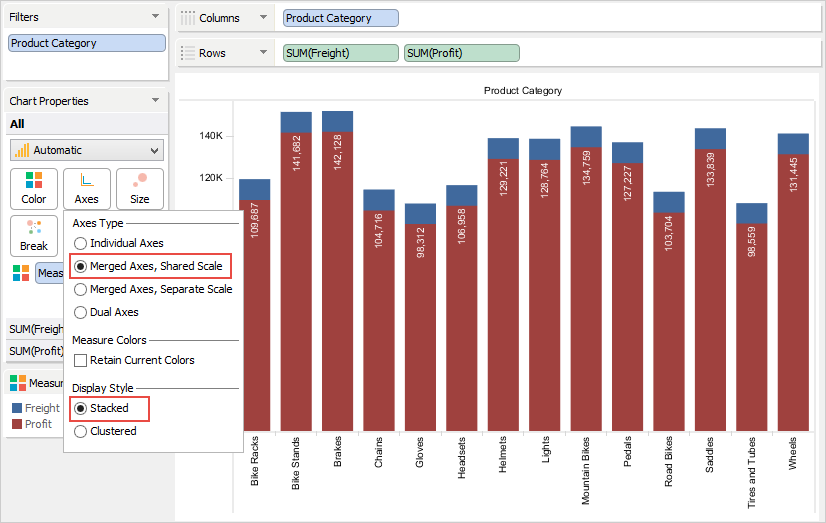

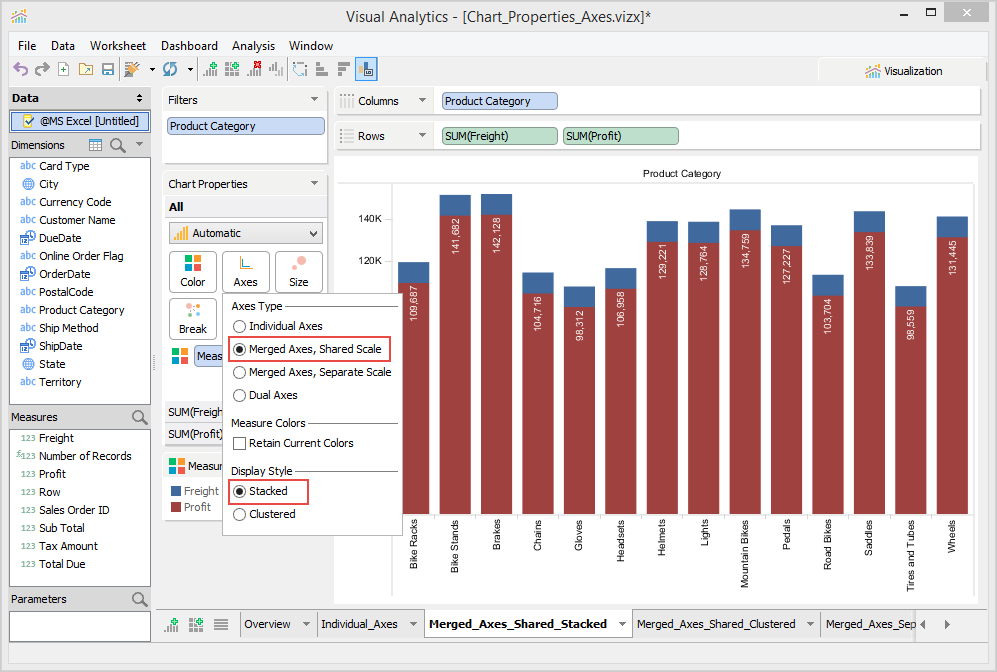

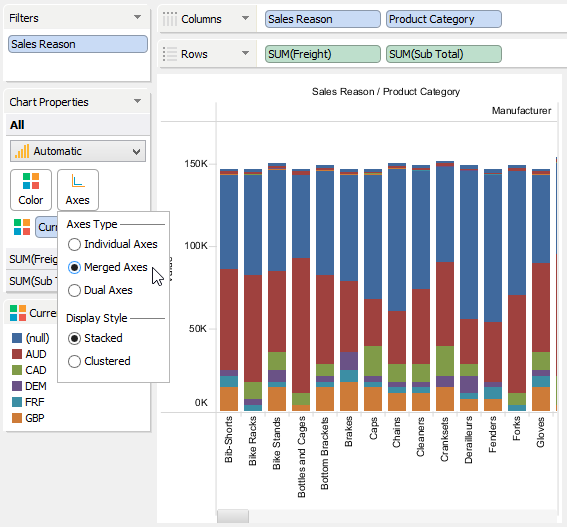

Merged Axes Shared Scale (Stacked)

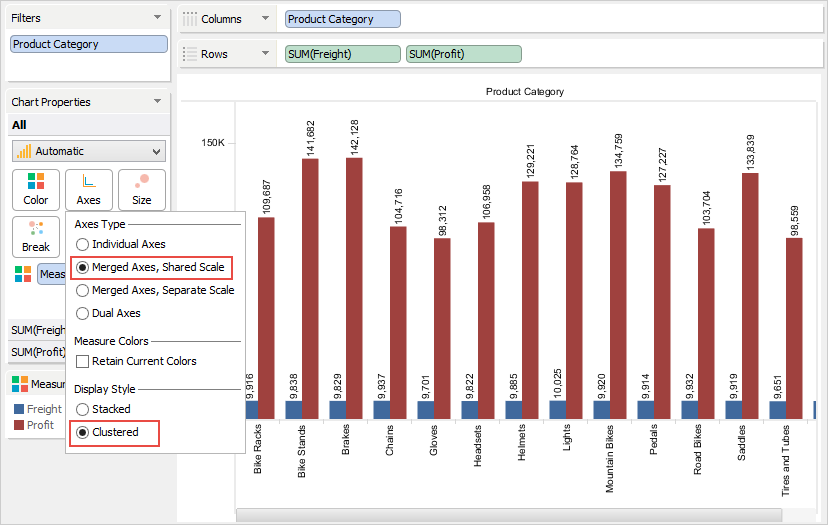

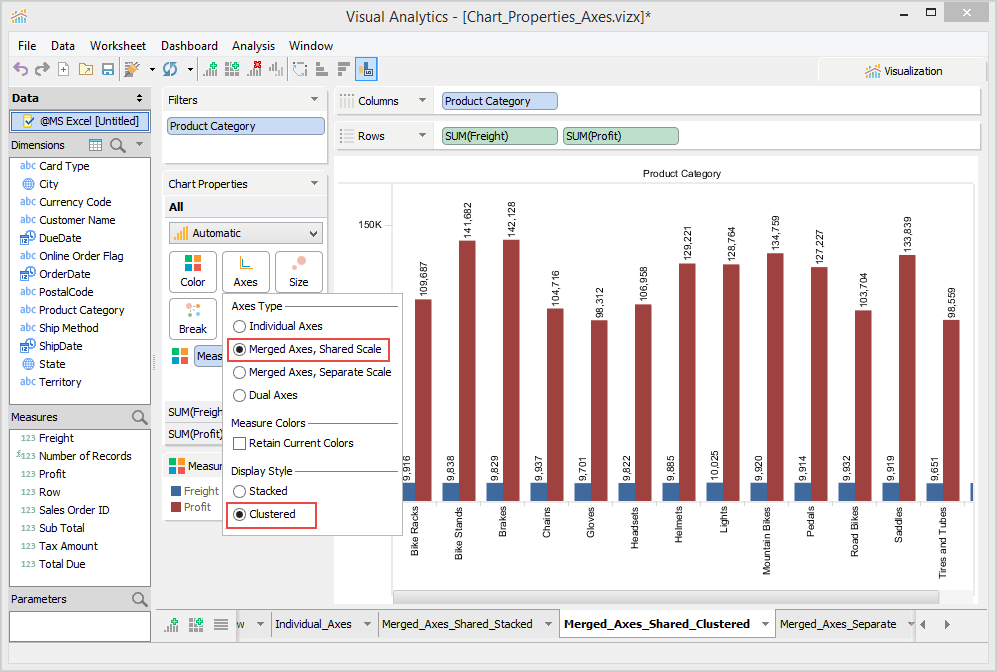

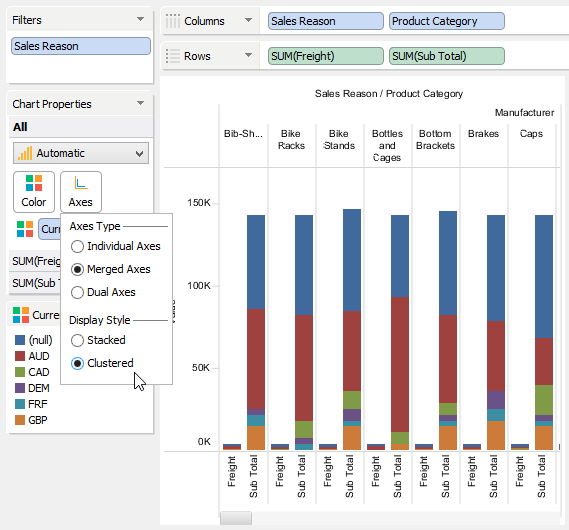

Merged Axes Shared Scale (Clustered)

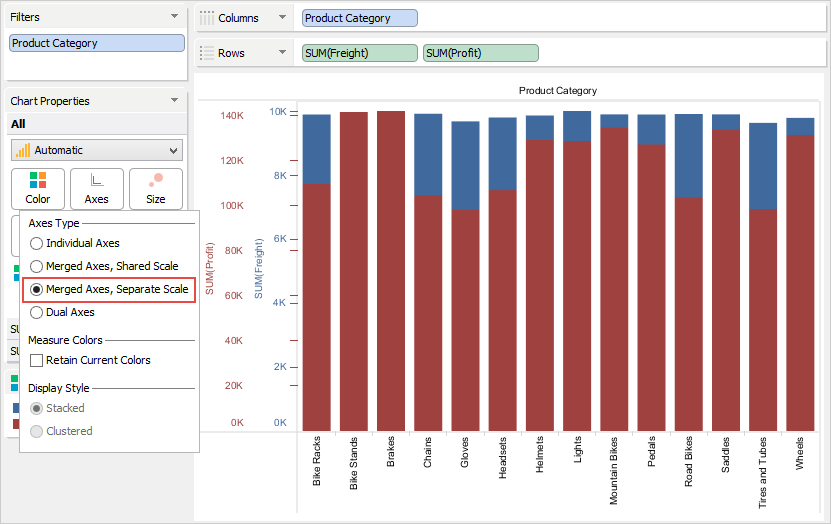

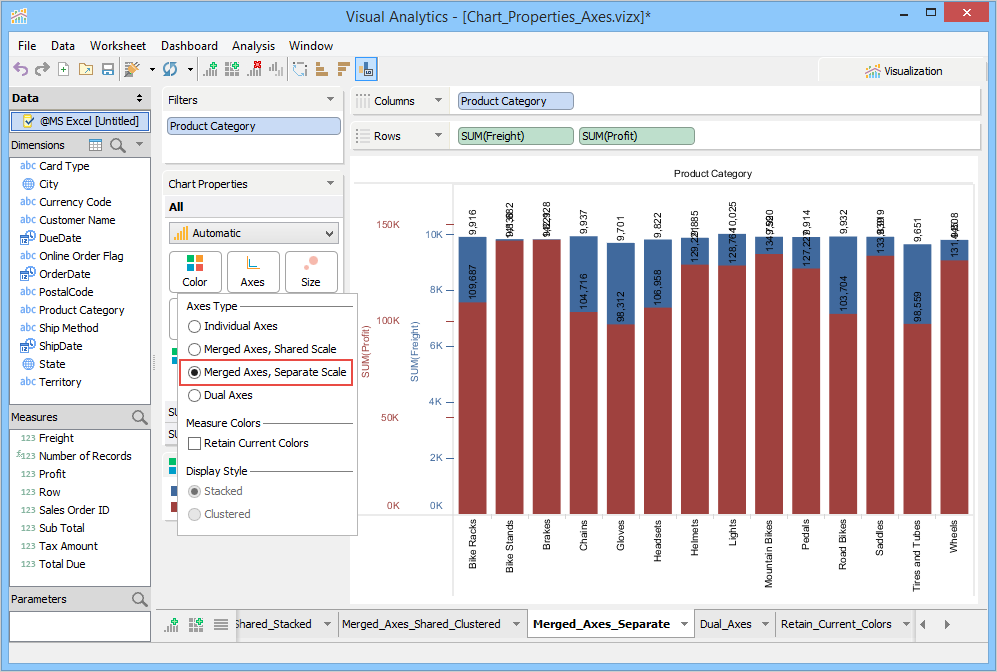

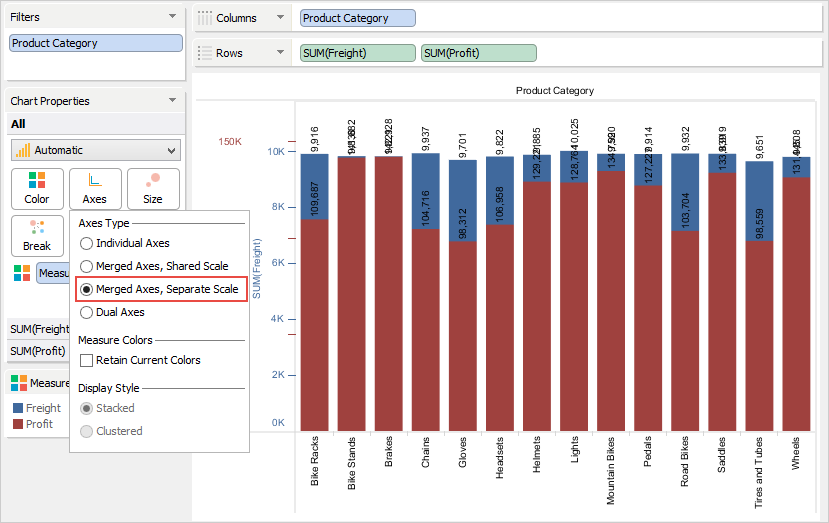

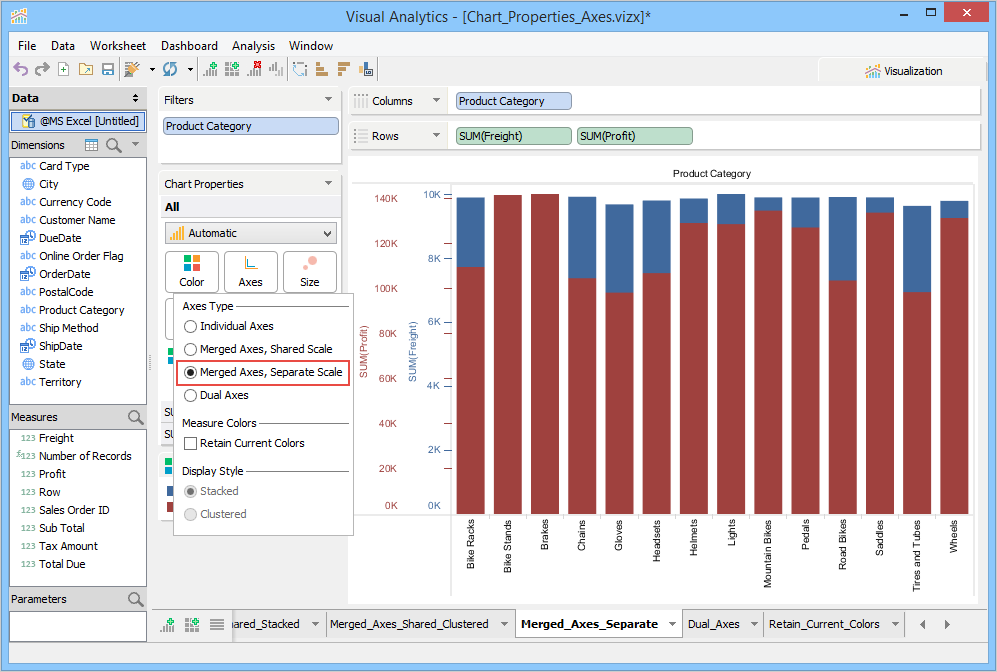

Merged Axes Separate Scale

Each measure and dimension combination has a separate color coded parallel axis. The color code is same as that applied to the measure.

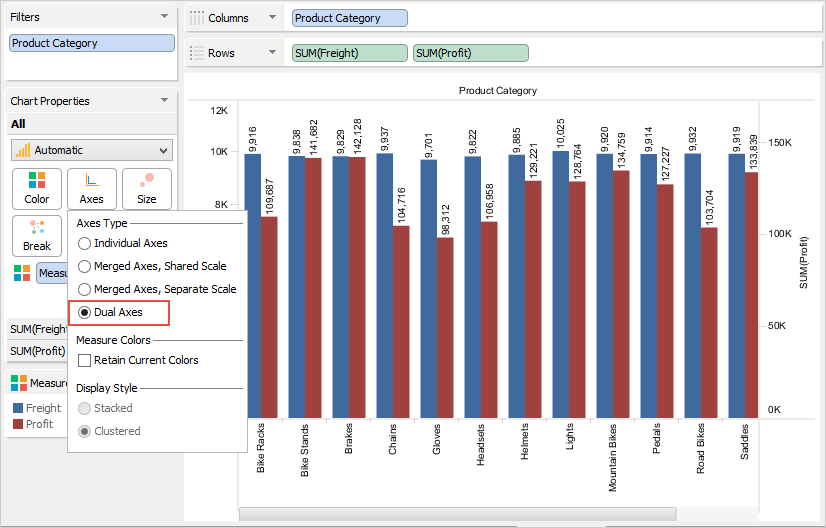

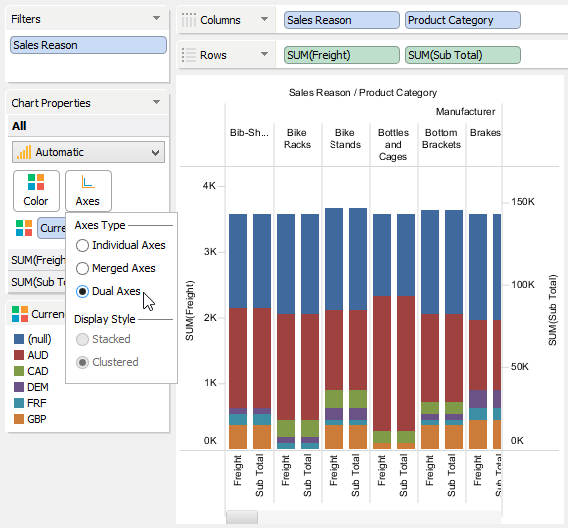

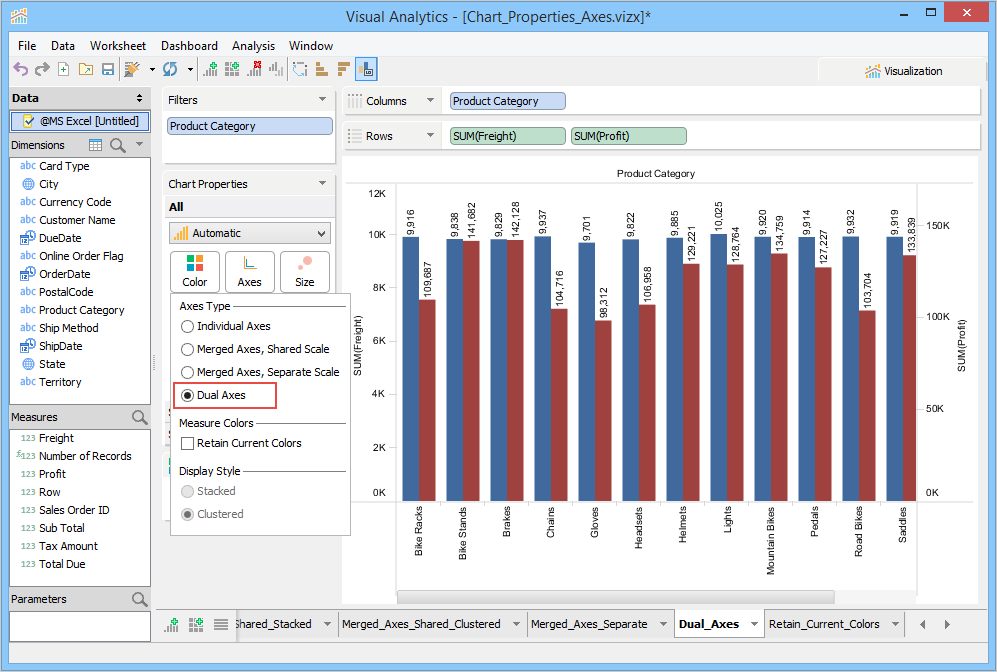

Dual Axes

Each side of the chart view displays a measure value range and label for a distinct measure with a different color for each measure name.

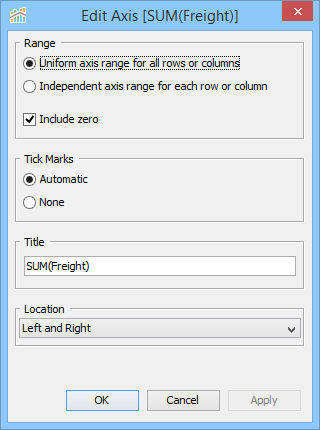

If you want to control the measure tick marks, axis title, range and axis location shown on an axis, right-click the axis in the chart and select the Edit Axis option.

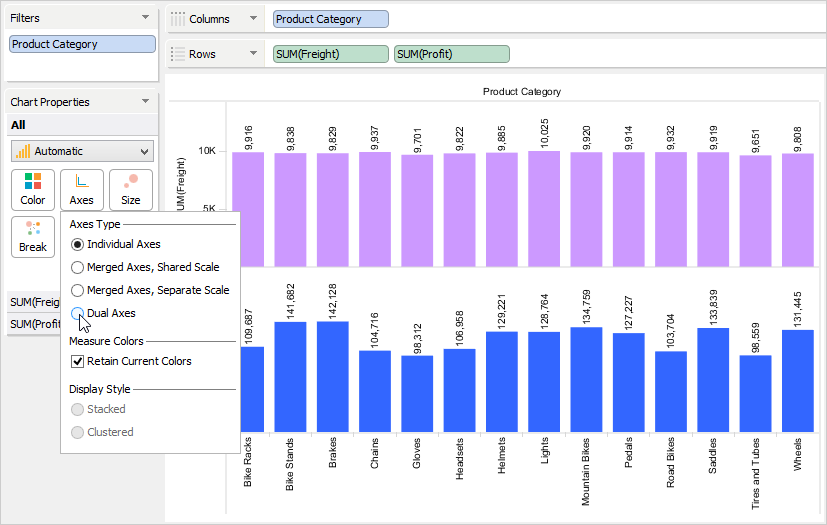

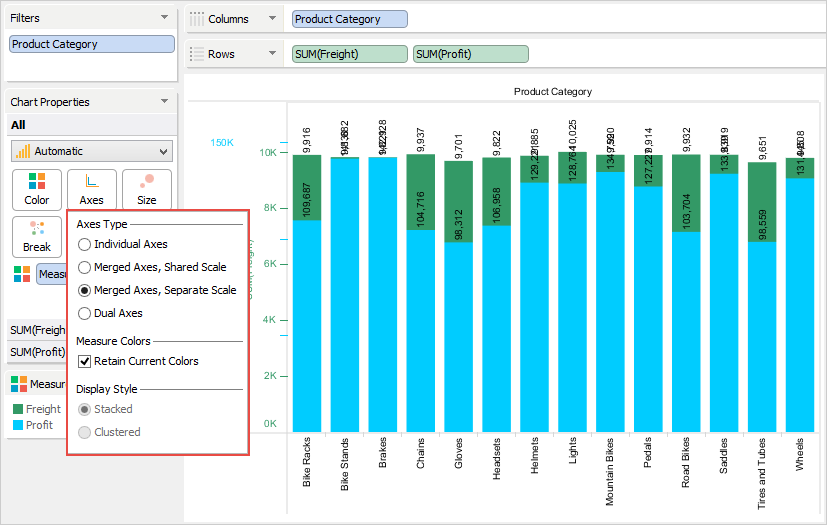

Retain Current Colors
