#10390: column ghosting during 2D 3D swapping

swissarmyknife(*) reported 2013-10-10T17:59:49Z · last modified 2014-07-14T16:56:55Z

column ghosting during 2D 3D swapping

Dev	mattbrumley(*)
QA	swissarmyknife(*)

Priority	Low
Complexity	Unknown

Component	App - Charts
Version	15.0

I realize folks are aware of this bug. I'm logging it just so we don't lose track of it.

Version: 15.0.0-dev-21

Build #: 34308

Build Date: 2013-Oct-03 01:23:24 PM

Operating Environment: Windows XP (5.2, amd64) / Cp1252 / en / US / Oracle Corporation 1.7.0_40-b43

Memory: Max=954,728,448; Total=387,973,120; Free=207,220,840; CPUs=8

1. generate a chart (mine is a column chart)

2. click on the 2D 3D swap button a few times but don't move your cursor off of the button.

3. as you click you'll see ghosting of the columns when the view swaps from 2D to 3D and back.

4. when you see the ghosting, slowly move your cursor into the Chart and the ghosting goes away.

see attached GIF Animation

2 attachments

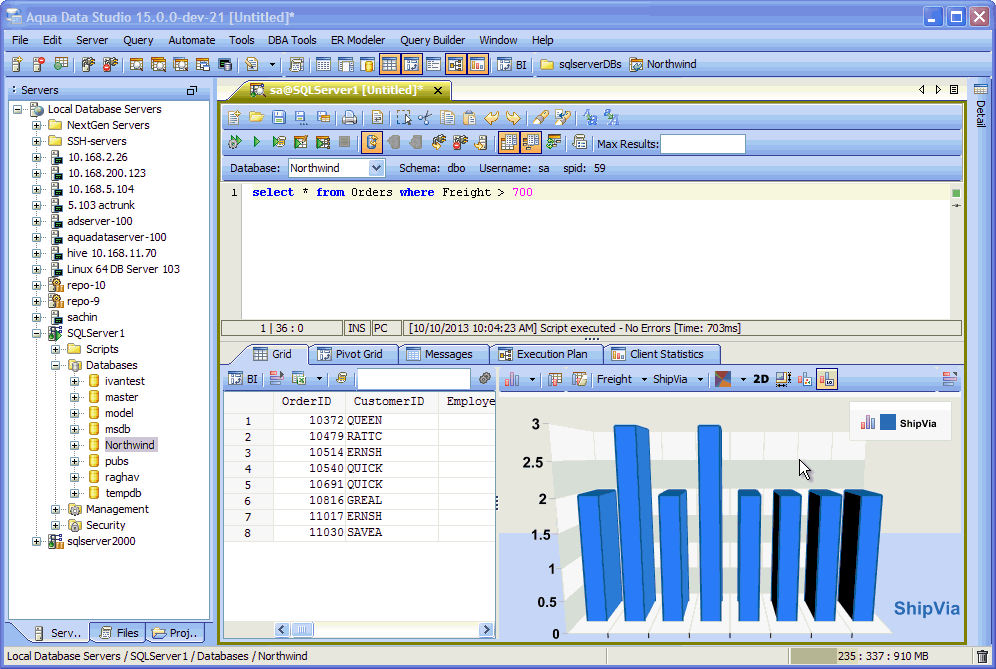

GIF Animation - v15 Chart ghosting on 2D 3D swapping

2013-10-10T17:59:49Z

284 KB

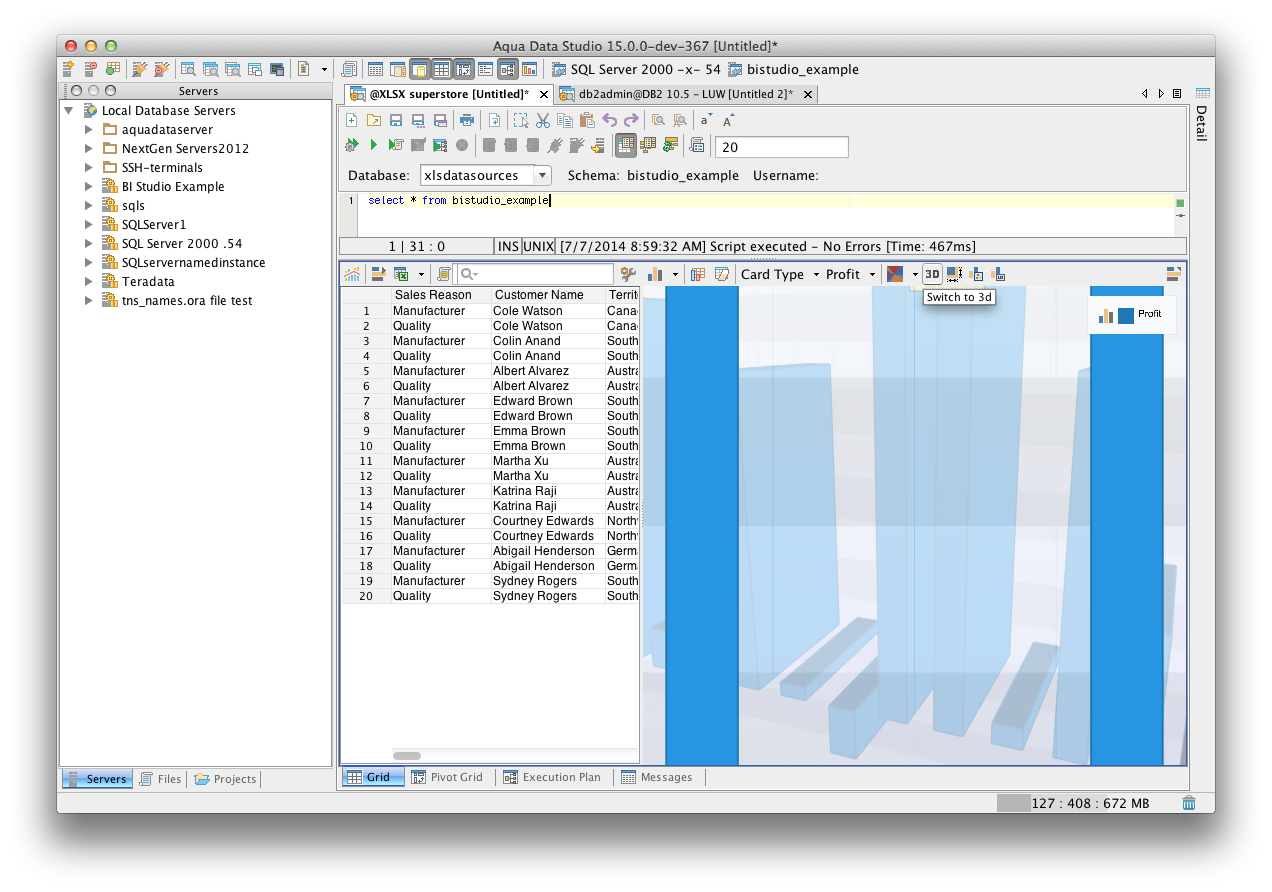

dev-367 OSX 10.9.4 java 1.7.0_60-b19

2014-07-07T16:01:48Z

208 KB

All Comments (6) Change History

swissarmyknife(*) 2014-06-20T23:44:26Z

I do not see this issue in v14.

I do see the issue in v15 -dev-332

I have not checked if it is related to java version yet

SachinPrakash 2014-06-21T00:14:20Z · (edited)

This issue was introduced w/ the upgrade to JOGL 2.0.

swissarmyknife(*) 2014-06-23T16:34:01Z · (edited)

for OSX

see issue with v15 using java 1.6.0_65-b14-462-11M4609

see issue with v15 using java 1.7.0_51_b13

swissarmyknife(*) 2014-07-07T16:01:17Z

still see this in OSX with (view latest screenshot)

Version: 15.0.0-dev-367

Build #: 39024

Build Date: 2014-Jul-04 01:39:25 PM

Operating Environment: Mac OS X (10.9.4, x86_64) / UTF-8 / en / US / Oracle Corporation 1.7.0_60-b19

Memory: Max=704,643,072; Total=447,217,664; Free=292,253,632; CPUs=8

swissarmyknife(*) 2014-07-07T20:11:06Z

dev-31 jogl 1.x ( tested in Linux )

column ghosting occurs

dev-32 jogl 2.1.1 ( tested in Linux )

ghosting still present

dev-236 jogl 2.1.5 ( tested in Linux )

ghosting still present

swissarmyknife(*) 2014-07-14T16:56:55Z

dev-379

does not occur in all test cases
