#13725: Unable to generate Map Chart: gives java.lang.UnsatisfiedLinkError

tariqrahiman reported 2015-09-11T03:55:10Z · nareshnasha(*) last modified 2017-01-04T09:17:16Z

Unable to generate Map Chart: gives java.lang.UnsatisfiedLinkError

Dev	mattbrumley(*)
QA	nishtha(*)

Priority	Low
Complexity	Unknown

Component	Open API - Chart
Version	18.0

Unable to generate Map Chart: gives java.lang.UnsatisfiedLinkError

Steps to reproduce the issue :

1. Execute below map AquaScript in ADS v16. ADS v17 and you get java.lang.UnsatisfiedLinkError: com.aquafold.aquacore.open.chart.mesa.GLImpl.isExtensionAvailable(Ljava/lang/String;)Z

Reference:

1. Open Package com.aquafold.openapi.chart.

2. Open Interface AQChart and and Method getModel()

3. Open Interface AQChartProperties and Methods :

Script

----------

var chart = aqua.chart.newChart();

var model = chart.getModel();

model.addSeries("a");

model.addSeries("b");

model.addCategory("US");

model.addCategory("UK");

model.addCategory("France");

model.setValue(0, 0, 100);

model.setValue(0, 1, 200);

model.setValue(0, 2, 300);

model.setValue(1, 0, 10);

model.setValue(1, 1, 20);

model.setValue(1, 2, 30);

chart.getProperties().setChartTypeMap(0);

//chart.getProperties().setMergeAxis(true);

var type = chart.getProperties().getChartTypeString(1);

aqua.response.write('Chart Type: ').write(type).write("<p>");

chart.getProperties().setImageWidth(640);

chart.getProperties().setImageHeight(480);

// image will be available for 5 seconds

var url = chart.cache(5);

aqua.response.write('<img src=').write(url).write('>');

aqua.response.write('<p>');

========================================

Exception is

=========================================

java.lang.UnsatisfiedLinkError: com.aquafold.aquacore.open.chart.mesa.GLImpl.isExtensionAvailable(Ljava/lang/String;)Z

at com.aquafold.aquacore.open.chart.mesa.GLImpl.isExtensionAvailable(Native Method)

at com.aquafold.aquacore.open.chart.mesa.Bꒇ͢⡣ꍵ.isExtensionAvailable(Unknown Source)

at com.jogamp.opengl.util.texture.Texture.updateImage(Texture.java:489)

at com.jogamp.opengl.util.texture.Texture.updateImage(Texture.java:441)

at \\...\\ .\\हिñçêČάй語简�?한\\.B᠜ᠬꉳꍇ try.aU(Unknown Source)

at \\...\\ .\\हिñçêČάй語简�?한\\.B᠜ᠬꉳꍇ try.a(Unknown Source)

at \\...\\ .\\हिñçêČάй語简�?한\\.y̻͙ꈯ̸.drV(Unknown Source)

at \\...\\ .\\हिñçêČάй語简�?한\\.y̻͙ꈯ̸.a(Unknown Source)

at \\...\\ .\\हिñçêČάй語简�?한\\.y̻͙ꈯ̸.b(Unknown Source)

at \\...\\ .\\हिñçêČάй語简�?한\\.y̻͙ꈯ̸.render(Unknown Source)

at \\...\\ .\\हिñçêČάй語简�?한\\.vꄚ⠻ꁺꎍ package package.refresh(Unknown Source)

at \\...\\ .\\हिñçêČάй語简�?한\\.vꄚ⠻ꁺꎍ package package.ahW(Unknown Source)

at \\...\\ .\\हिñçêČάй語简�?한\\.y̻͙ꈯ̸.c(Unknown Source)

at \\...\\ .\\हिñçêČάй語简�?한\\.d᡽ꆷꋰꏈ Object.c(Unknown Source)

at \\...\\ .\\हिñçêČάй語简�?한\\.D᜶ꀊꈲᜦ extends boolean.a(Unknown Source)

at \\...\\ .\\हिñçêČάй語简�?한\\.qꆚꅷ⣹̍ break new.cache(Unknown Source)

at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)

at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:57)

at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)

at java.lang.reflect.Method.invoke(Method.java:606)

at org.mozilla.javascript.MemberBox.invoke(Unknown Source)

at org.mozilla.javascript.NativeJavaMethod.call(Unknown Source)

at org.mozilla.javascript.Interpreter.interpretLoop(Unknown Source)

at org.mozilla.javascript.Interpreter.interpret(Unknown Source)

at org.mozilla.javascript.InterpretedFunction.call(Unknown Source)

at org.mozilla.javascript.ContextFactory.doTopCall(Unknown Source)

at org.mozilla.javascript.ScriptRuntime.doTopCall(Unknown Source)

at org.mozilla.javascript.InterpretedFunction.exec(Unknown Source)

at org.mozilla.javascript.Context.evaluateString(Unknown Source)

at org.mozilla.javascript.tools.debugger.Dim$DimIProxy.run(Unknown Source)

at org.mozilla.javascript.Context.call(Unknown Source)

at org.mozilla.javascript.ContextFactory.call(Unknown Source)

at org.mozilla.javascript.tools.debugger.Dim$DimIProxy.withContext(Unknown Source)

at org.mozilla.javascript.tools.debugger.Dim$DimIProxy.access$700(Unknown Source)

at org.mozilla.javascript.tools.debugger.Dim.evalScript(Unknown Source)

at \\...\\ .\\हिñçêČάй語简�?한\\.gꍪꎦ⡎ᡮ int.ul(Unknown Source)

at \\...\\ .\\हिñçêČάй語简�?한\\.cᡆꌢ6⠏ 6 this.run(Unknown Source)

at java.lang.Thread.run(Thread.java:745)

4 attachments

setChartTypeMap.xjs

2015-09-15T04:48:39Z

1 KB
Map Chart.png

2015-09-15T04:48:39Z

121 KB

2016-03-14T06:49:56Z

167 KB

2017-01-04T09:16:24Z

232 KB

All Comments (7) Change History

nishtha(*) 2015-09-15T04:47:50Z

On Aqua Data Server,If we execute attached("setChartTypeMap.xjs") script Map chart is not generated and also no error message is displayed for it as mentioned here.

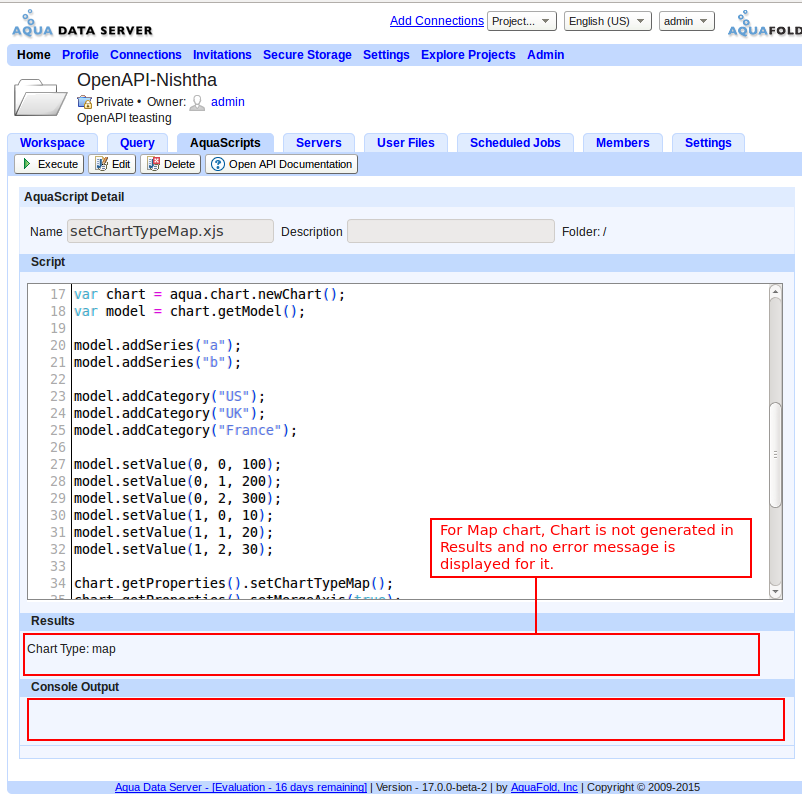

Please refer attached screen-shot "Map Chart.png".

SachinPrakash 2015-09-17T03:49:10Z

To fix this, we have to recompile the mesa dlls and add the missing functions.

mattbrumley(*) 2016-02-27T12:59:17Z

Implement isExtensionAvailable in MesaGLImpl.java (instead of in JNI DLL)
Query extensions with gl.getString(GL_EXTENSIONS), then search the result for the user-specified string

nishtha(*) 2016-03-14T06:51:46Z · (edited)

Verified for Aqua Data Studio in ADS18.0.0-devi-82.
Now no exceptions occurs and Map chart generated successfully in browser window(When File Menu -> General -> Chart -> Offscreen Rendering option is set to 'Hardware GPU Renderer').

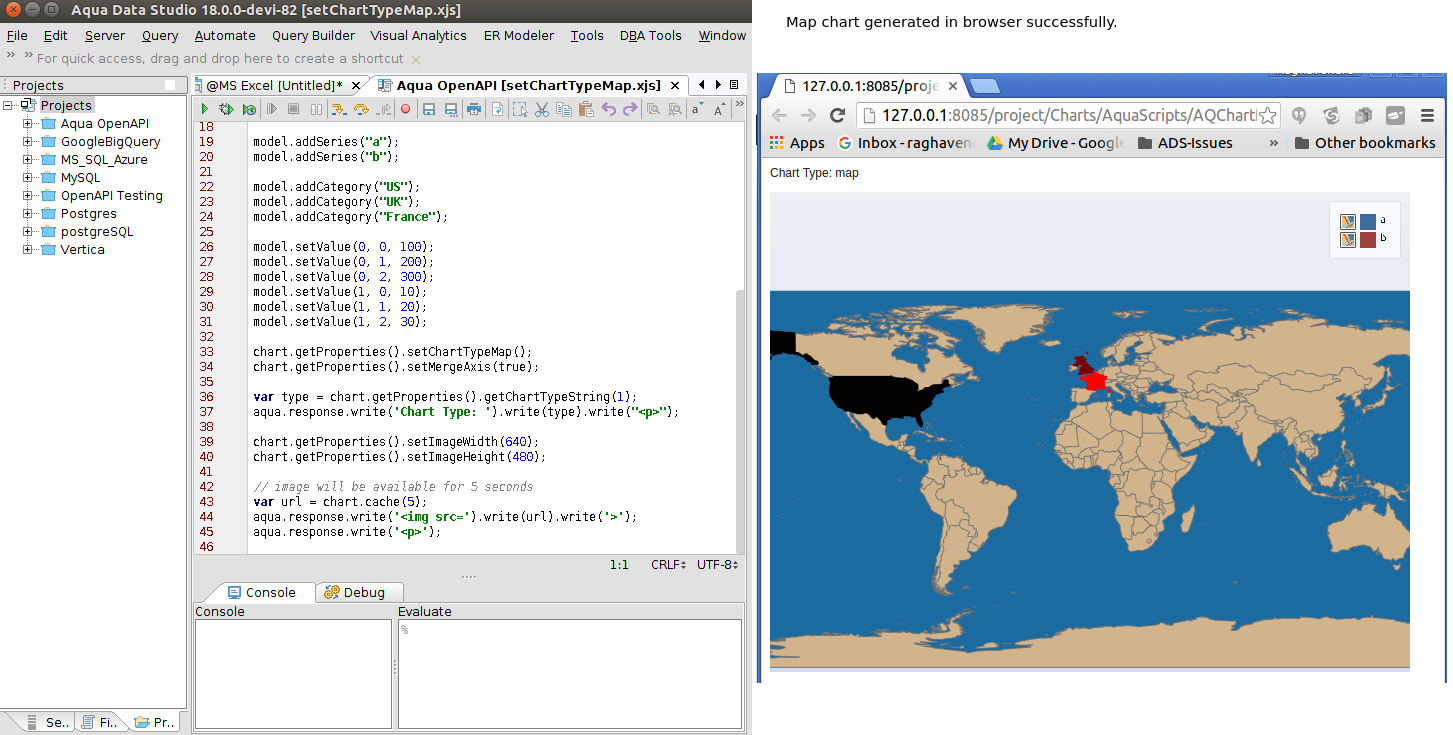

Please refer attached screen-shot "13725_ADS18-dev-82.png".

But Map chart issue mentioned here is not resolved for Aqua Data server hence reopening this issue.
(Checked in AD Server build 18-dev-33)

SachinPrakash 2016-03-14T18:29:08Z

Lets keep this closed & only have an open issue in Aqua Data Server project.

nishtha(*) 2016-03-15T04:51:15Z

Logged a new issue(Issue #2966) for Map chart rendering in Aqua Data Server project.

nareshnasha(*) 2017-01-04T09:17:07Z

Marking this issue as verified as it is working as expected.

Verified in ADS 18 rc-16

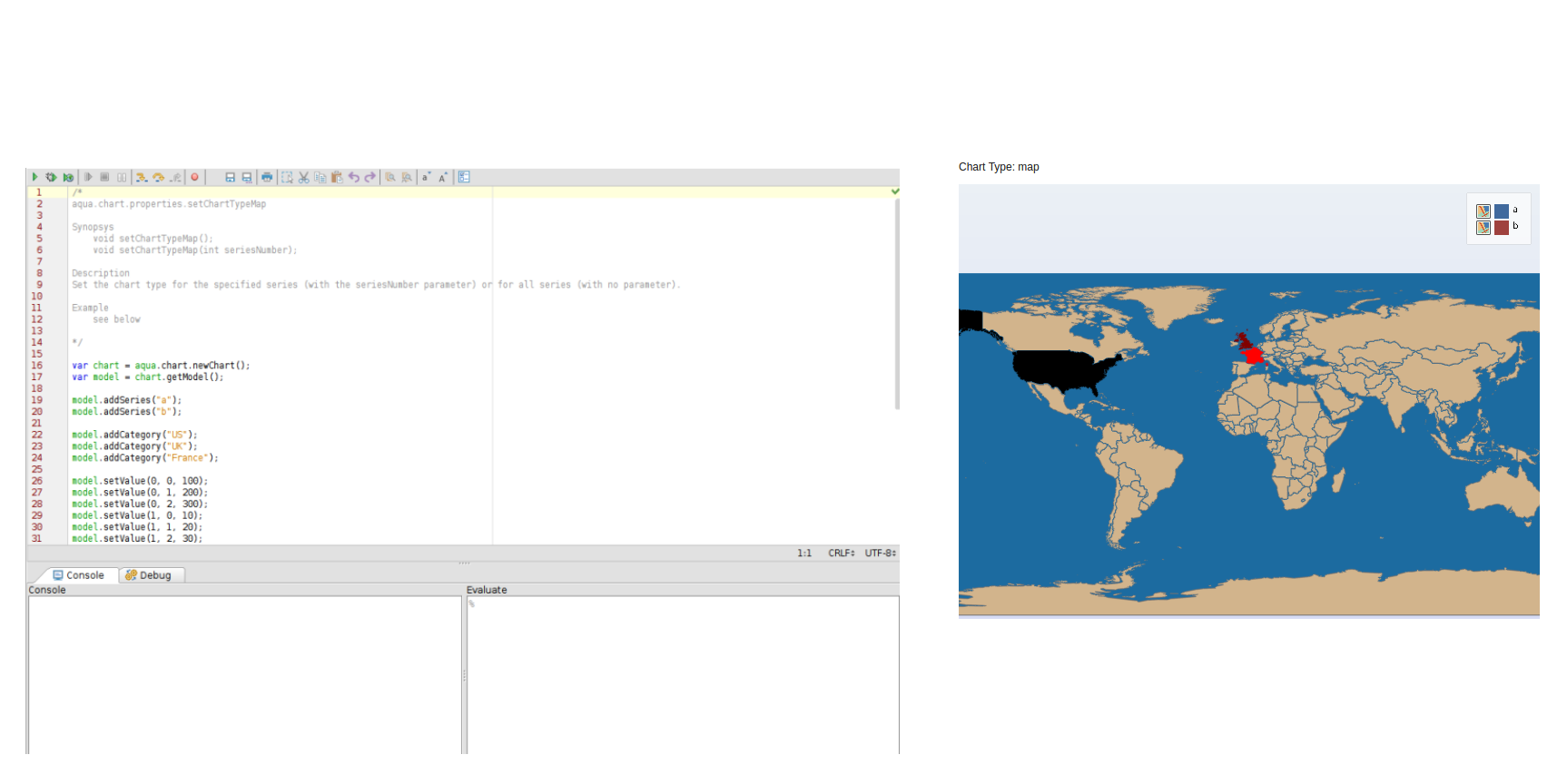

Please refer attached verified_13725.png
