#14769: Compare Results doesn't have option to including grid results from Procedure Editor and Debugger

NielsGron reported 2016-10-06T02:06:56Z · last modified 2016-10-19T16:12:49Z

Compare Results doesn't have option to including grid results from Procedure Editor and Debugger

Dev	tomconrad
QA	SachinPrakash

Priority	Low
Complexity	Unknown

Component	Tools - Compare - Results
Version	17.0

Compare Results doesn't have option to including grid results from Procedure Editor and Debugger.

In the Procedure Editor on the Grid Results I can choose the "Results Compare" and it will bring up the list of results, but the Grid Results from the Procedure Editor will not be listed.

In the Procedure Debugger on the Grid Results I can choose the "Results Compare" but it will not bring up a list of Grid Results.

3 attachments


2016-10-06T02:06:57Z

139 KB

2016-10-06T02:06:57Z

148 KB
IBM_DB2_UDB_SPROC.sql

2016-10-10T22:21:45Z

763 B

All Comments (6) Change History

SachinPrakash 2016-10-06T04:24:47Z

Start by looking at the constructor in ResultSetSelectionDialog

SachinPrakash 2016-10-06T13:50:02Z

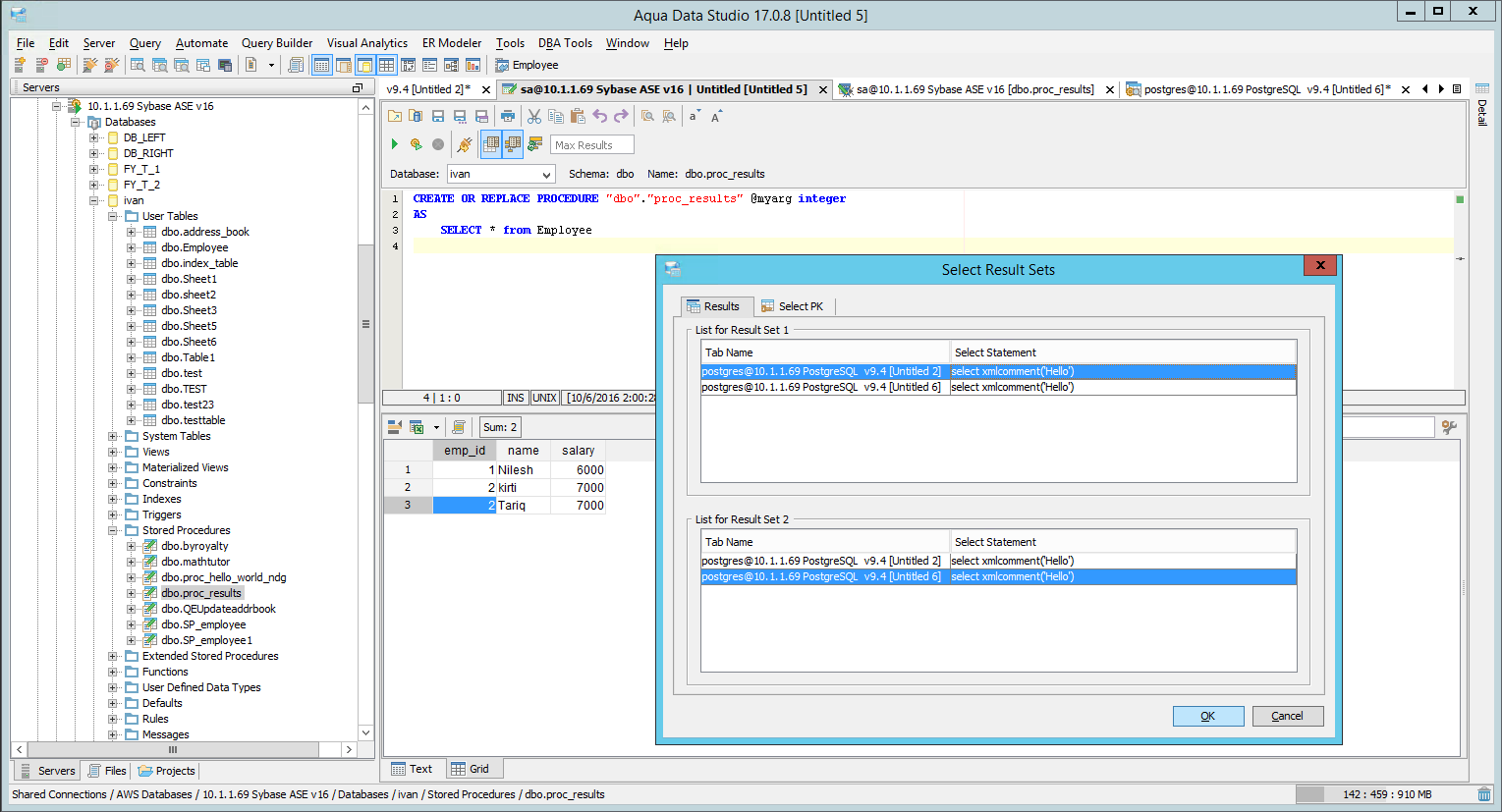

Scenario 1 : Procedure Editor Result Compare

1. Launch ADS and connect to SQL SERVER 2016 (or any other DB. Below SQL is for SQL Server DB).

2. Open Query Analyzer and execute following, script to create table and procedure.

CREATE TABLE "dbo"."ProductInventory1" (

"LocationID" int NOT NULL,

"p_name" varchar(25) NOT NULL,

"ProductId" int NOT NULL,

"Quantity" int NOT NULL,

"SysEndTime" datetime2 NOT NULL,

"SysStartTime" datetime2 NOT NULL,

CONSTRAINT "PK_ProductInventory1" PRIMARY KEY NONCLUSTERED("ProductId","LocationID")

)

INSERT INTO "dbo"."ProductInventory1"("LocationID", "p_name", "ProductId", "Quantity", "SysEndTime", "SysStartTime")

VALUES(102, 'Aquafold', 1, 100, '18991231 00:00:00.0', '20161006 11:12:12.917')

CREATE PROCEDURE "dbo"."uspGetAddress1"

SELECT * FROM dbo.ProductInventory

3. Open two Query Analyzer window and execute "Select * From" query on both query analyzer.

4. Go to Stored Procedure node and right click on "uspGetAddress1" Procedure and select option "Edit in Procedure Editor"

5. Execute Procedure in Editor.

6. In Grid Tab right click and select option 'Result Compare'

Result: In 'Select Result Set' window Procedure Editor tab is not displayed

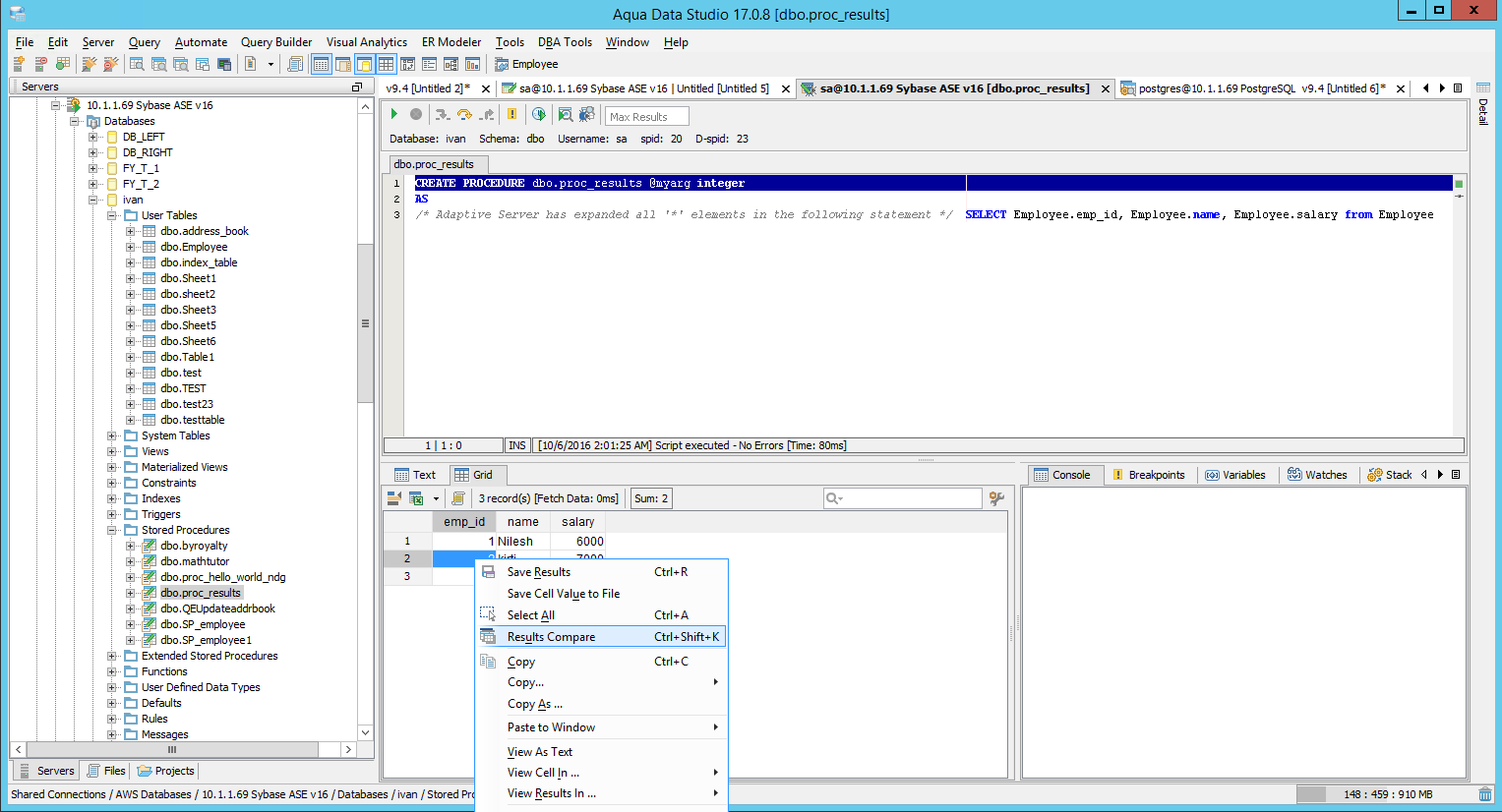

Scenario 2 : Procedure Debugger Result Compare

1. Refer scenario 1 up to step #3

2. Go to Stored Procedure node and right click on "uspGetAddress1" Procedure and select option "Debug in Procedure Debugger"

3. In Procedure Debugger click on 'Start' button

4. In Grid Tab right click and select option 'Result Compare'

Result : 'Select Result Set' window does not open.

SachinPrakash 2016-10-07T23:48:31Z

@tariq - to test:

- Edit in procedure editor

- debug in procedure editor

- Edit in package editor

- Debug in package editor

- enumerate all DBs tested & which objects

tariqrahiman 2016-10-10T22:23:04Z · (edited)

Tested in ADS v18.0.0-devi-259, the below Objects. For SQL Server and Sybase ASE, use the same scripts as in the issue description. For Oracle, DB2 UDB use the script attached

SQL Server 2014

----------------

Edit in Procedure Editor - Compare 2 Edit in Procedure Editors, 1 Edit in Procedure Editor and QA

Debug in Procedure Debugger

Script Object to Window -> Execute, Execute Bind

Sybase ASE 16, 15.7

-----------------

Edit in Procedure Editor - Compare 2 Edit in Procedure Editors, 1 Edit in Procedure Editor and QA

Debug in Procedure Debugger

Script Object to Window -> Execute, Execute Bind

IBM DB2 UDB (10.1.1.69)

-----------------------

@tom: Created a sproc named MEDIAN_RESULT_SET in the DB2ADMIN schema.

Edit in Procedure Editor - Compare 2 Edit in Procedure Editors, 1 Edit in Procedure Editor and QA

Script Object to Window -> Execute Bind

Oracle is remaining to test

tariqrahiman 2016-10-10T23:31:08Z · (edited)

Oracle -> Create the below table, insert a few rows and then create the package. Test Edit in Package Editor, Debug in Package Editor, Edit in Package Body Editor, Debug in package Body Editor.

Execute and open up Results compare against a Query Analyzer Grid Result.

CREATE TABLE FY_DT_1.EMP (

EMPNO NUMBER(4) NOT NULL,

ENAME VARCHAR2(10 CHAR) NULL,

JOB VARCHAR2(9 CHAR) NULL,

MGR NUMBER(4) NULL,

HIREDATE DATE NULL,

SAL NUMBER(7,2) NULL,

COMM NUMBER(7,2) NULL,

DEPTNO NUMBER(2) NULL,

CONSTRAINT PK_EMP PRIMARY KEY(EMPNO)

NOT DEFERRABLE

VALIDATE

)

=======================================

CREATE OR REPLACE PACKAGE GetEmpPckg IS

TYPE emp_ref_cursor IS REF CURSOR RETURN emp%ROWTYPE;

PROCEDURE GetEmp

(p_dep IN emp.deptno%TYPE,

p_ref OUT emp_ref_cursor);

END GetEmpPckg;

CREATE OR REPLACE PACKAGE BODY GetEmpPckg IS

PROCEDURE GetEmp

(p_dep IN emp.deptno%TYPE,

p_ref OUT emp_ref_cursor) IS

BEGIN

OPEN p_ref FOR

SELECT empno, ename, job, mgr, hiredate, sal, comm, deptno

FROM emp;

END;

END GetEmpPckg;

tariqrahiman 2016-10-10T22:42:39Z

Verified in ADS v17.0.9-7
