Observed on ADS 14-rc-8.

Would you please review the following procedure used to connect ADS to LDAP auth enabled HiveServer2?

Used a free LDAP service for testing available at  http://blog.stuartlewis.com/2008/07/07/test-ldap-service/

ldap.provider_url = ldap://ldap.testathon.net:389/

Login name : CN=john,OU=users,DC=testathon,DC=net

password : john

1) Attached is the hive-site.xml file used for configuring hiveserver2. Basically following properties were added to enable LDAP authentication.

..................

<property>
  <name>hive.server2.authentication</name>
  <value>LDAP</value>
</property>
<property>
  <name>hive.server2.authentication.ldap.url</name>
  <value>ldap://ldap.testathon.net:389</value>
</property>

..............

2) Hiveserver2 was started on mapR M3 VM using following command:

sudo /opt/mapr/hive/hive-0.11/bin/hive --service hiveserver2

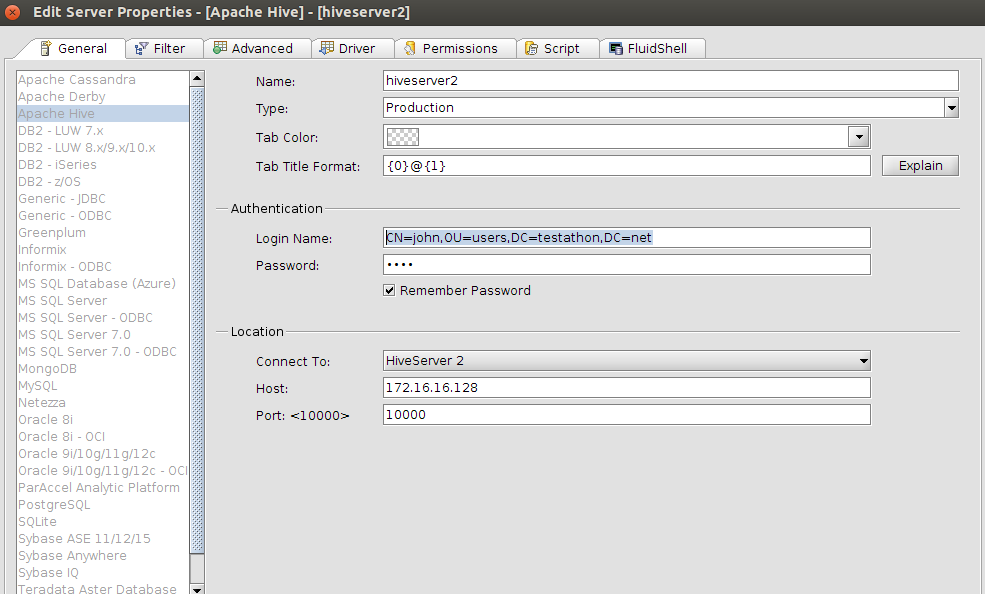

3) On ADS register server window, connection information was provided as in the screenshot ADS_hiveserver2_connect.png

4) Then executed some simple queries on the DB.

Thank you
