Fix is to include all jars files under <ADS installation>/lib folder in the classpath. Following command line scripts are affected:

1. datastudio-bundled.bat
2. datastudio-bundled.sh
3. datastudio-osx.sh
4. datastudio.bat
5. datastudio.sh
6. runfluidscript-bundled.bat
7. runfluidscript-bundled.sh
8. runfluidscript-osx-app.sh
9. runfluidscript-osx.sh
10. runfluidscript.bat
11. runfluidscript.sh
12. runscript-bundled.bat
13. runscript-bundled.sh
14. runscript-osx-app.sh
15. runscript-osx.sh
16. runscript.bat
17. runscript.sh

@QA,

We need to test this out on different platforms from which these scripts are used. A sample test case is as follows:

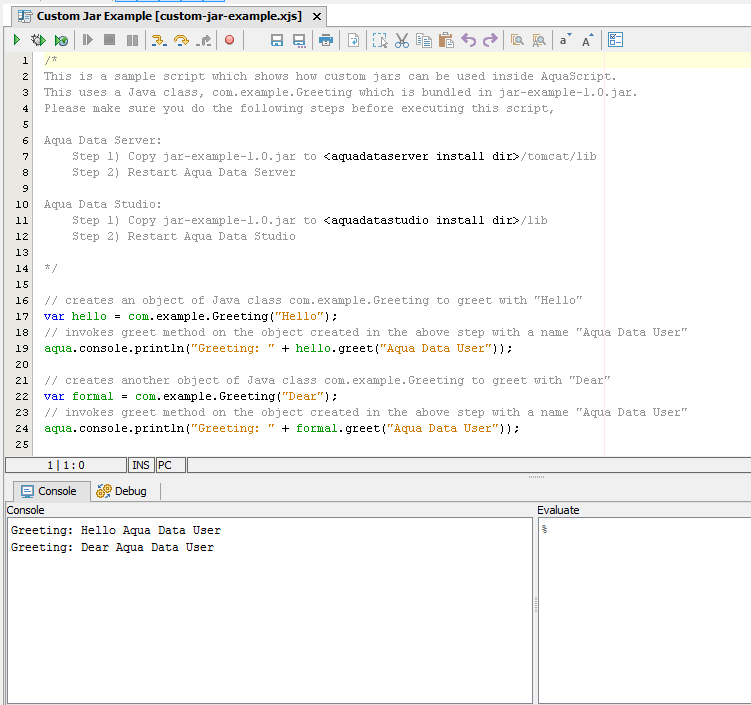

Step 1: Copy the custom jar as given in this example http://www.aquafold.com/aquaproject_solutions_examples.html#customjar

Step 2: Launch datastudio using (.sh or .bat) based on your platform

Step 3: Import the Custom Jar Example aquascript project

Step 4: Run the custom-jar-example.xjs file.

Result: Should be able to execute the xjs file without any errors.

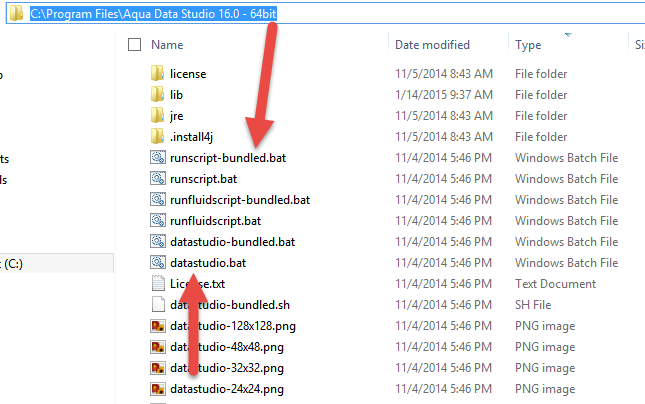

does this mean the attached screenshot is no longer valid in v16 ?

does this mean the attached screenshot is no longer valid in v16 ?

Yes, they are valid. Only the file contents of the above listed command scripts have changed. There is no change in the location of any of the script files.

Verified in Aqua Data Studio 16.0.0-alpha-12 and ADS 15.0.12-2 for both Linux and Windows environment.

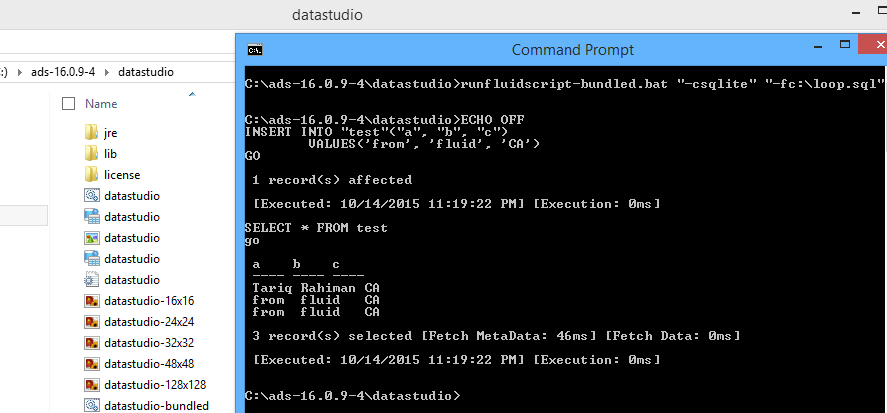

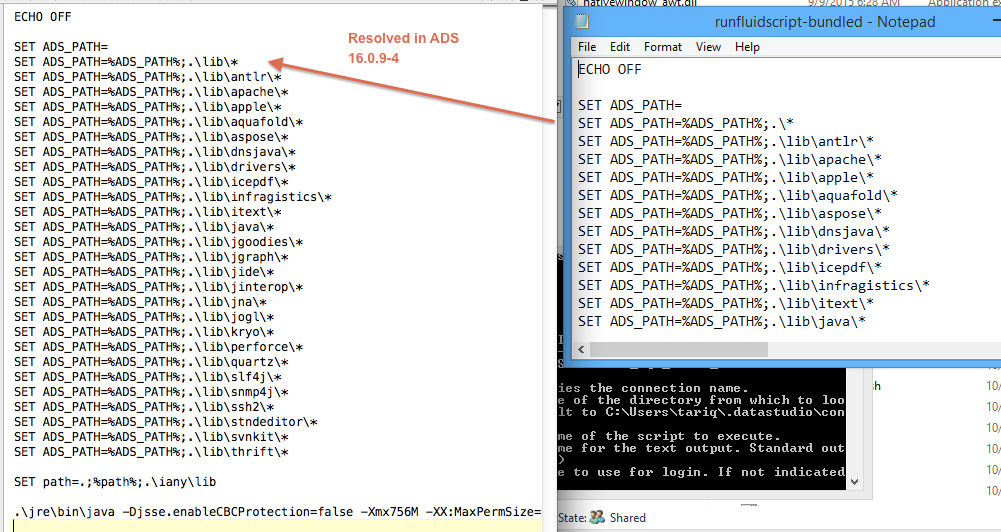

-- runfluidscript-bundled.bat > added missing "lib" in the path.

Fixed and is available in

• Trunk (v18) - ADS 18.0.0-dev-4
• Branch v16 - ADS 16.0.9-4
• Branch v17- ADS 17.0.0-rc-14

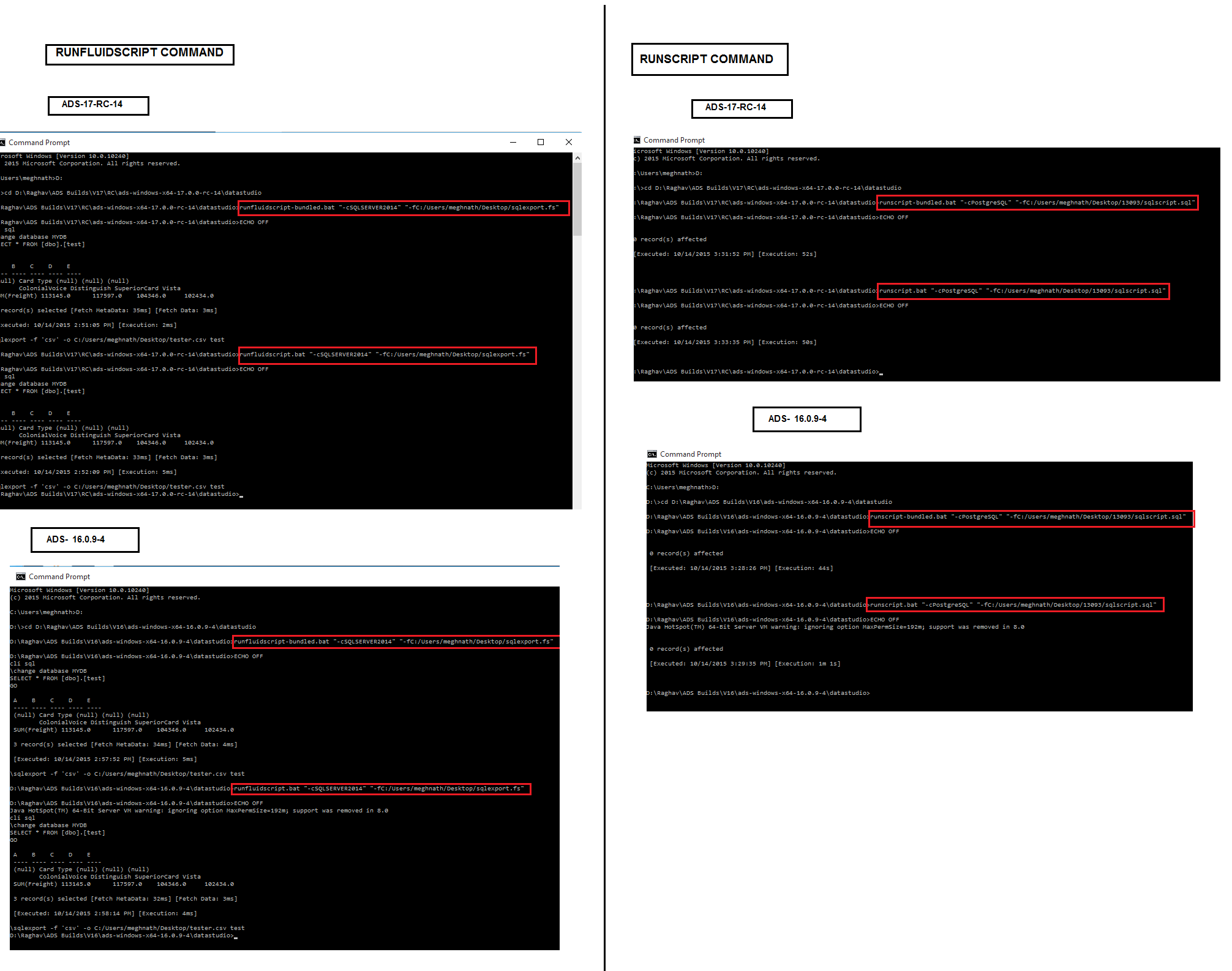

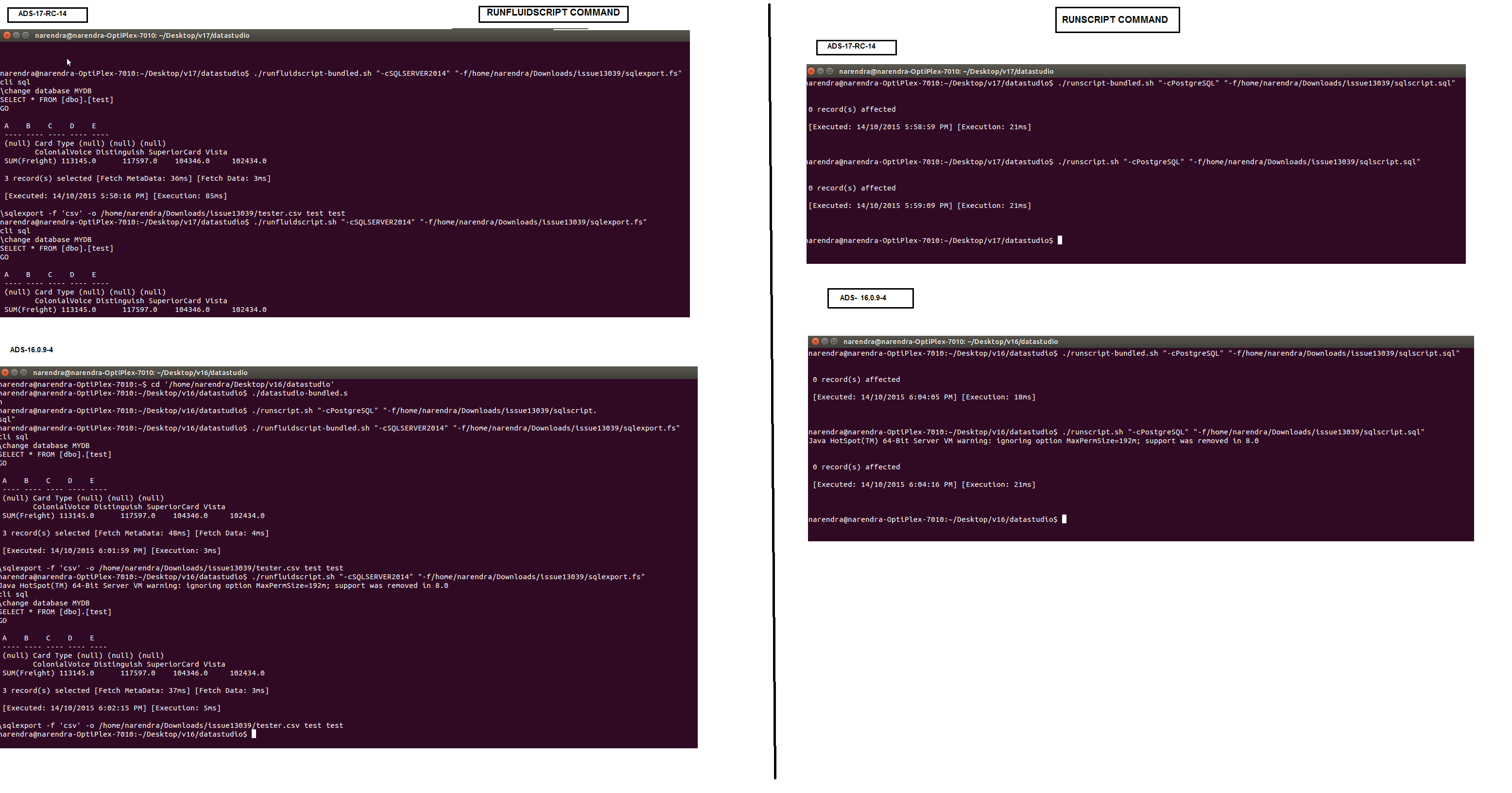

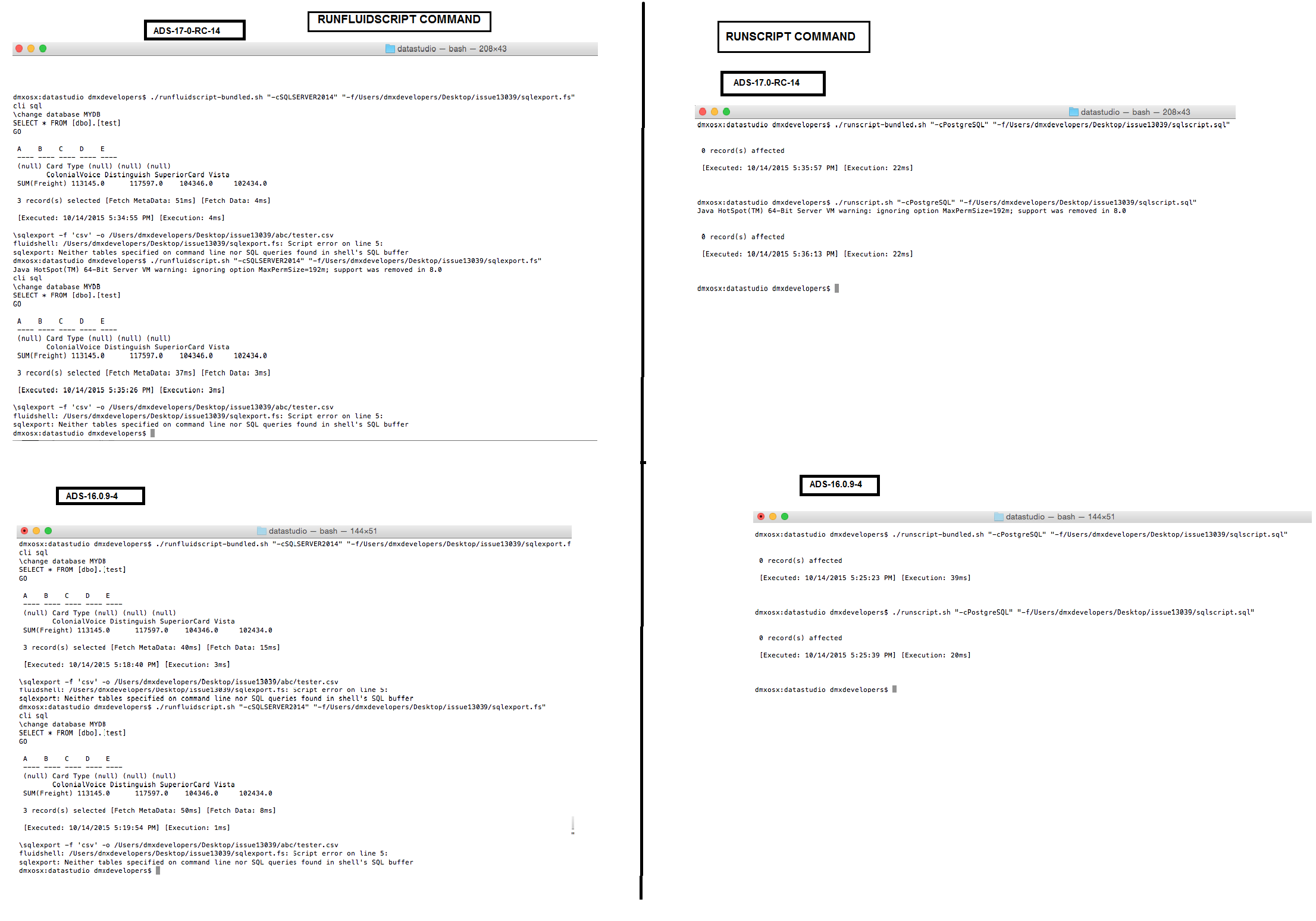

Verified in ADS 16.0.9-4 and ADS 17.0-RC-14 for Window,Linux and OSX. Please refer 13039_Linux.png, 13039_MAC.png and 13039_Windows.png screenshots and also refer "steps for 13039" text file.

Verified in ADS 16.0.9-4 and ADS 17.0-RC-14
