Launching the Directory Compare Tool

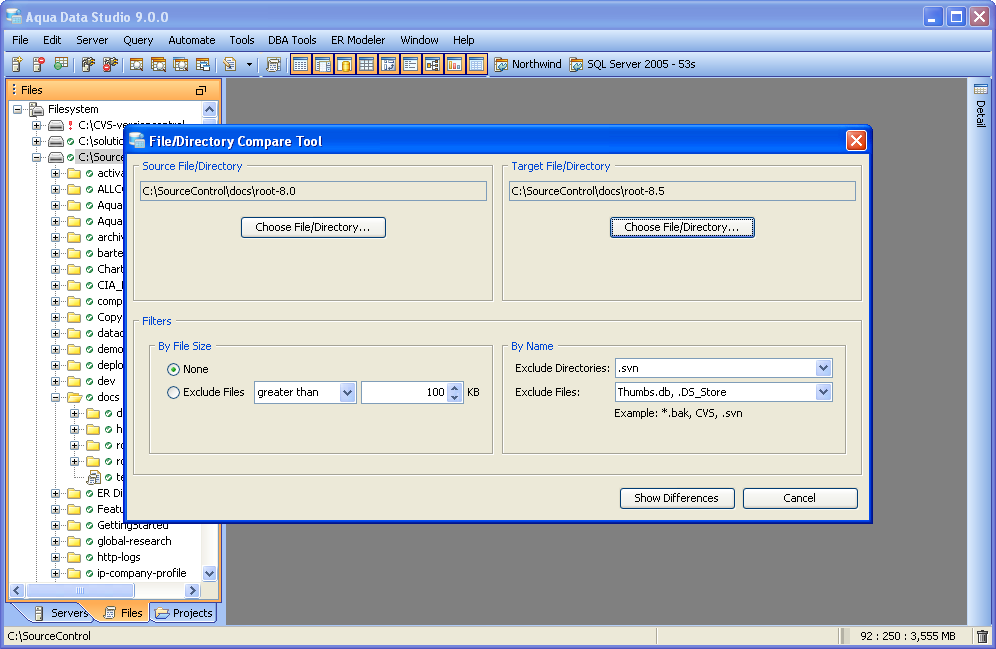

The Directory Compare Tool provides users a method of depicting differences in the content of directories. To compare two directories, either multi-select individual directories in the Files Browser from mounted directories, or launch the Directory Compare Tool from Tools Menu (Tools->Compare->Directory Compare) and browse to them. If the Directory Compare Tool is launched from the Tools Menu, it is possible to choose directories that are not listed in the Files Browser, but are available to the operating system. It is also possible to drag items into the application from the operating and drop them off on the Directory Compare Tool selection window. Filters to exclude files by file size, name, directory, or file extension can be selected before the comparison is run using the "Show Differences" button. The Directory Compare Tool keeps the last directories selected when the application is restarted and the Directory Compare Tool is relaunched.
When the comparison is being performed the status bar indicates its progress and runs in a background thread so that other operations in Aqua Data Studio can be performed.

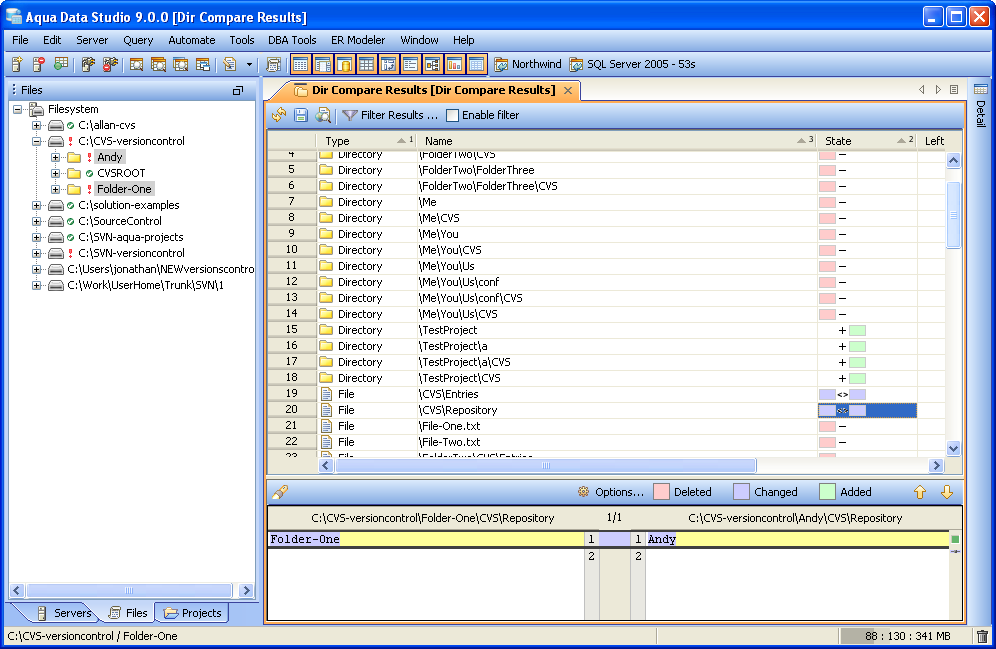

The results of a comparison display as a split-pane with line numbering down the center and connecting splines for identifying where the deletions, changes and additions occur. Each file in a comparison takes up half of the comparison results window and each can be vertically scrolled independently of the other. At the top, between the two files above the line numbering, digits separated by a / indicate the difference selected out of total number of differences discovered (i.e. 9/27). The large up and down arrows at the top of the comparison results allow navigating through the differences one at a time. Comparisons show the character differences in a modified line with bolding and background color highlights indicate modified blocks.
The file and directory listing for a resulting comparison has columns for type, name, state, left file size, right file size and difference count. These columns can be sorted one at a time by Ctrl +click on column headers. Their position left to right can be reorganized by dragging them into new positions.
When a particular item in the comparison results is selected, details about its differences are displayed in the preview panel at the bottom. If they are not identical they are highlighted by default in pink (deleted), purple (changed) or green (added). The colors for the difference highlighting can be changed with the Options button at the top right of the comparison results Preview Panel.
The Search button at the top left of the comparison results Preview Panel is useful for finding and highlighting specific content in the item selected in the comparison results.
The annotation bar provides a bird's eye view of all of the differences detected in a comparison. When differences are found, their corresponding highlight colors appear in the annotation bar on the right side of the results and can be used to quickly navigate to them. If a marker in the annotation bar is used to navigate to a particular difference by left clicking, a tick mark overlay shows which difference currently has focus.
Once the comparison is complete, it can be refreshed, allowing the same comparison to be run again. It is also possible to select two new files for comparison by clicking the "Browse" buttons at the top of the comparison results without having to launch the Compare Tools Menu again.

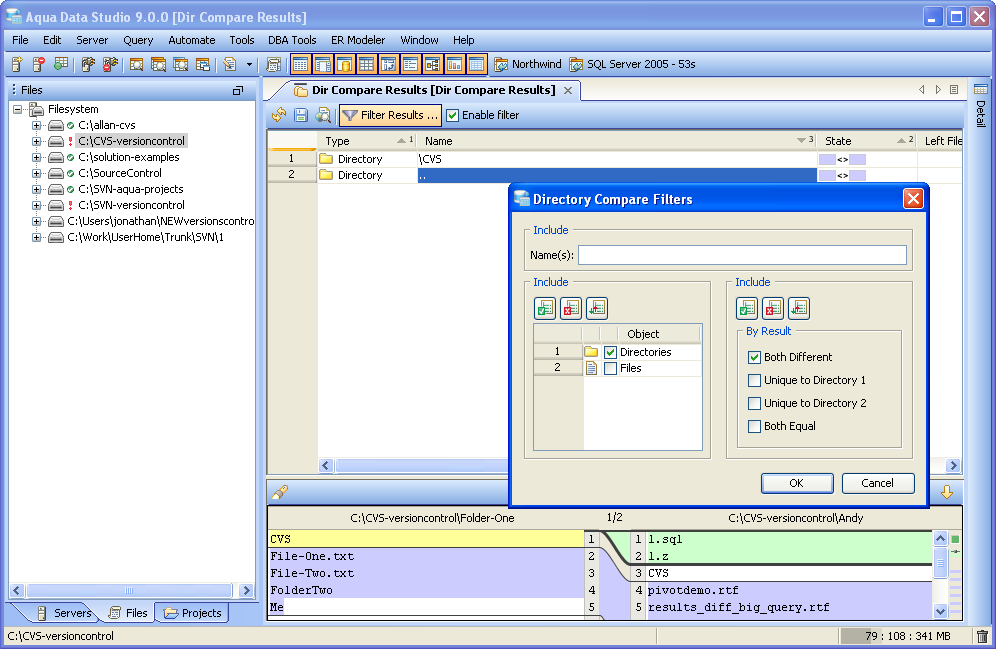

When the "Enable Filters" checkbox is checked filters can be run on the existing comparison to help locate specific differences. The "Filter Results" button launches the Filters dialog, and the checkbox next to it runs those filters on the current comparison. Object Types of directory or file can be filtered within the Filter dialog for names and wildcards. If all that is needed is a viewing of the files which are different, checking "Directories" (to exclude directories in the comparison) and checking "Both Different" will show only those files that are different in both directories. Directories or Files or both can be filtered for when:
Saving Comparison Results as HTML

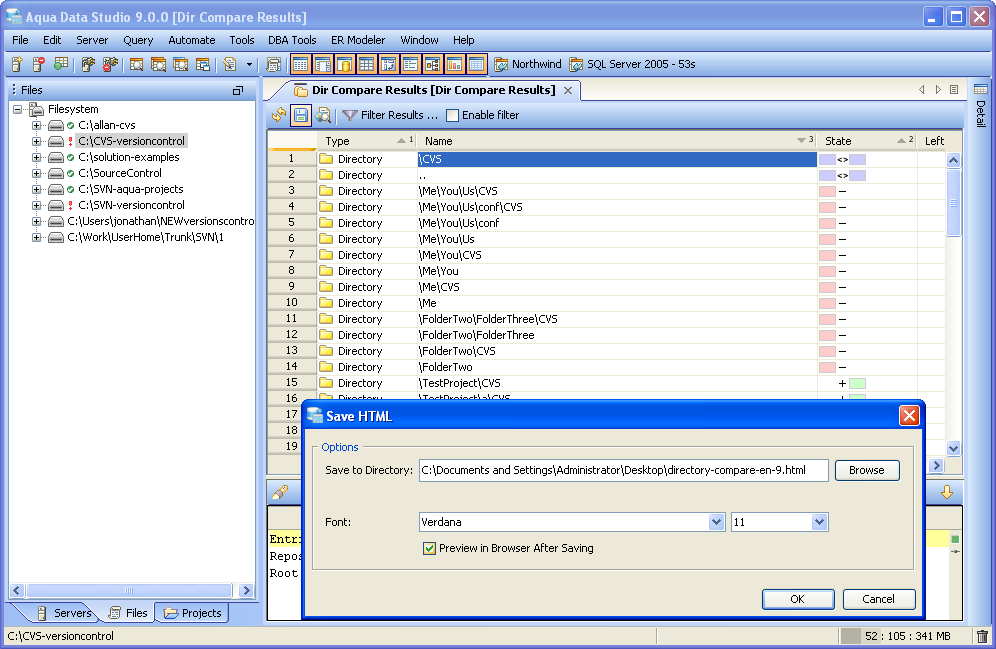

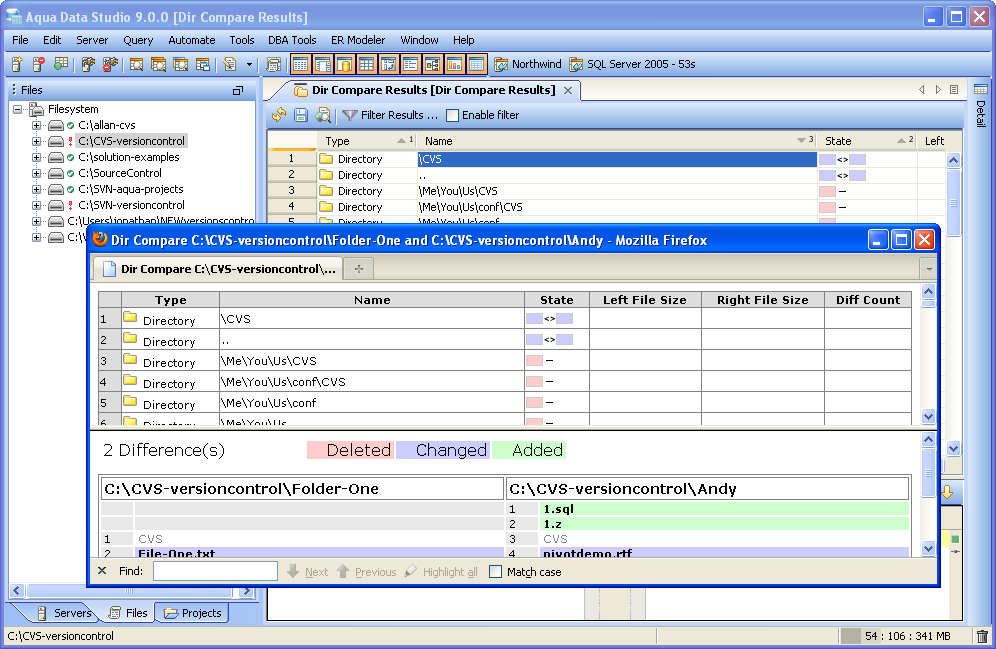

The results of a comparison can be saved as HTML for viewing later or for sharing with others. The "Save As HTML" button at the top left of the comparison window prompts for file destination and font selection. If the "Preview in Browser" icon is clicked the user is prompted to first "Save as HTML" for launching a web browser. If the comparison has already been saved as HTML, clicking "Preview in Browser" launches a browser with the stored HTML.
