#15159: The list of tables disappears from Target Schema on using 'Edit Compare' in schema compare window

vaibgoyal reported 2017-04-14T13:11:19Z · last modified 2017-04-25T18:56:52Z

The list of tables disappears from Target Schema on using 'Edit Compare' in schema compare window

Dev	funfun
QA	SachinPrakash

Priority	Major
Complexity	Unknown

Component	Tools - Compare - Schema
Version	18.0

Product: Aqua Data Studio

Version: 19.0.0-dev-21

Build #: 53944

Build Date: 2017-Apr-13 04:52:36 PM

Operating Environment: Linux (4.4.0-72-generic, amd64) / UTF-8 / en / IN / Oracle Corporation 1.8.0_102-b14

Memory: Max=704,643,072; Total=612,368,384; Free=431,631,904; CPUs=8

Steps to reproduce:

Launch ADS v19.0.0-dev-21
Connect to any DB > Select to schema/Database from Schema browser which has 5-10 tables in each schema.
Right Click on selected schema > Select 'Schema Compare' > 'Schema compare tool' window opens
Check on 'Tables' from 'Schema Objects' > Observe List of tables is displayed > select only 1 table from both source & target schema.
click 'Compare' button > 'Schema Compare Results' opens up.
Click on 'Refresh' icon on top left on 'schema compare' tab > After refresh, click on 'Edit Compare' button available right next to refresh icon.
Click 'Yes' on 'Edit Compare' pop-up window.
Schema Compare Tool window opens again > Observe the list of tables on Source & Target schema.

Actual Result: The list of tables disappeared on clicking on 'edit compare' button after refreshing the schema compare results.

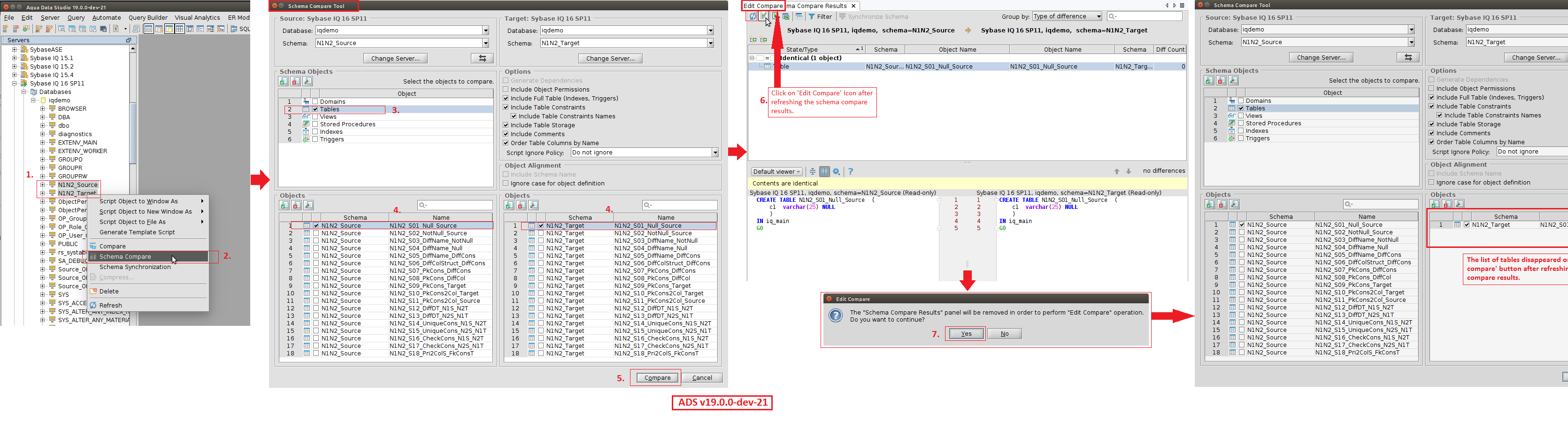

[Please refer to the attached screenshot and 'Sample script'.]

Expected Result: The list of tables should not disappears on clicking on 'edit compare' icon after refreshing the schema compare result.

Observations:

This issue is observed in all three OS.
'Edit Compare' icon is introduced on issue #15074

ADS Builds	Schema Compare
ADS Builds	Linux OS
[Latest Build] ADS v19.0.0-dev-21	Issue is observed.
[Broken Build] ADS v18.0.4-3 ('Edit Compare' button introduced)	Issue is observed.

3 attachments

Sample Script.sql

2017-04-14T13:11:20Z

3 KB

2017-04-14T13:11:20Z

357 KB

2017-04-25T09:44:02Z

228 KB

All Comments (3) Change History

funfun 2017-04-21T04:36:36Z

V18 branch: SVN r54026/ADS 18.0.9-4
Trunk: SVN r54027/ADS 19.0.0-dev-26

On Refresh, target objects that are not selected in Schema Compare dialog will be removed from the model object, see VA #5399 for details. This is why unselected target objects are not listed in the Schema Compare dialog launched via Edit Compare button.

I made change to not remove unselected target objects from the model object on Refresh so that those unselected objects will be displayed in the Schema Compare dialog launched by Edit Compare button.

Please note that unselected objects will never show up in Schema Compare Results panel. Also note that user can manually add/delete objects to/from server, these objects should be handled by refresh operation and reflected in Schema Compare dialog launched by Edit Compare button.

nareshnasha(*) 2017-04-25T09:45:17Z

Verified in ADS 19 dev-27 and ADS 18.0.9-4

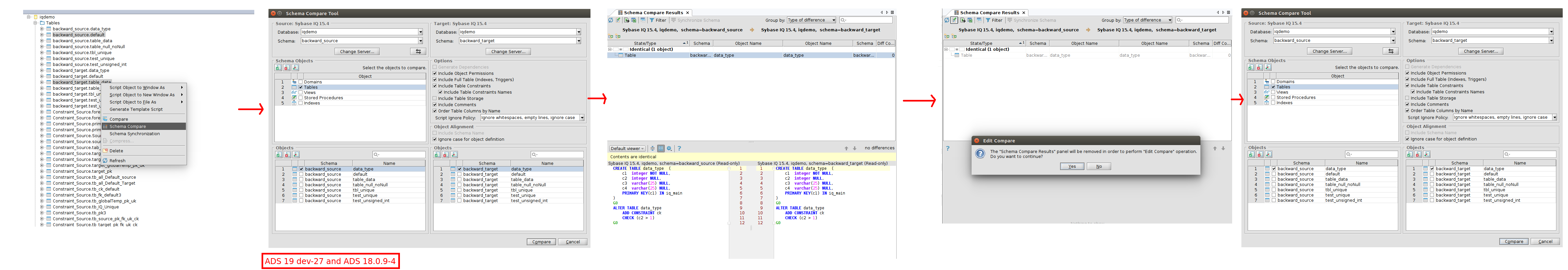

Please see attached verified_15159.png

tariqrahiman 2017-04-25T18:56:52Z

Verified in ADS v18.0.9-4 and 19.0.0-dev-27
