ER Modeler Demo

Creating a New ER Model Manually

Below is a step by step demonstration of an ER Model being created with tables, relationships, constraints and indexes. The model is then used to generate the DDL for importing into a database.

Create an ER Model and Add a Table

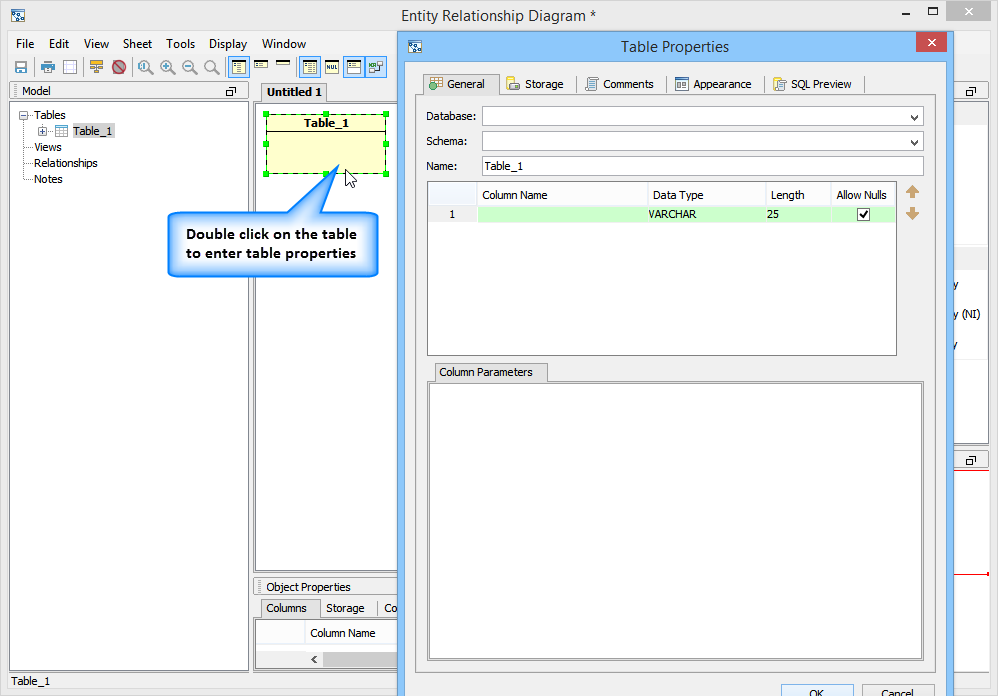

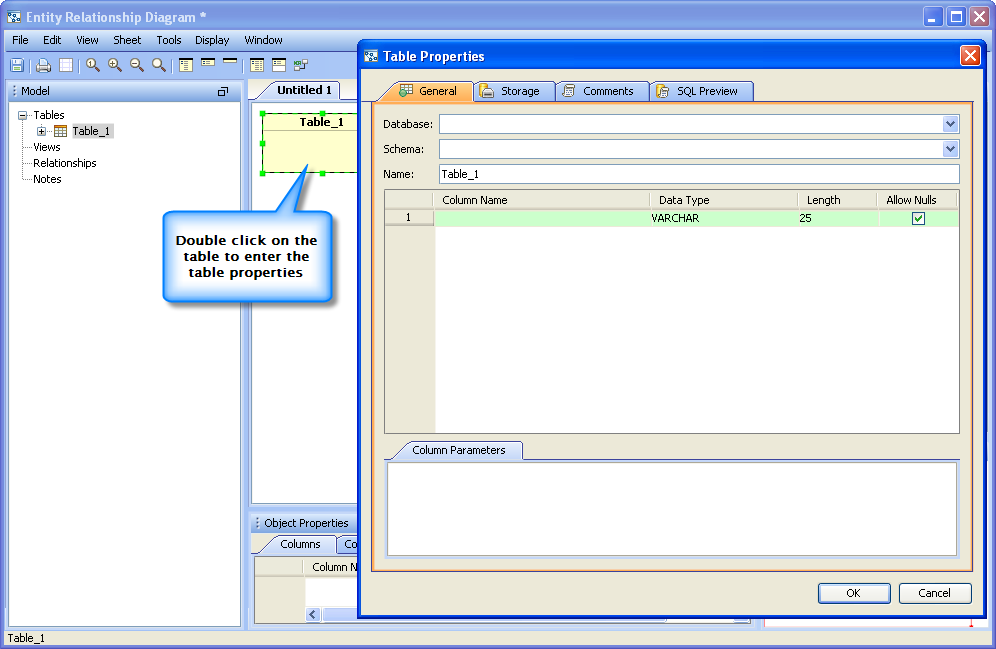

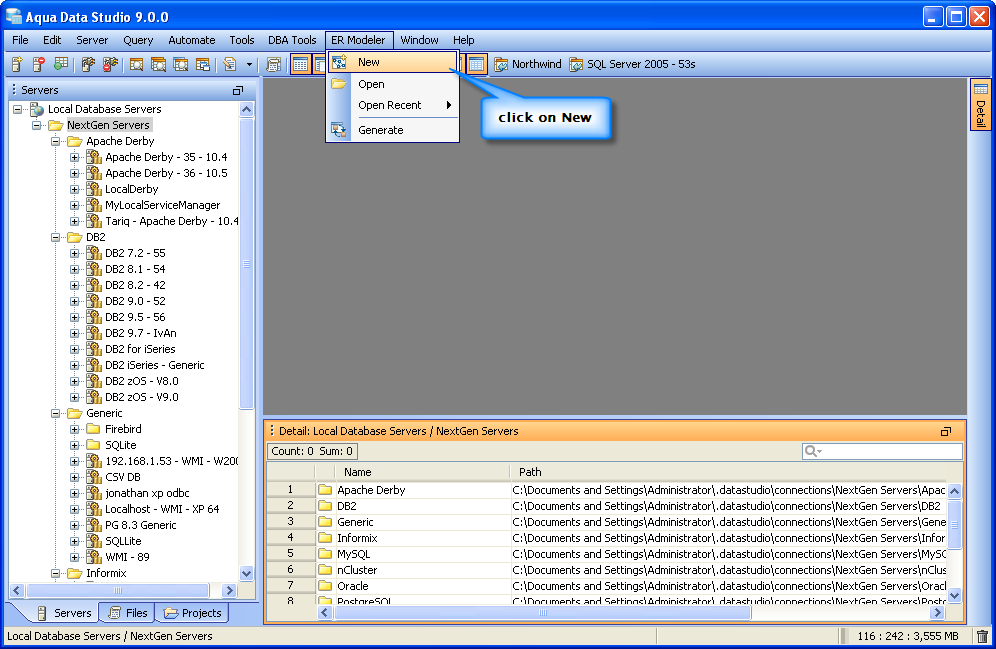

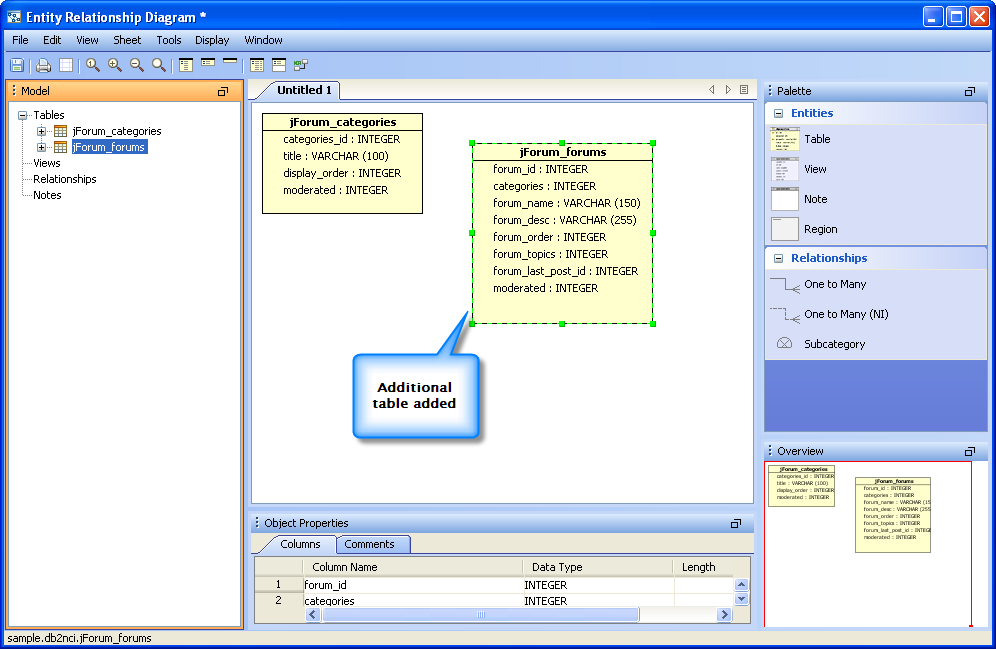

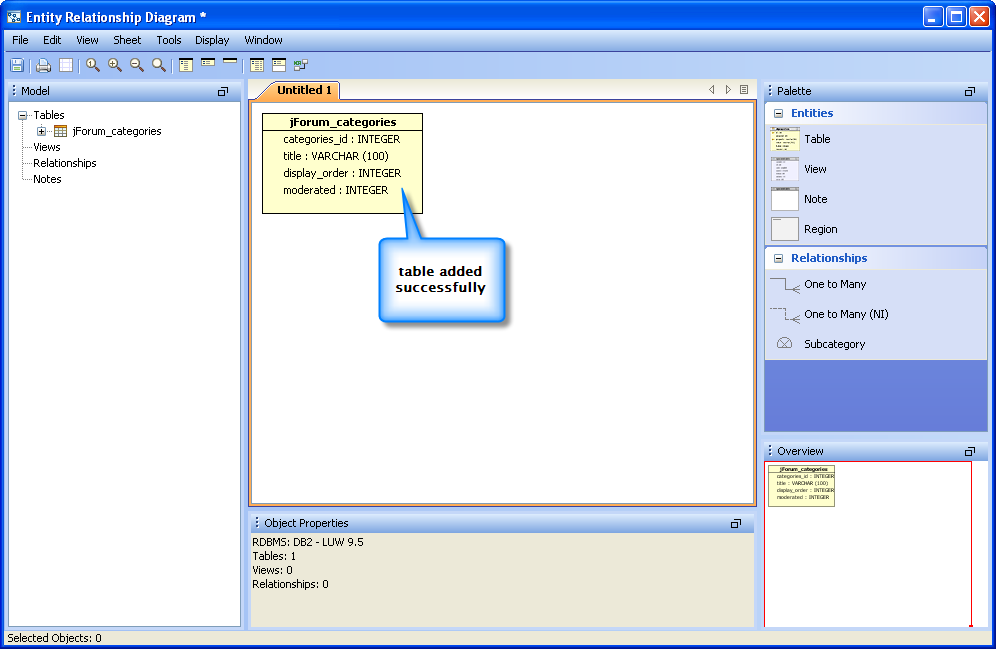

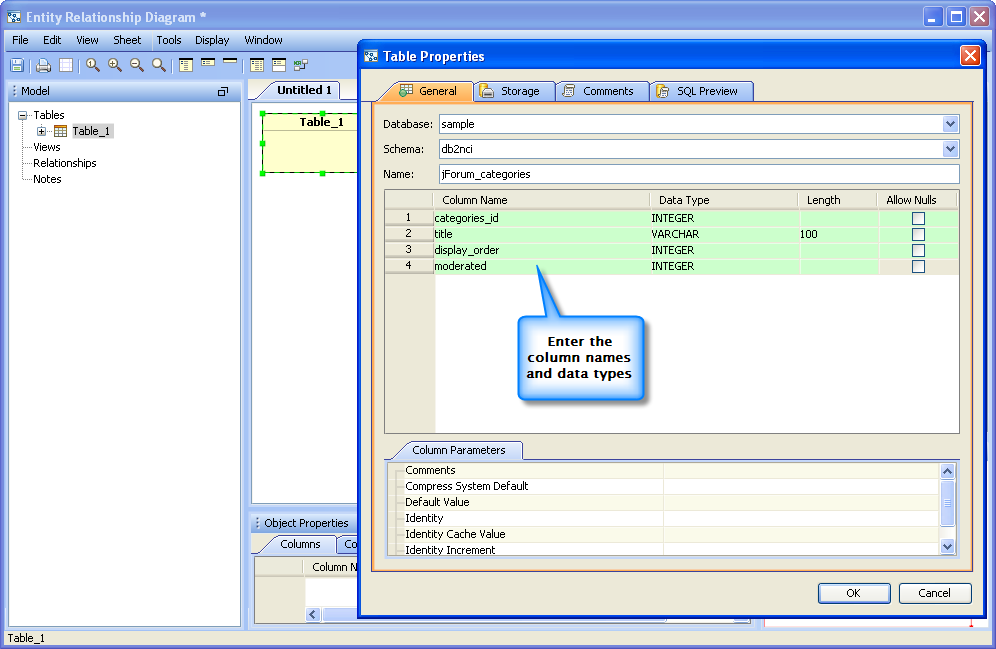

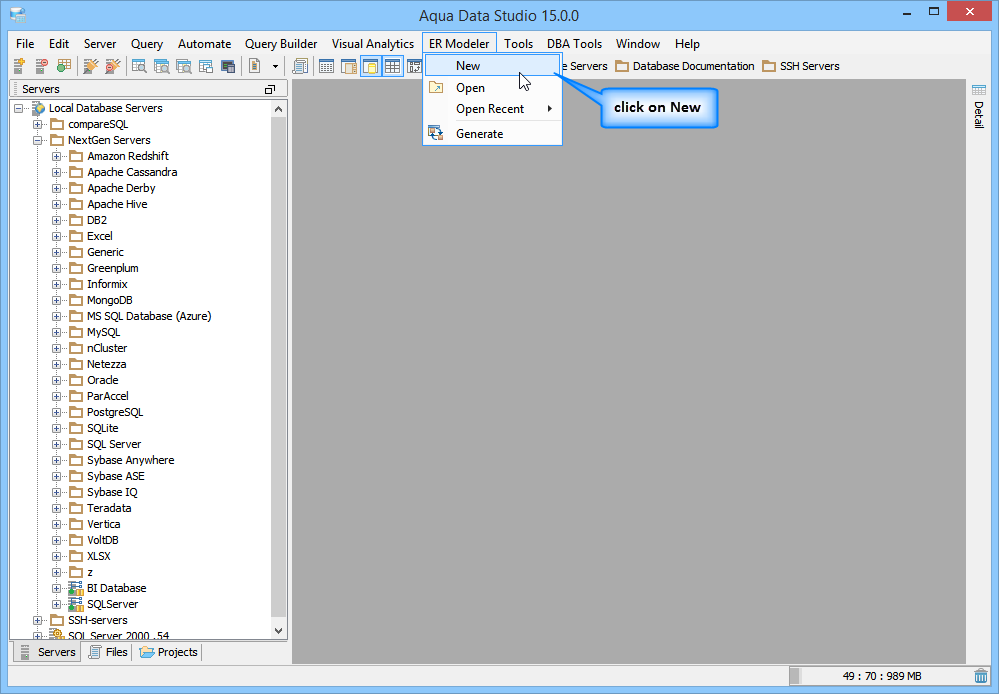

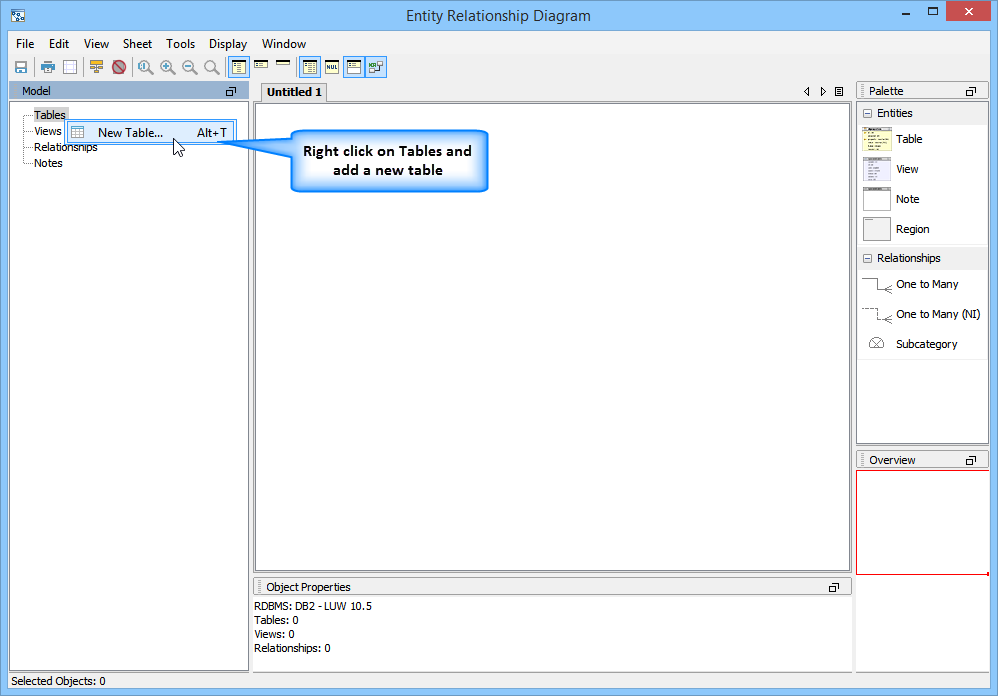

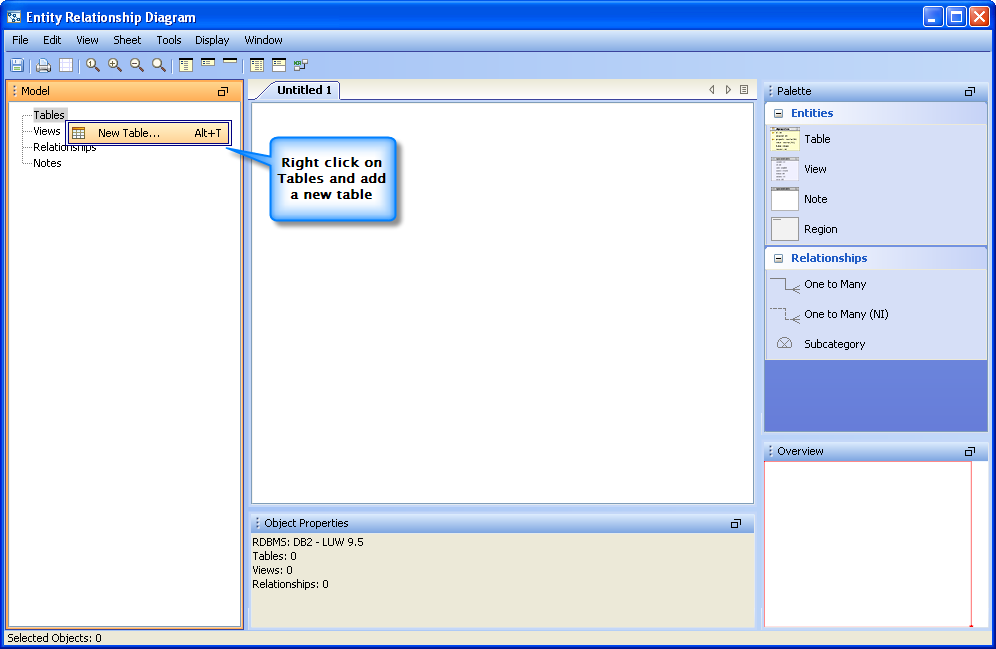

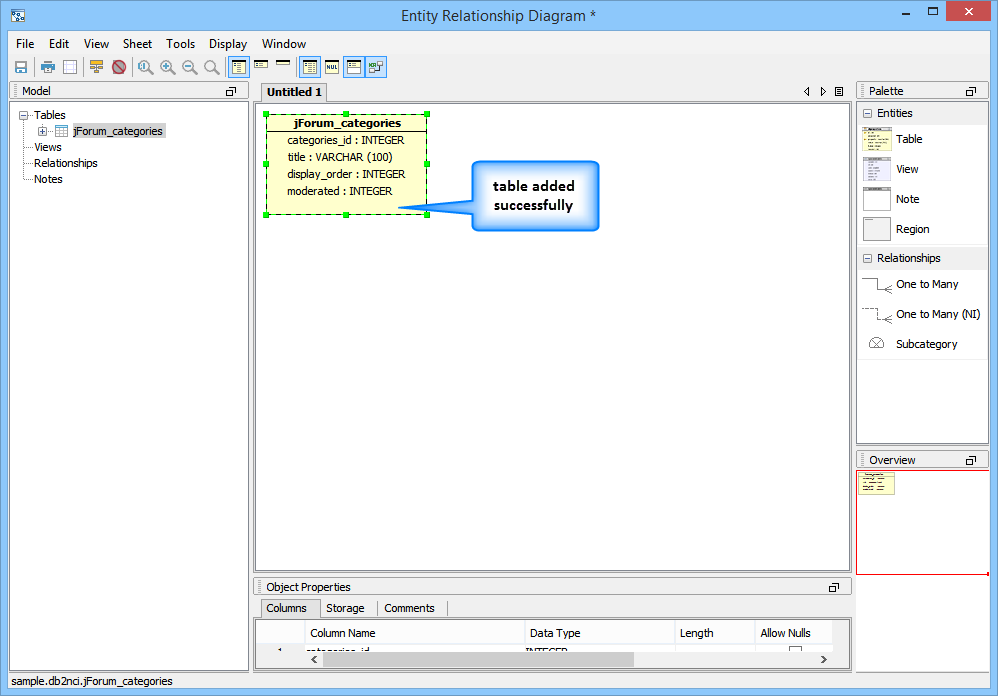

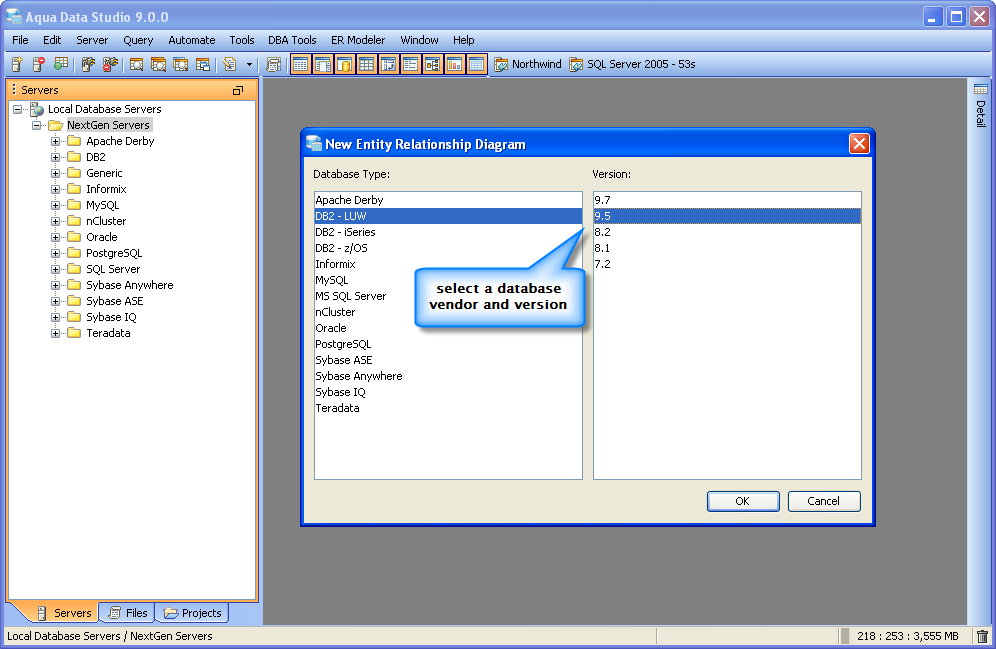

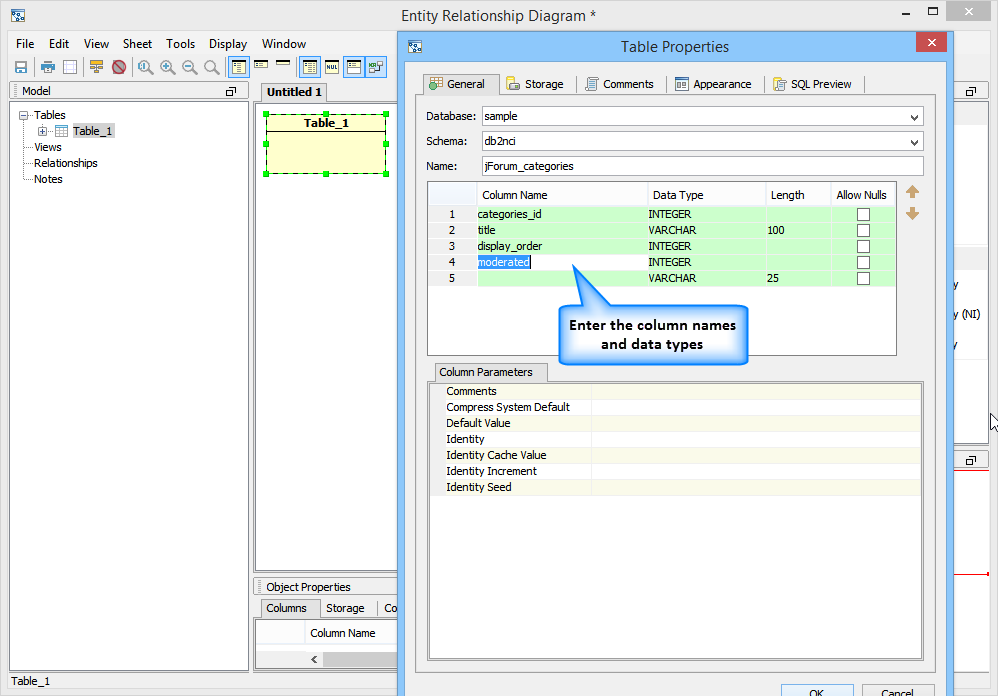

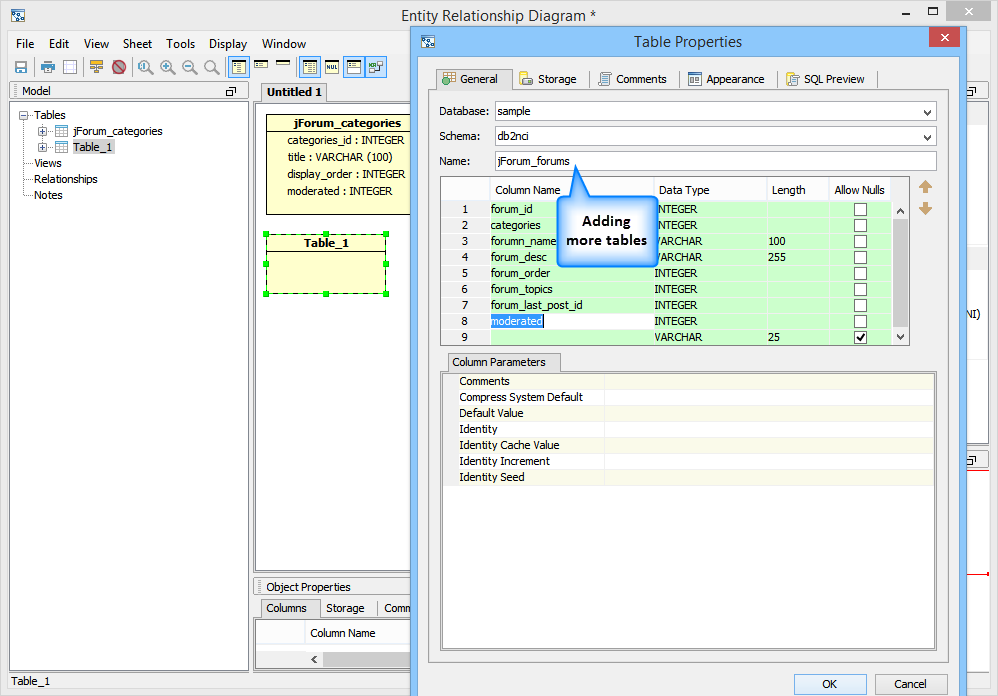

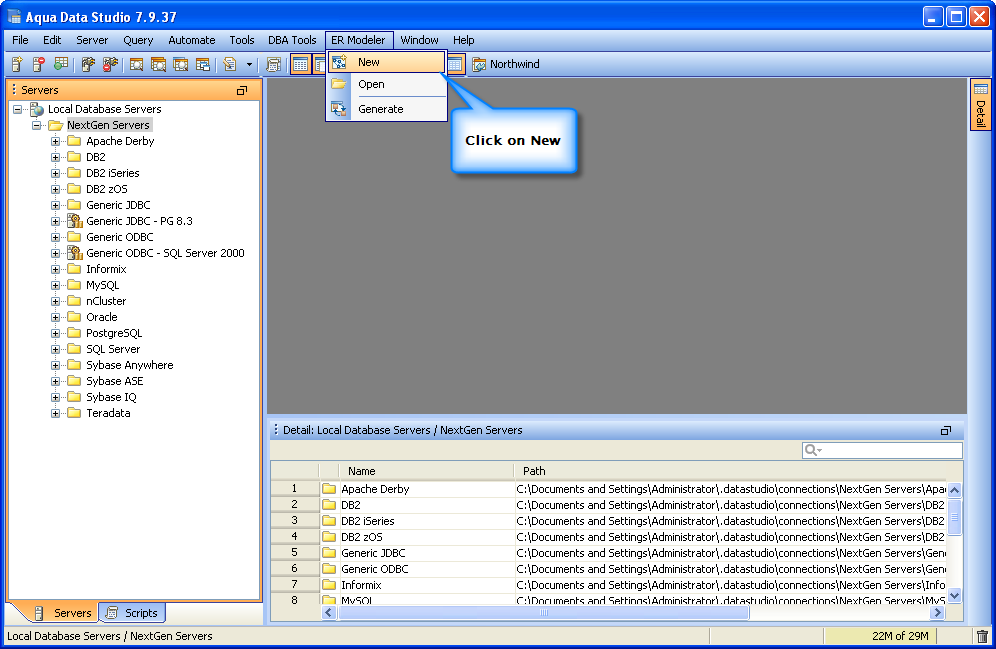

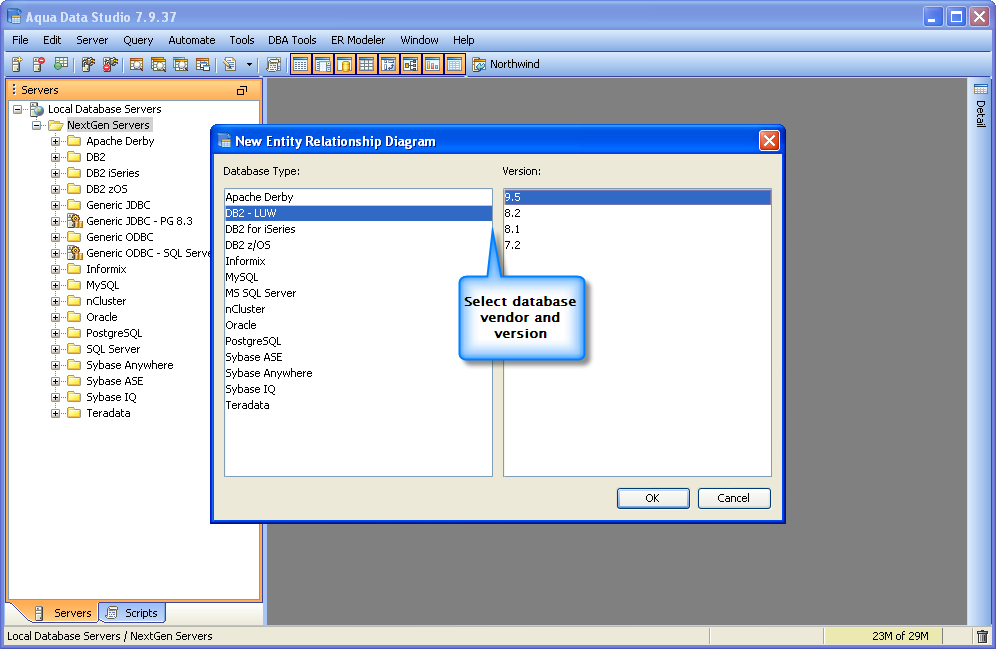

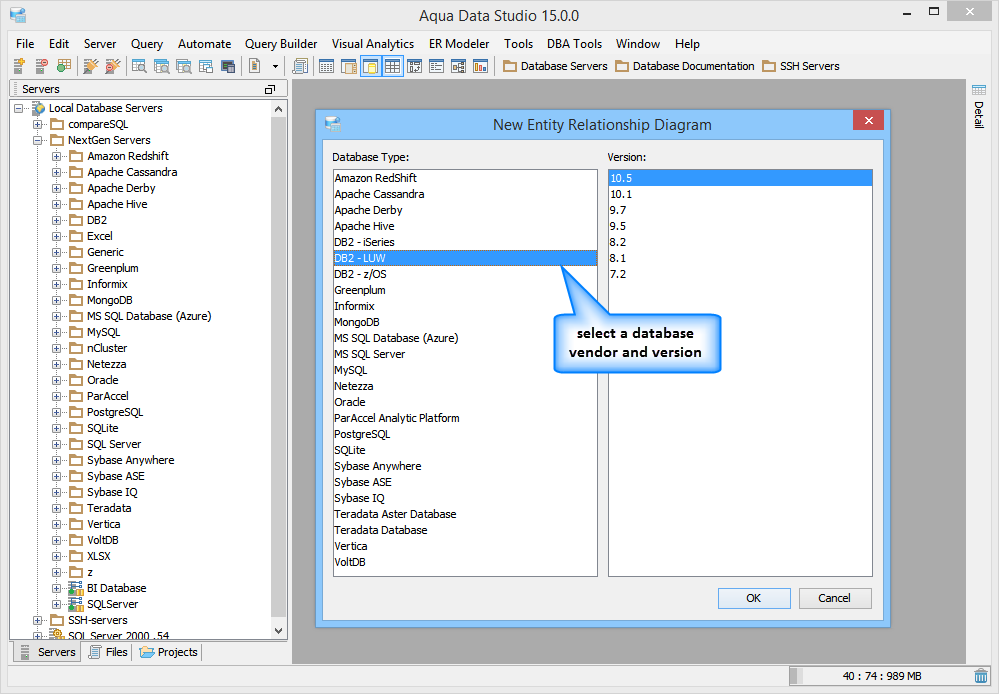

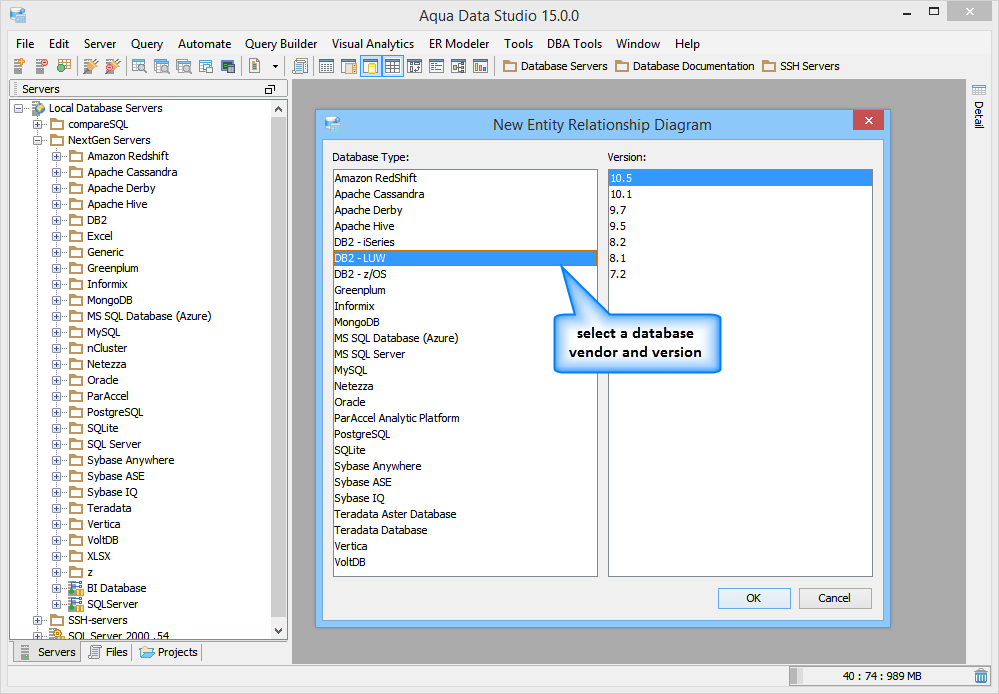

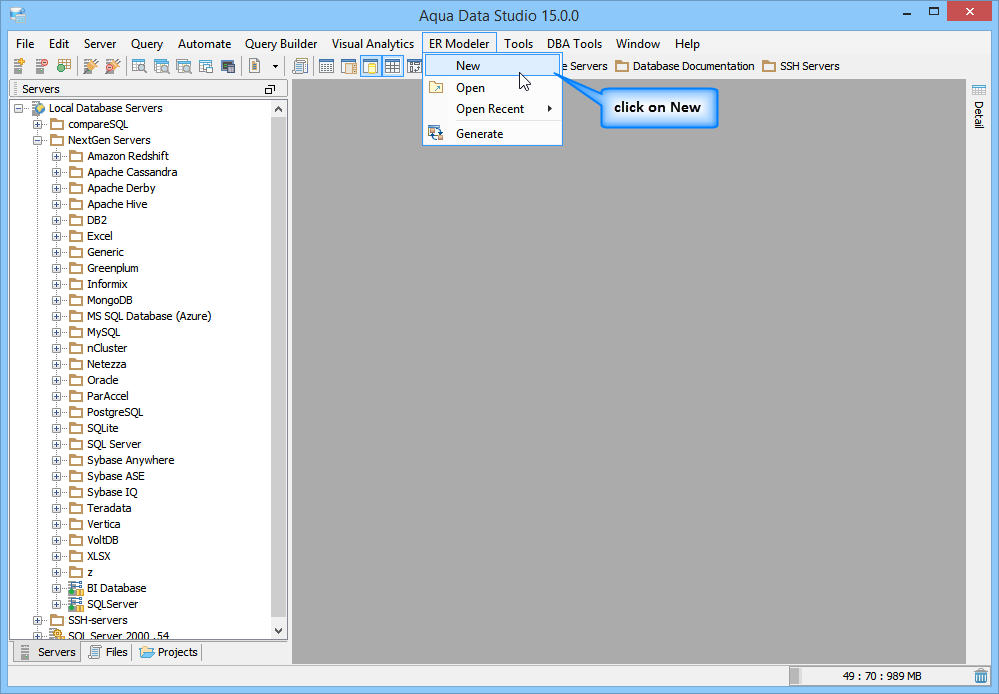

1. Select New Model	2. Select Vendor	3. Create New Table	4. Double click on Table	5. Set Table Properties	6. Table Added	7. Add More Tables

Create Relationships

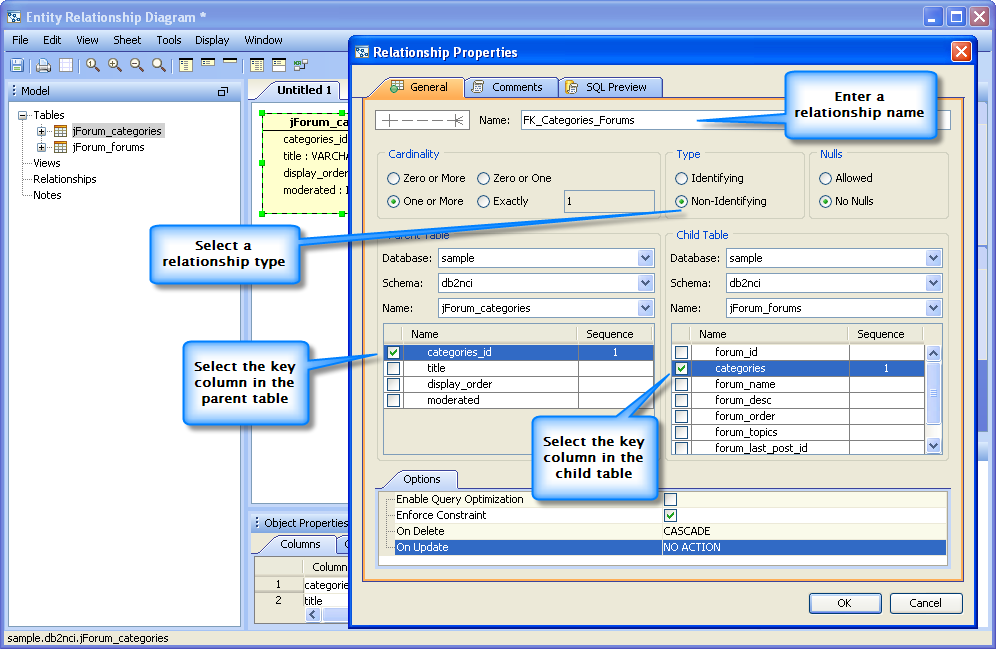

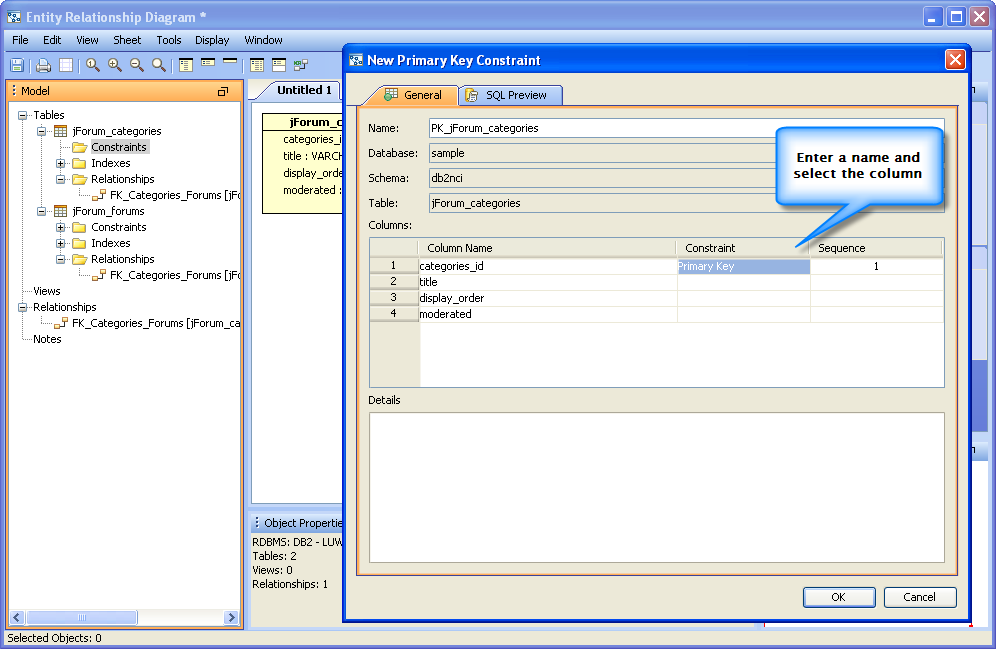

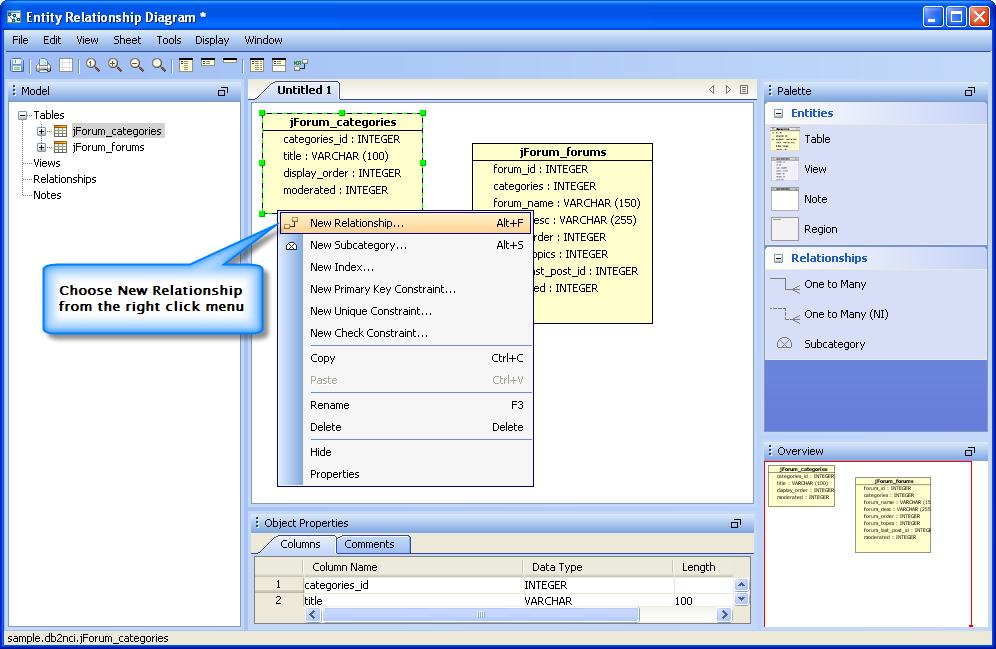

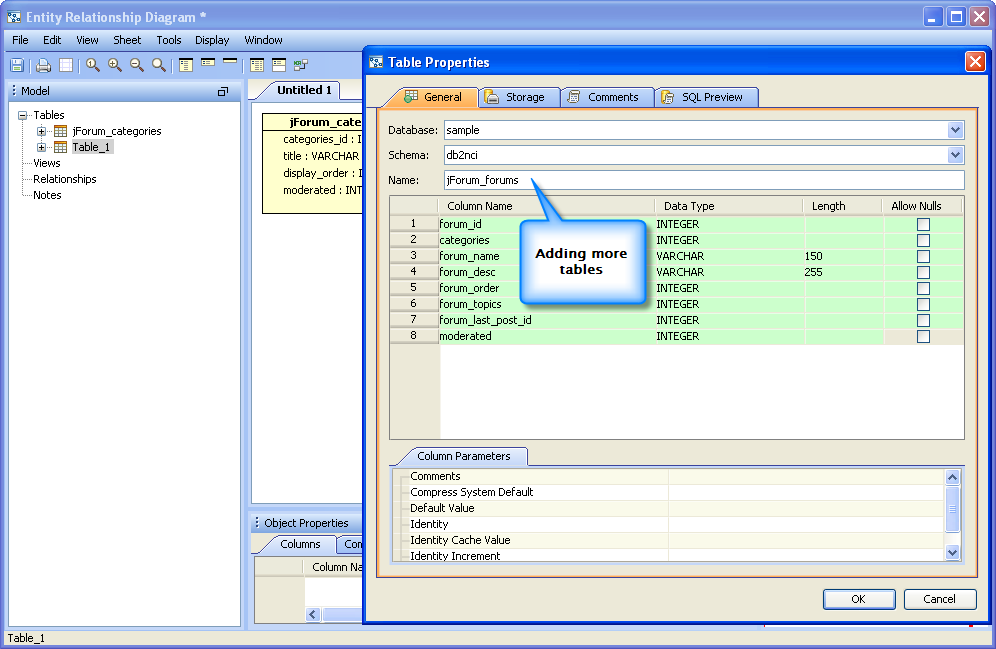

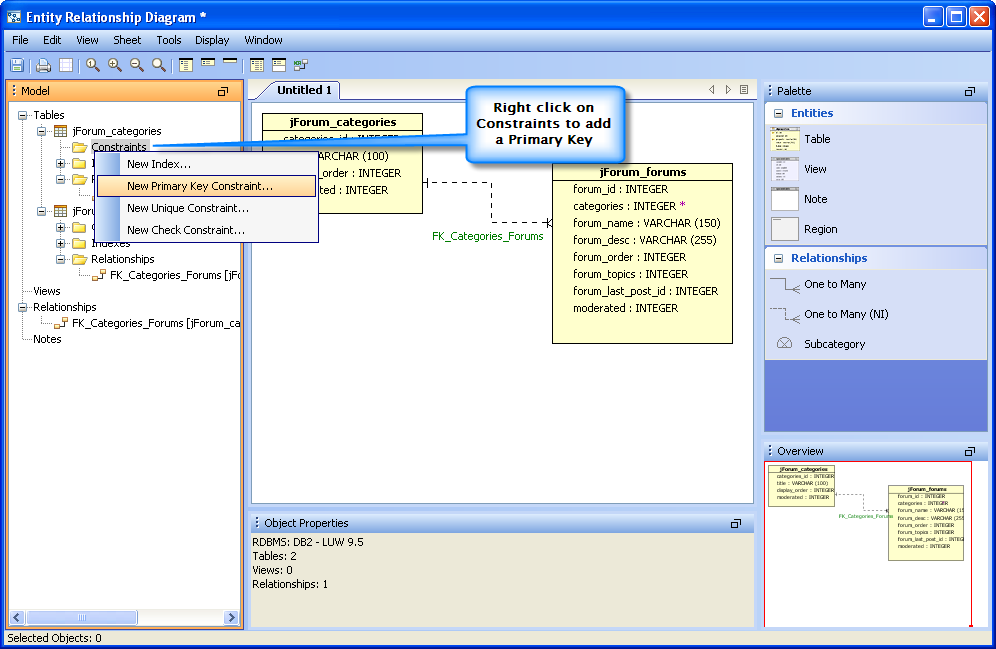

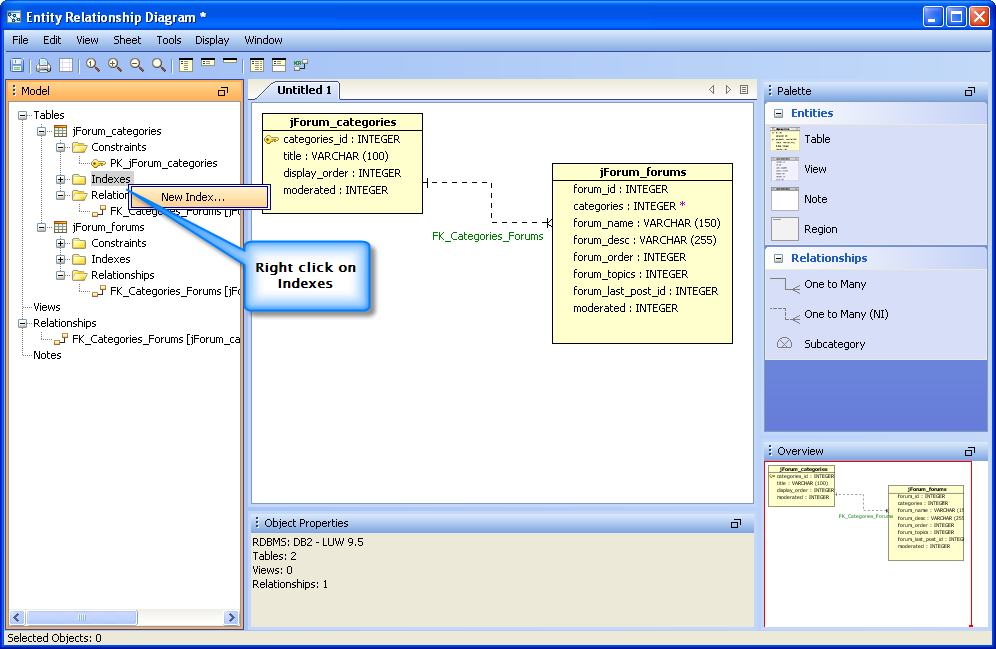

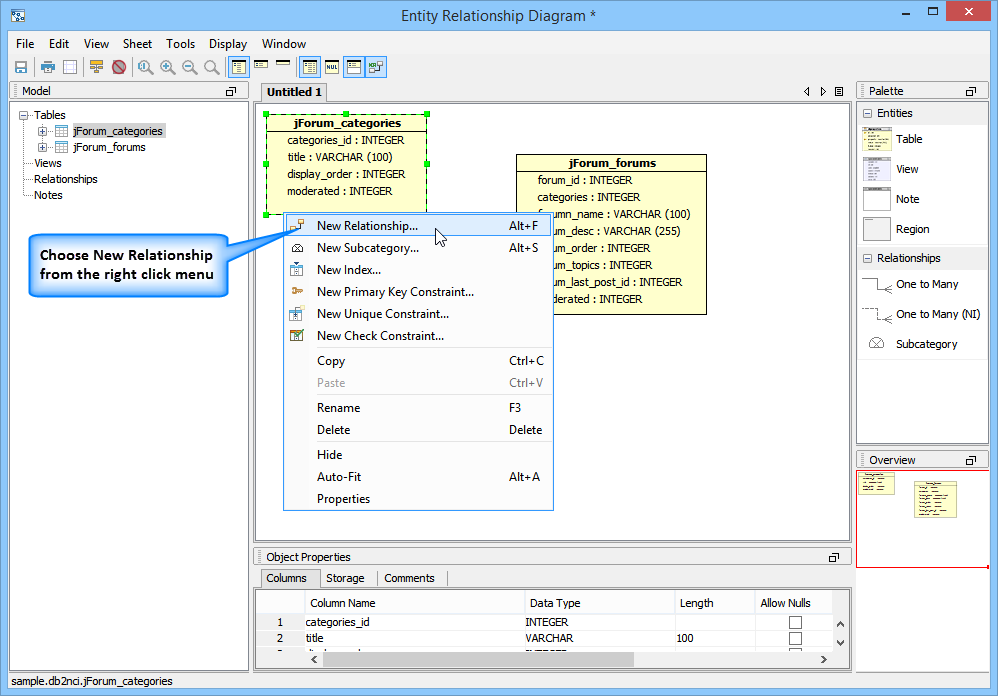

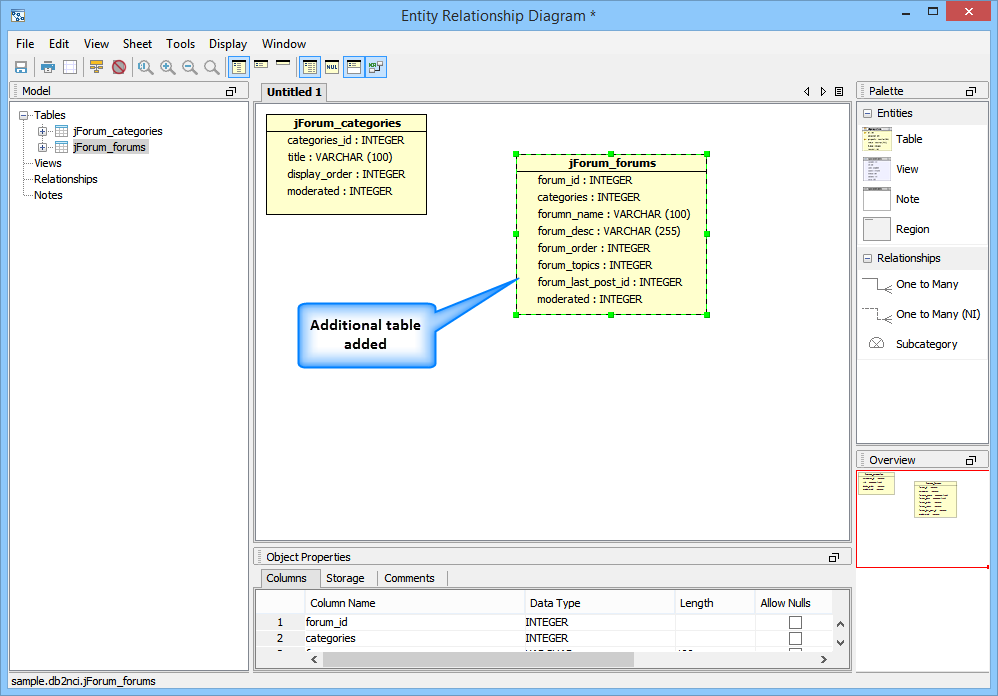

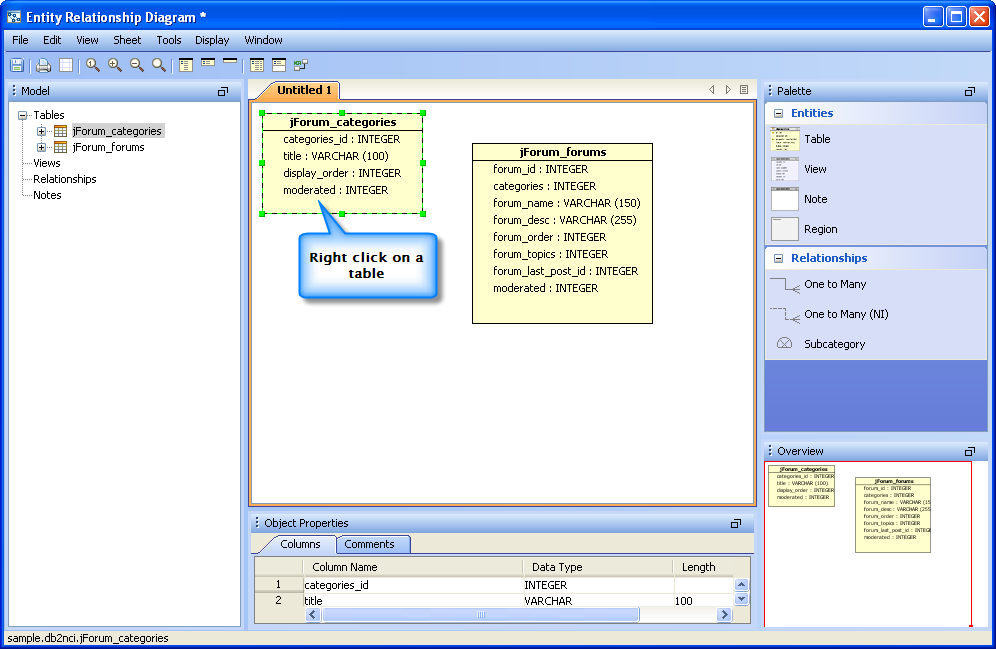

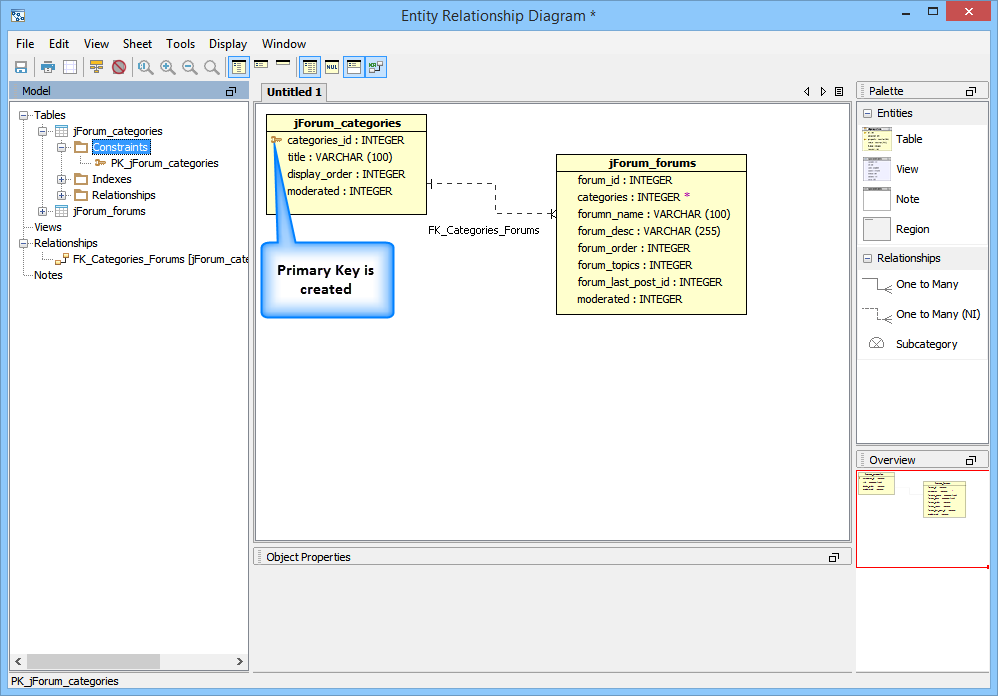

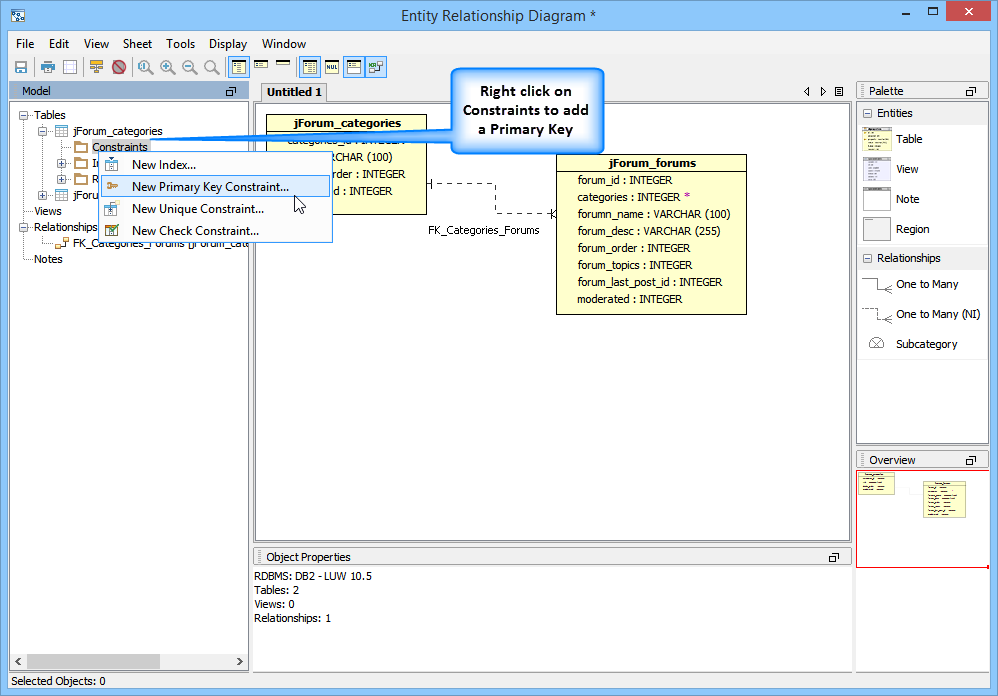

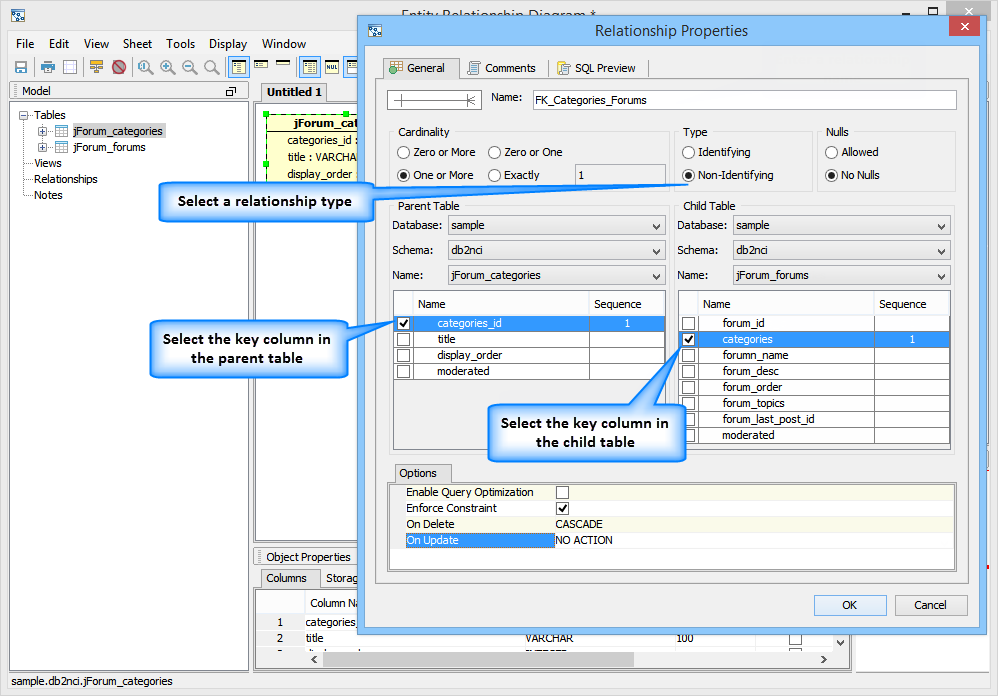

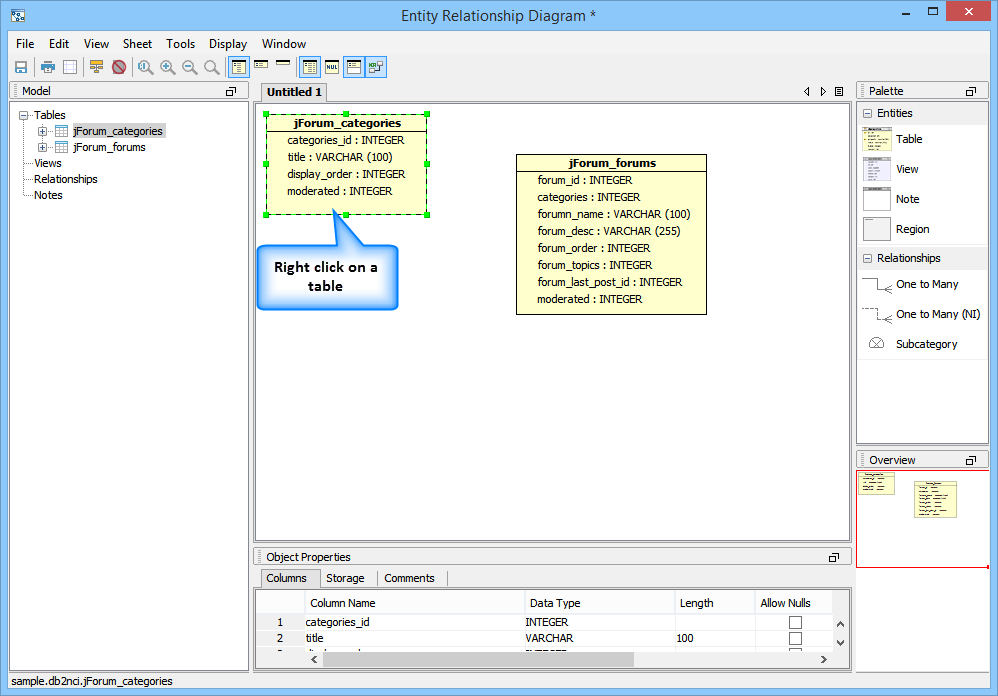

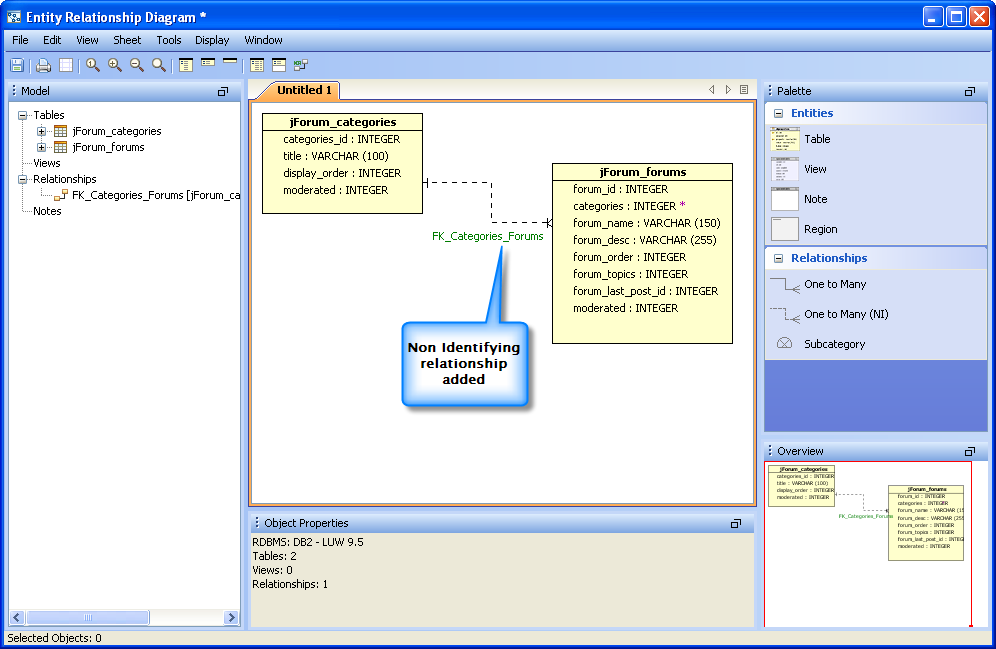

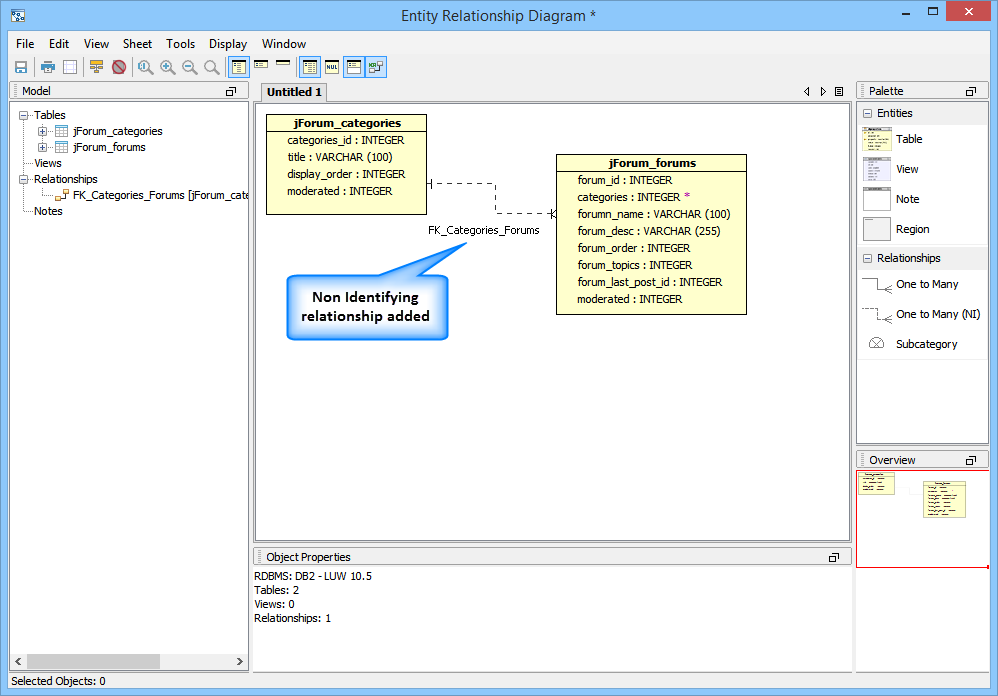

8. New Table Added	9. Right click on Table	10. Select New Relationship	11. Set Relationship Properties	12. Relationship added	13. Right Click Constraints	14. Enter Constraints Properties

Create Primary Key Constraints, Indexes and Generate a Script from the Model

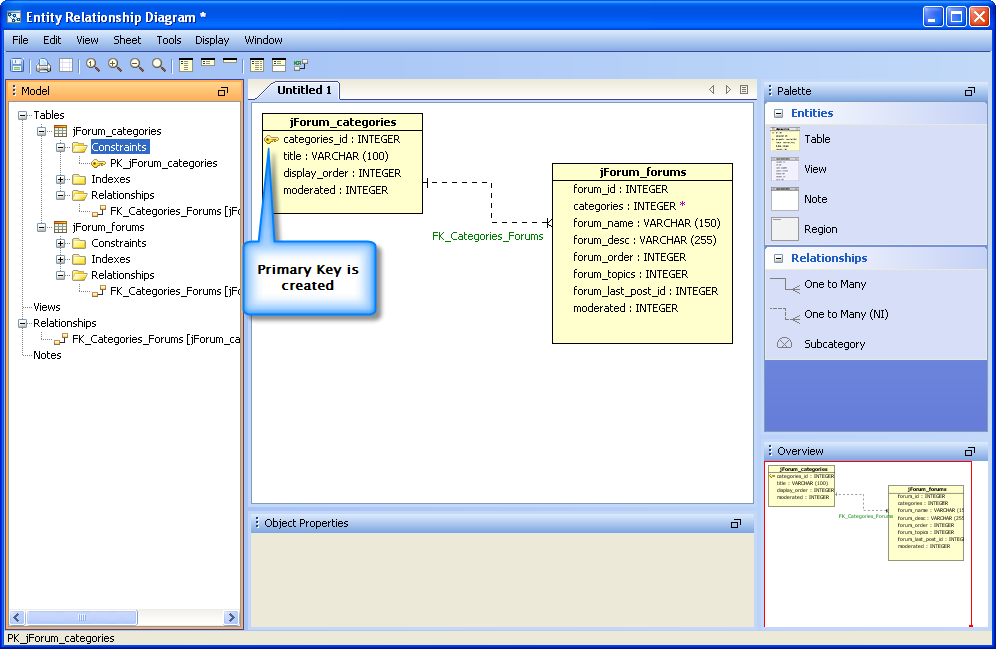

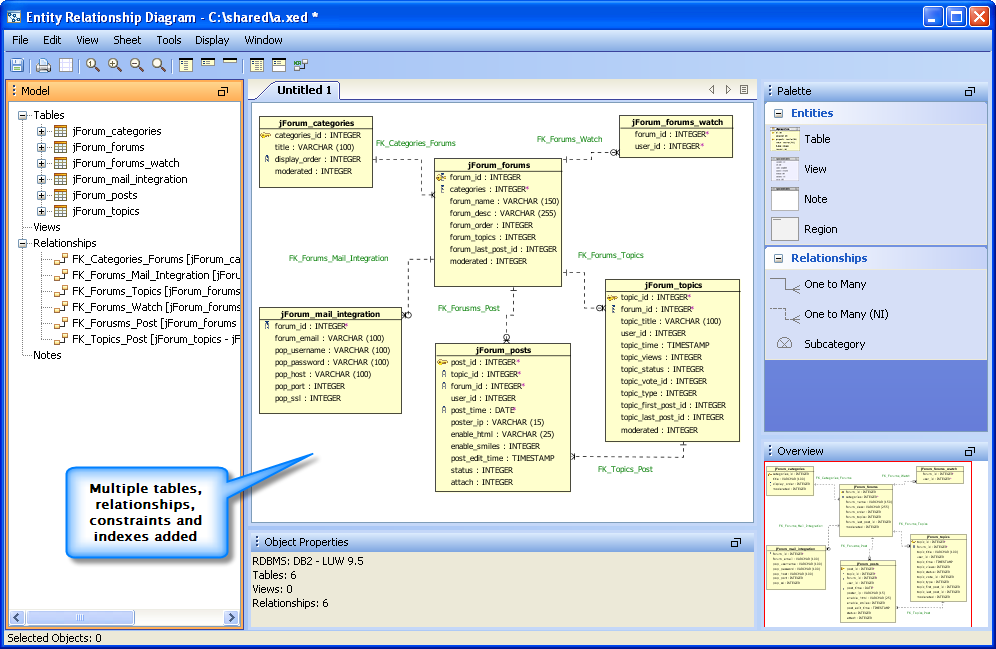

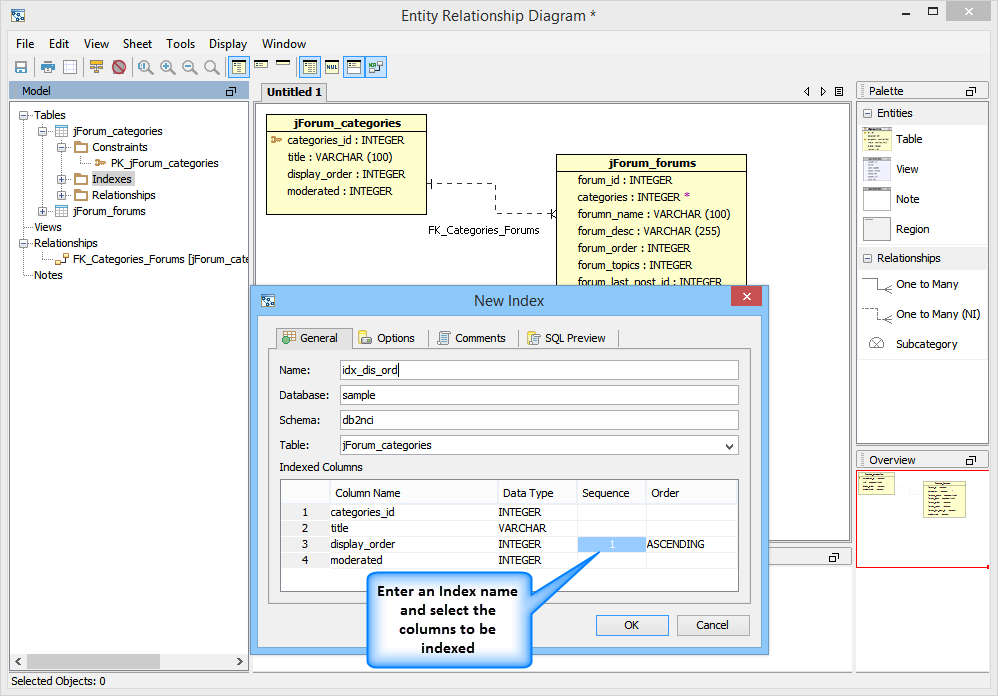

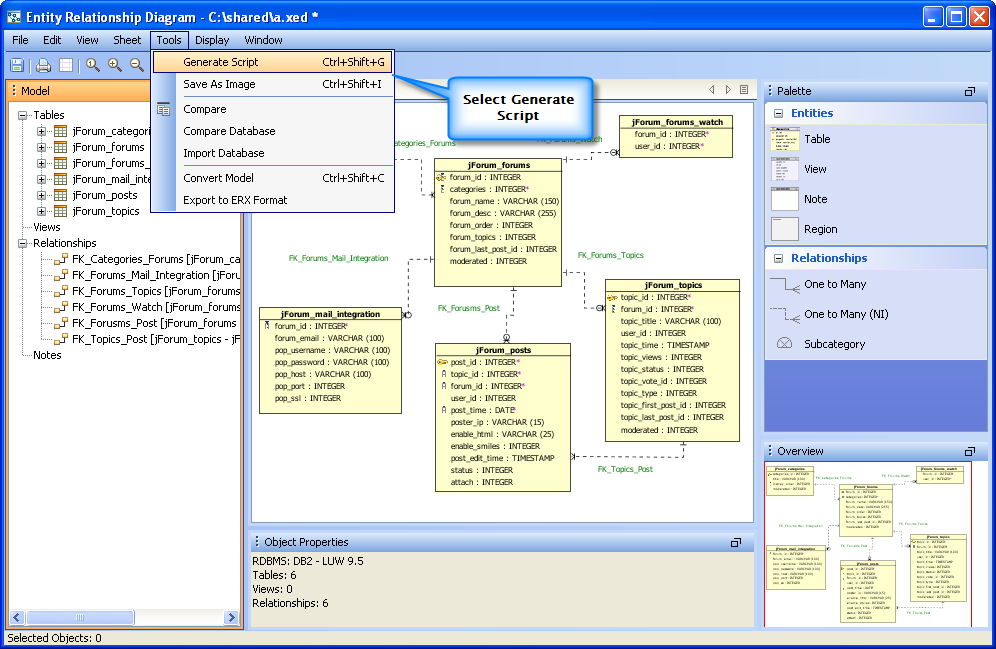

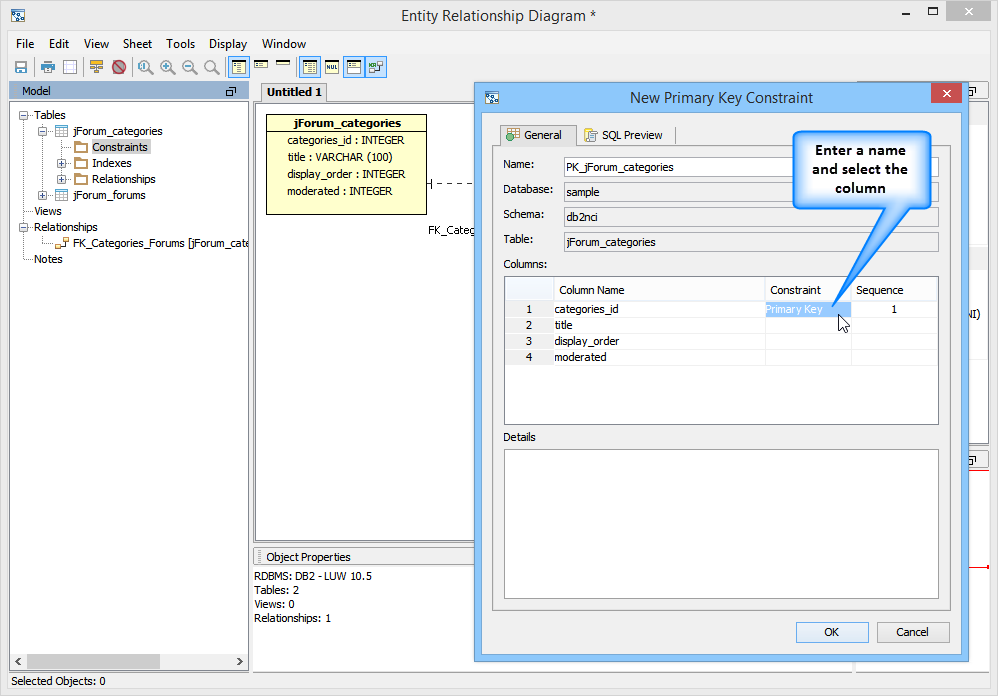

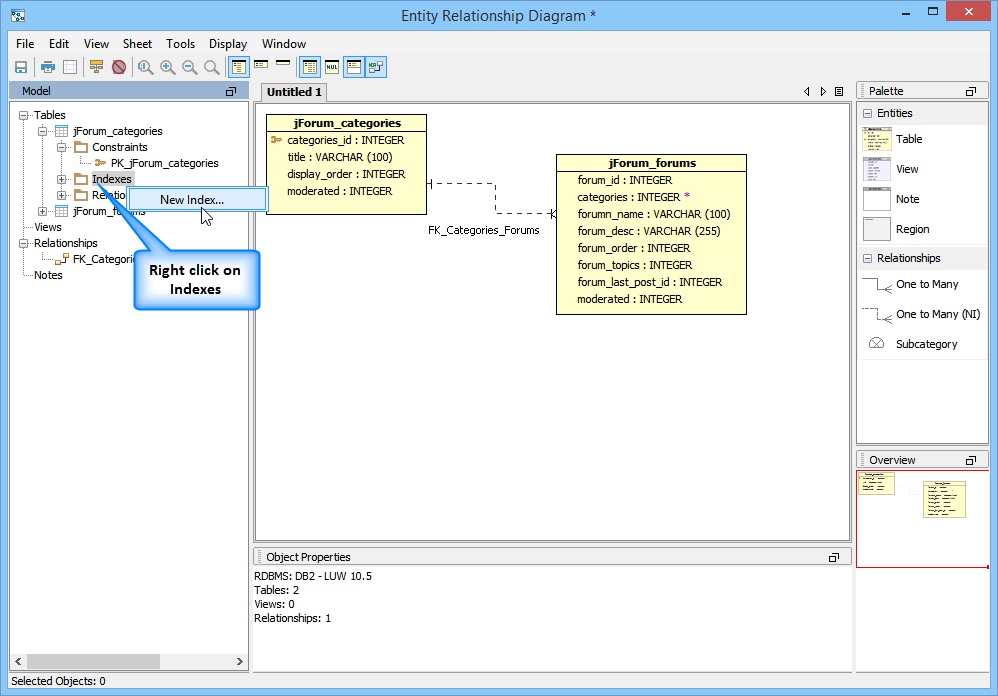

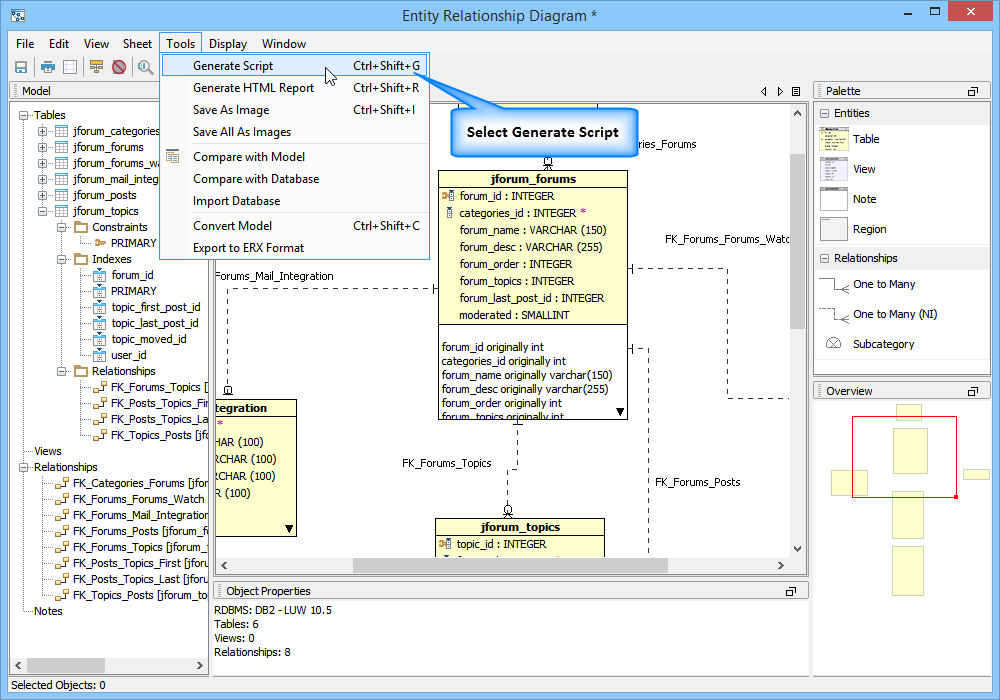

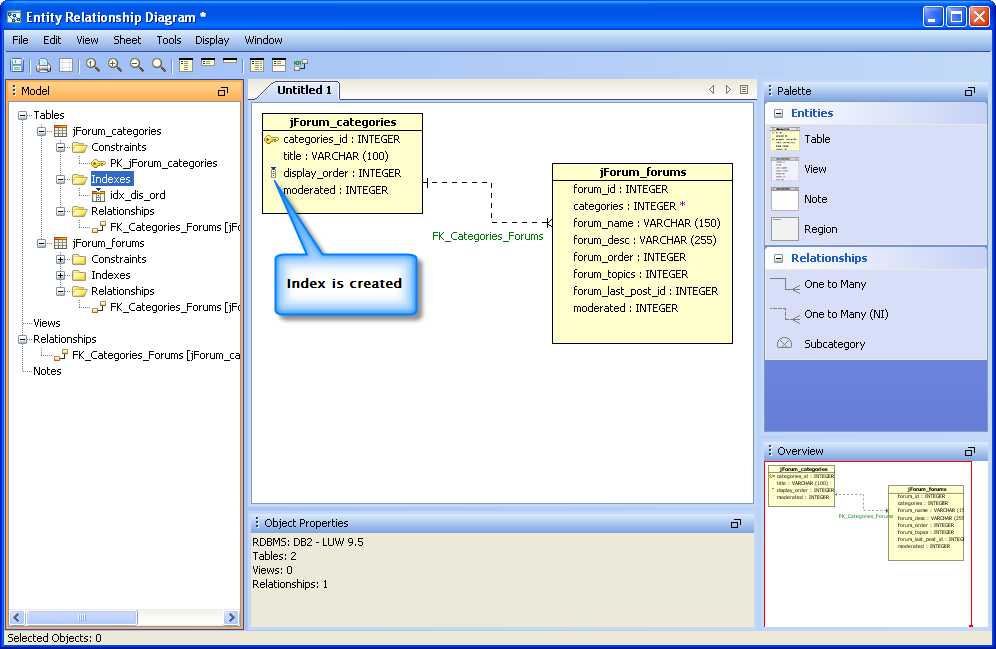

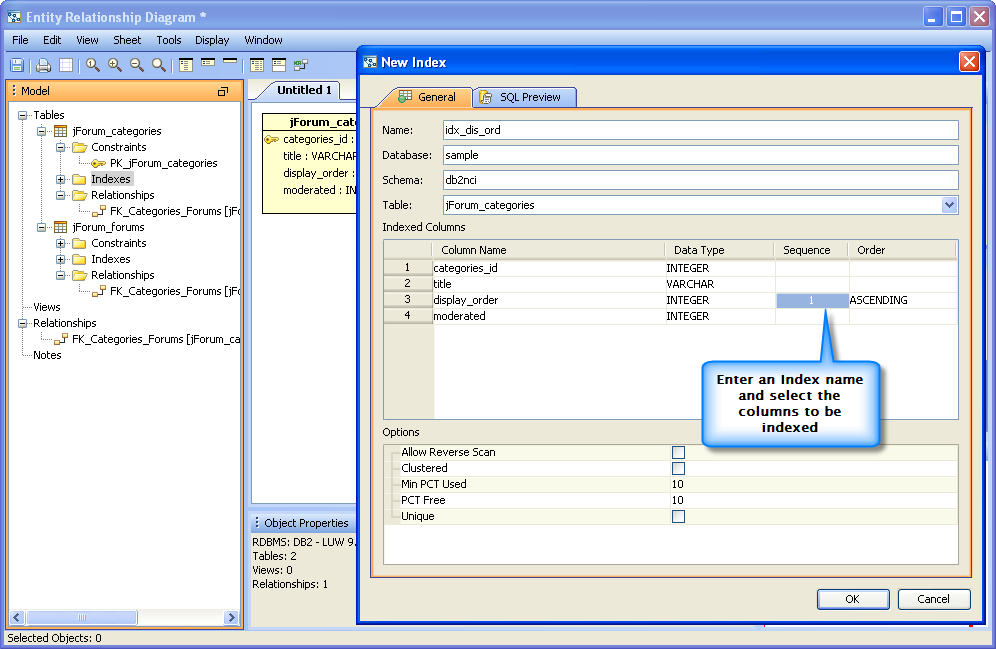

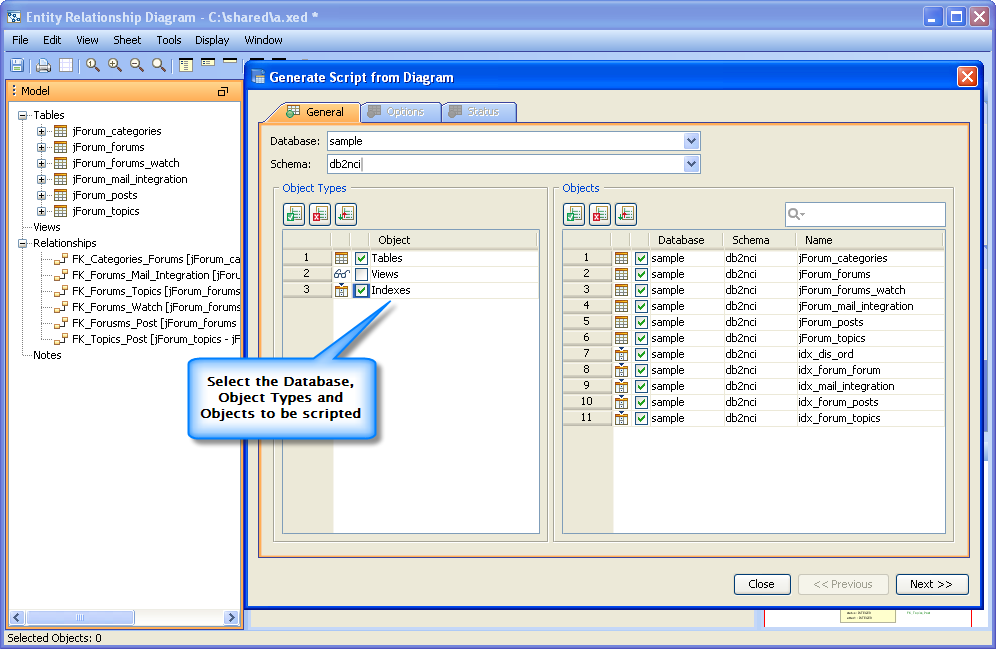

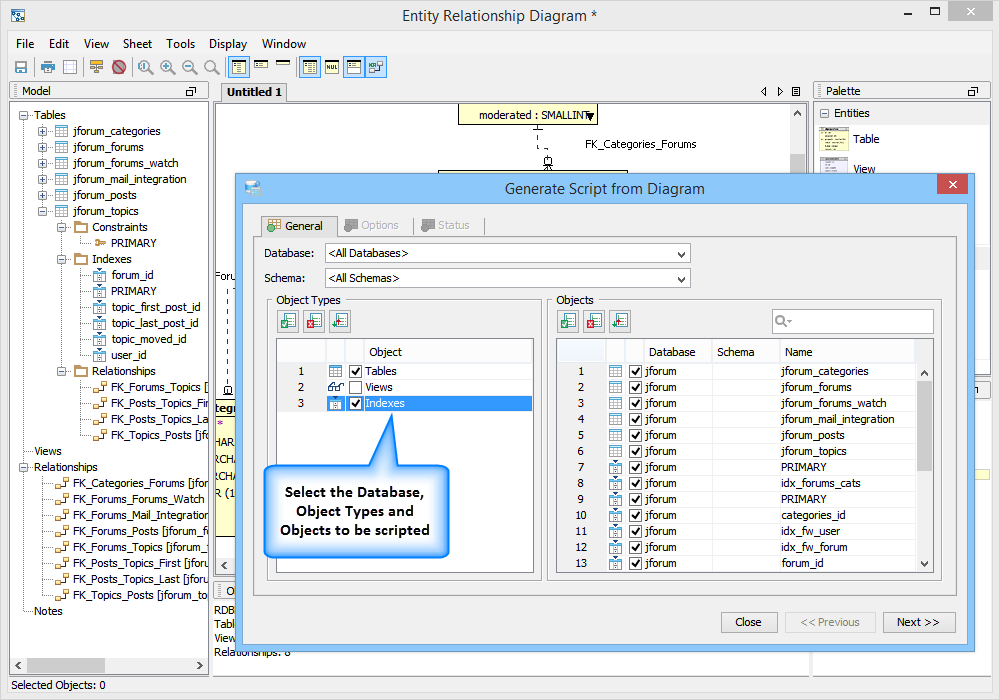

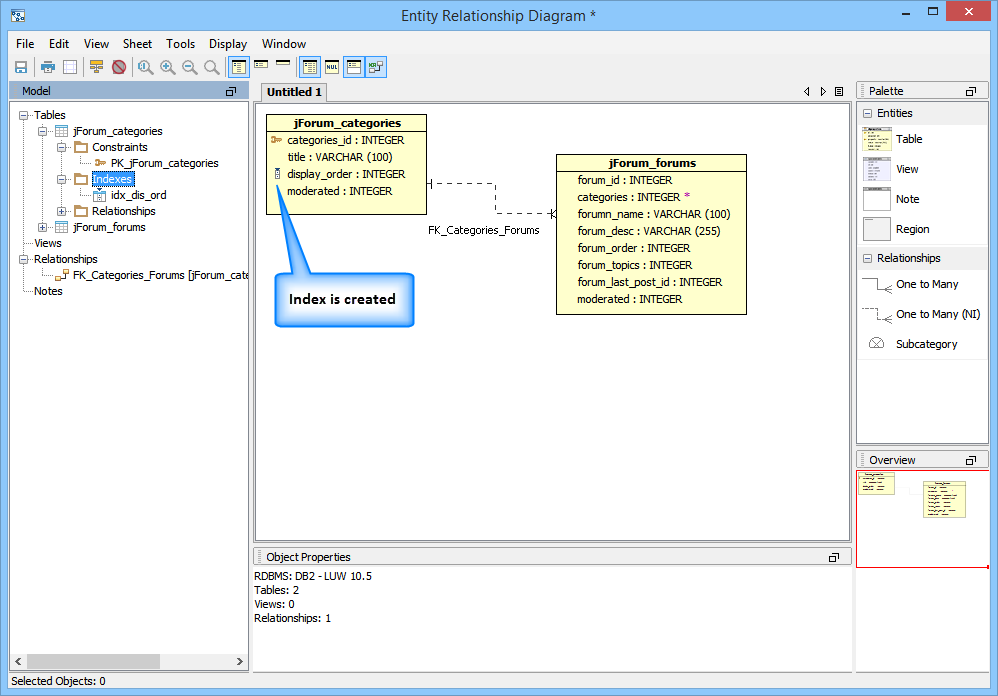

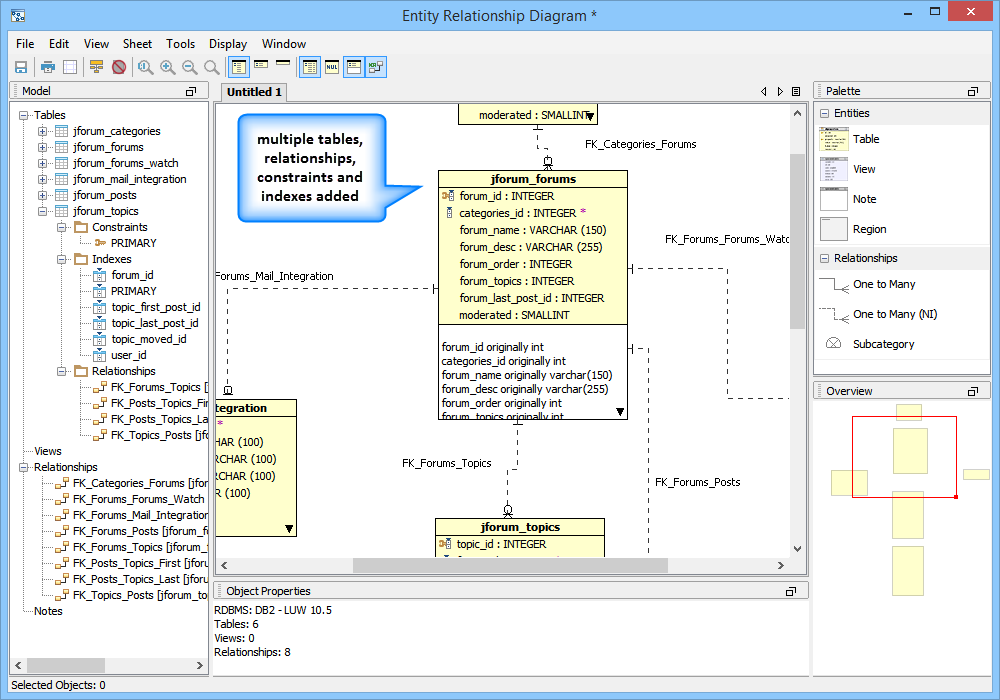

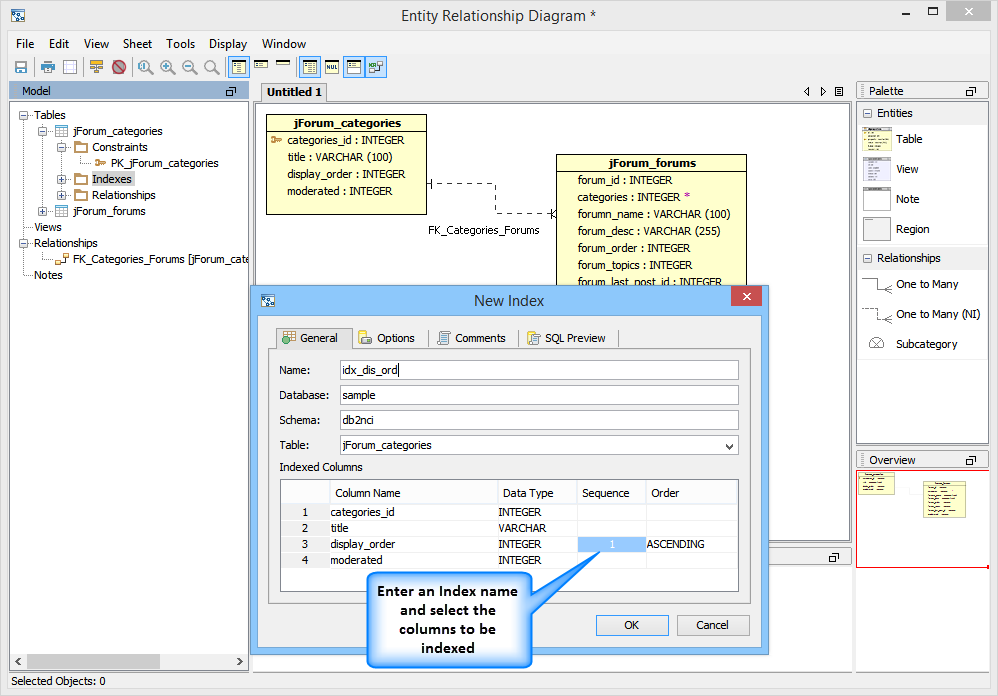

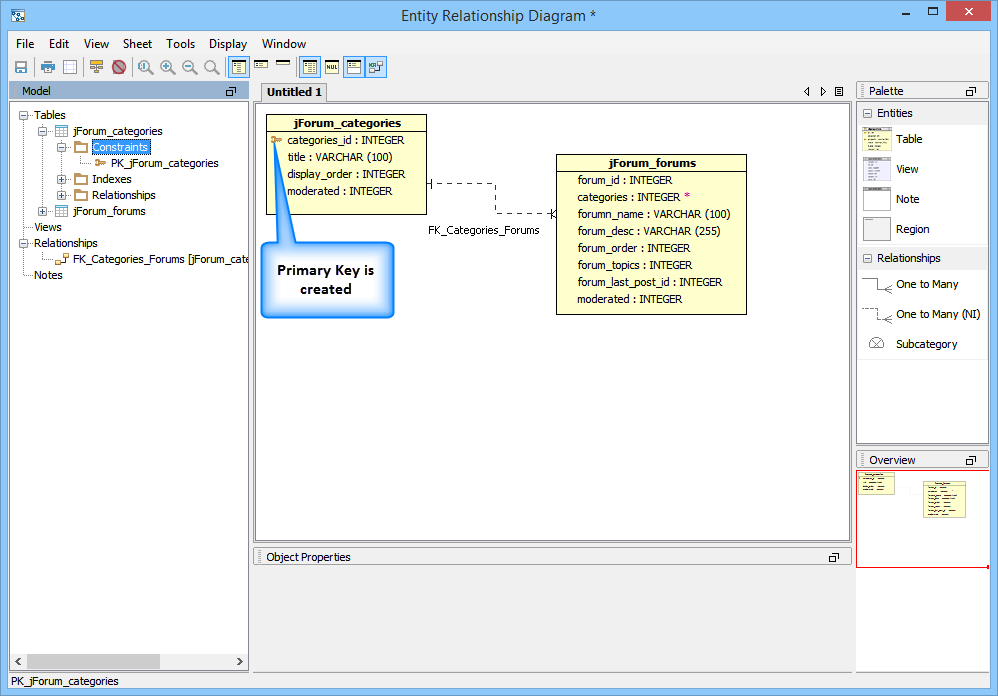

15. New Primary Key Added	16. Right Click Indexes	17. Enter Index Properties	18. Index is created	19. More Relationships Constraints, Indexes & Tables	20. Select Generate Script	21. Select Schemas

View the Script Generation Status, View the script and further modify the diagram

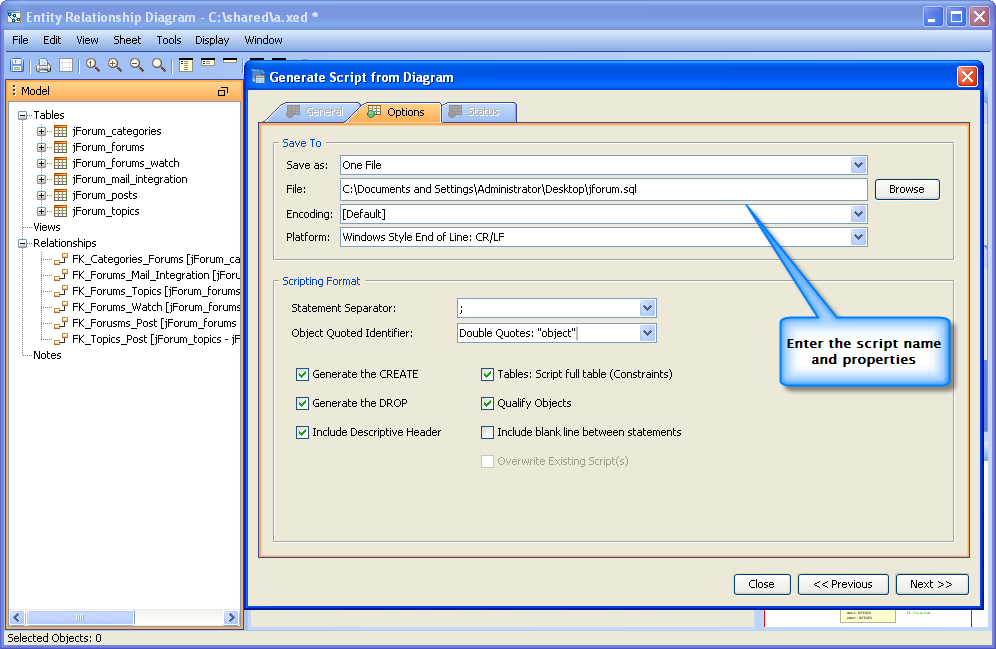

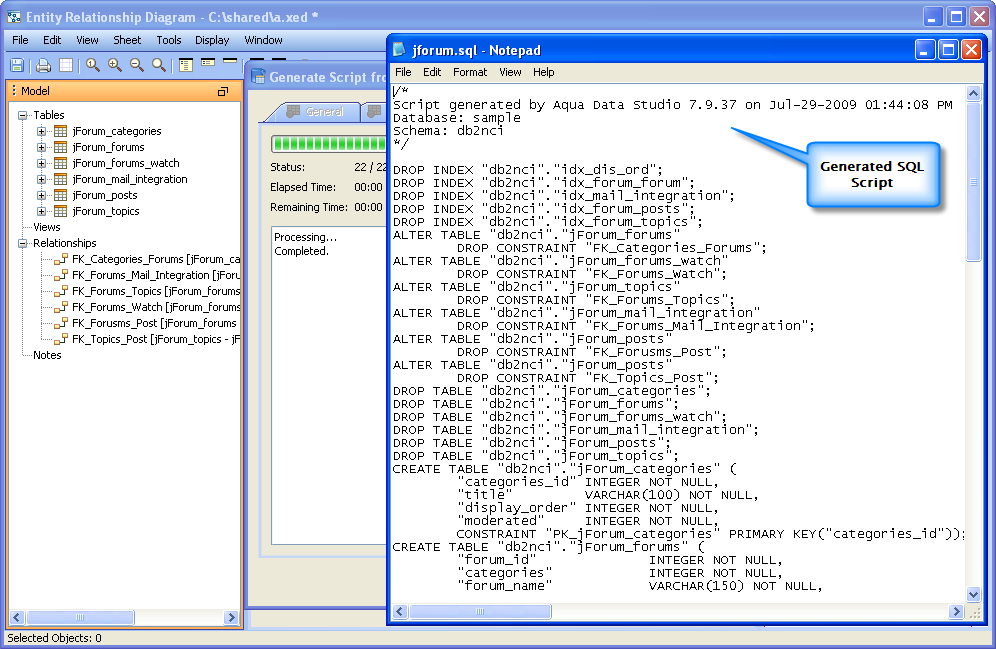

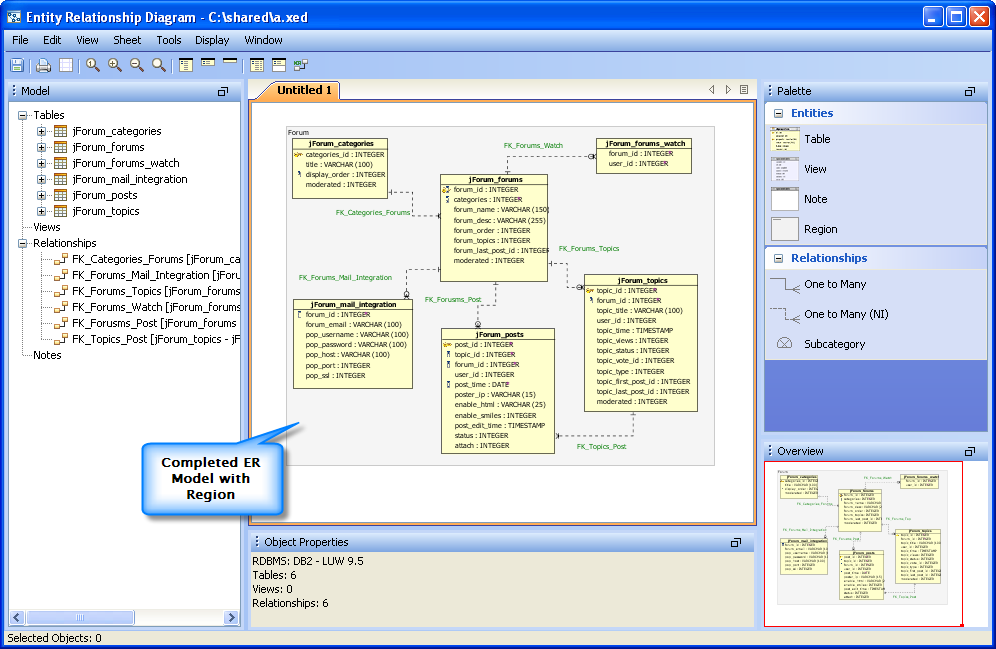

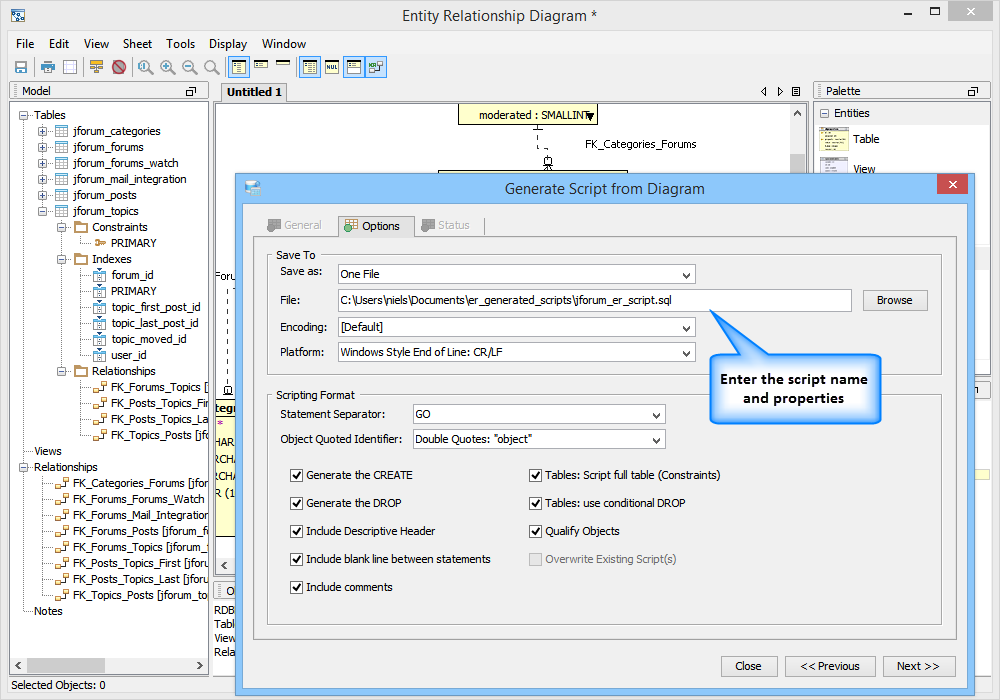

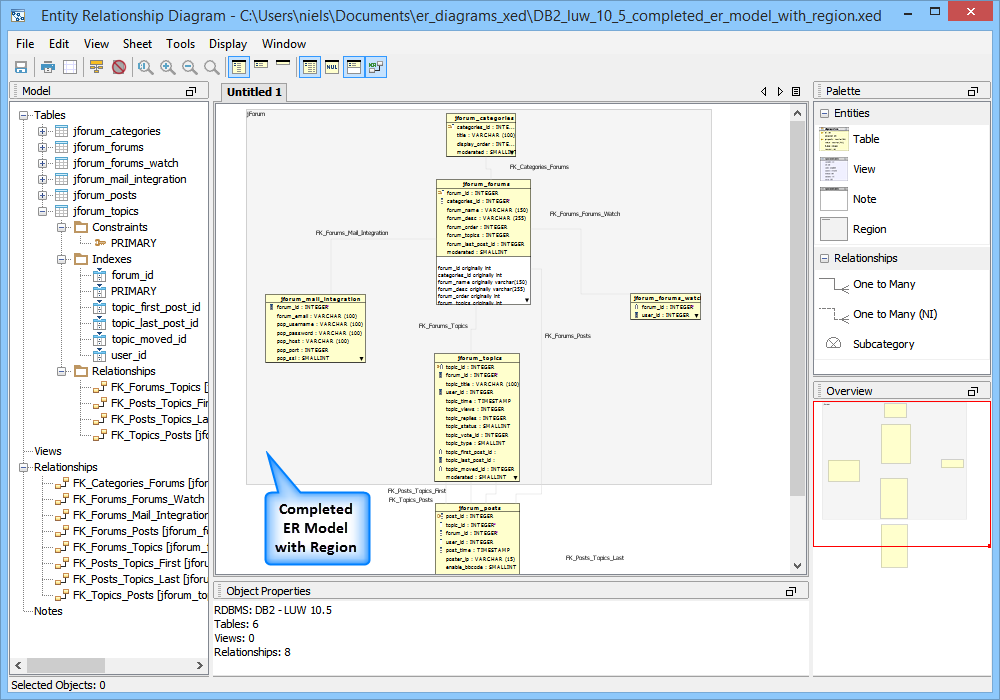

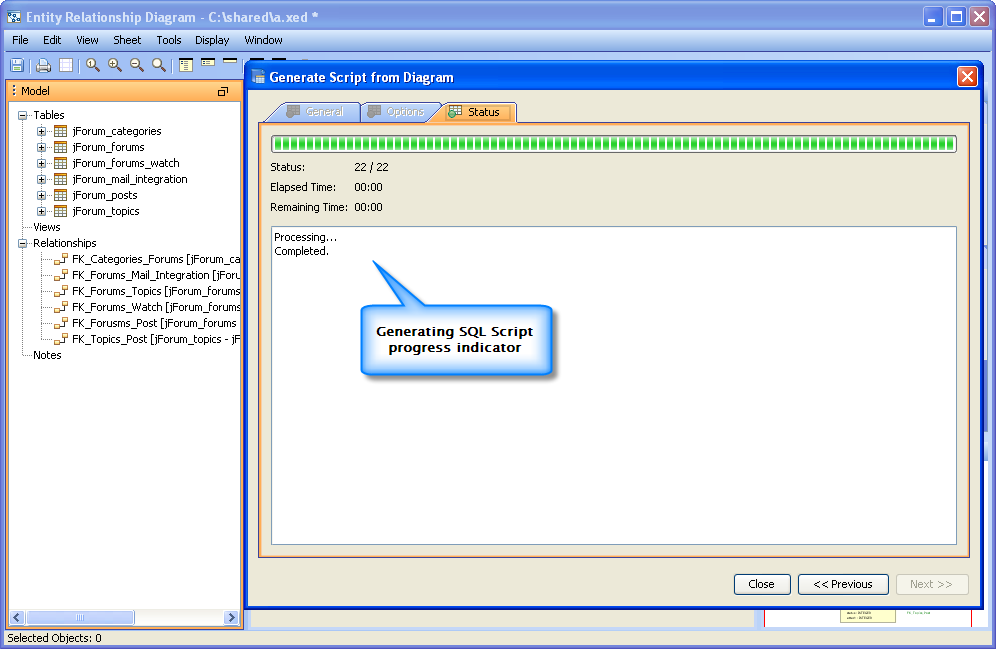

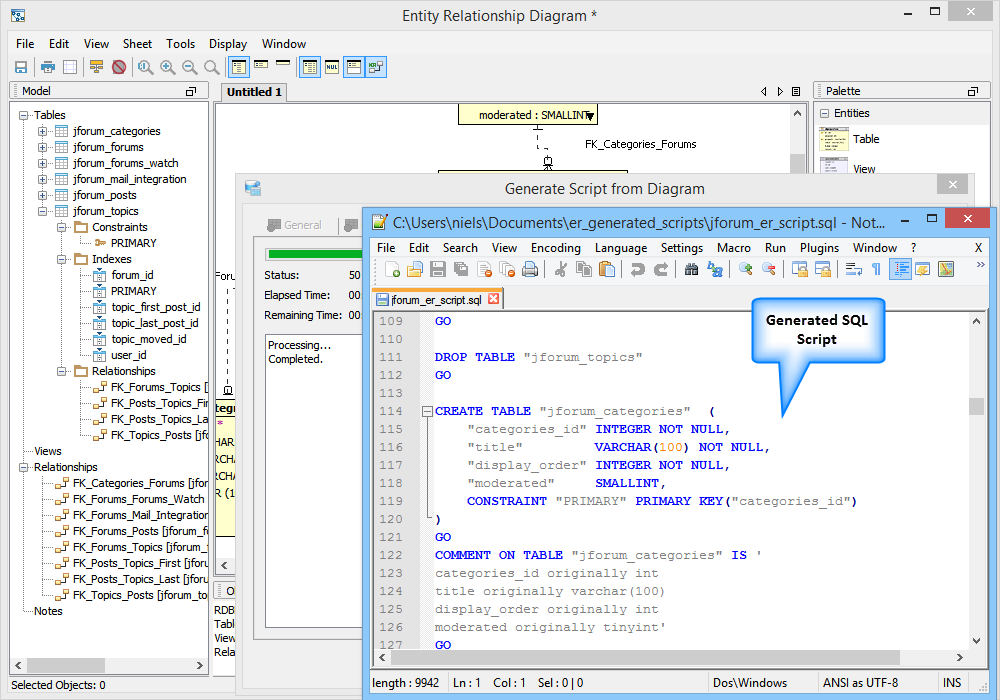

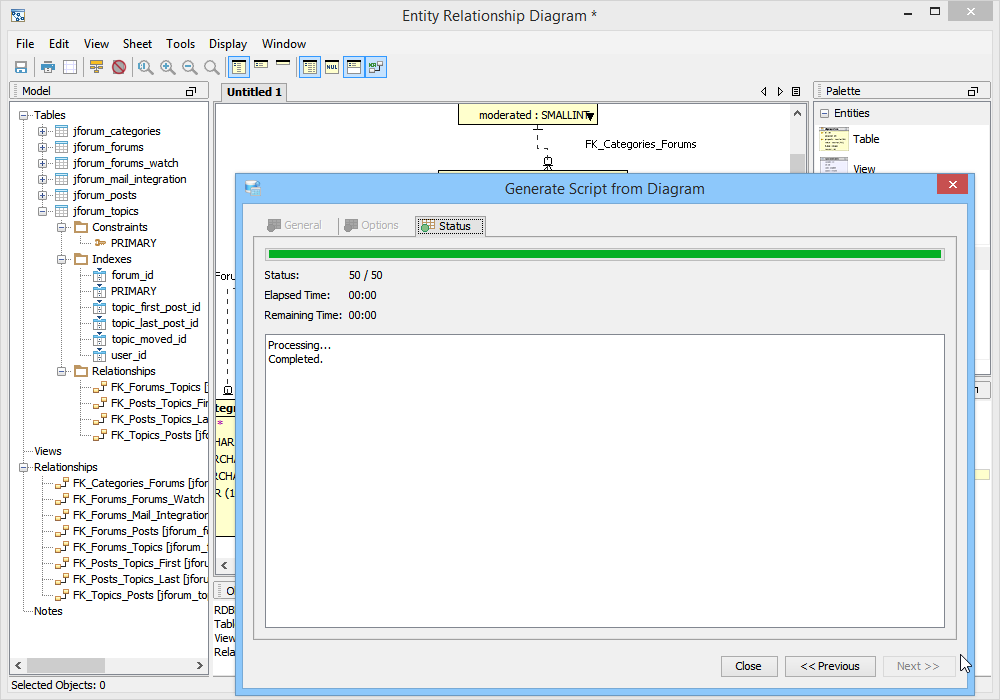

22. Specify Script Name	23. Script Generation Status	24. Generated SQL Script	25. Diagram Region added

Generating an  ER Model through the Schema Browser

If a database were to be imported, the beginning steps (steps 1 - step 10) above would be skipped as all of the table properties, datatypes and columns would be generated during the database import.  If a database were to be right clicked in the schema browser, there would be no need to manually select database and version in step 2 above.

Below, a model is generated in 3 steps using the "ER Diagram Generator" beginning with a database that already exists in the schema browser.

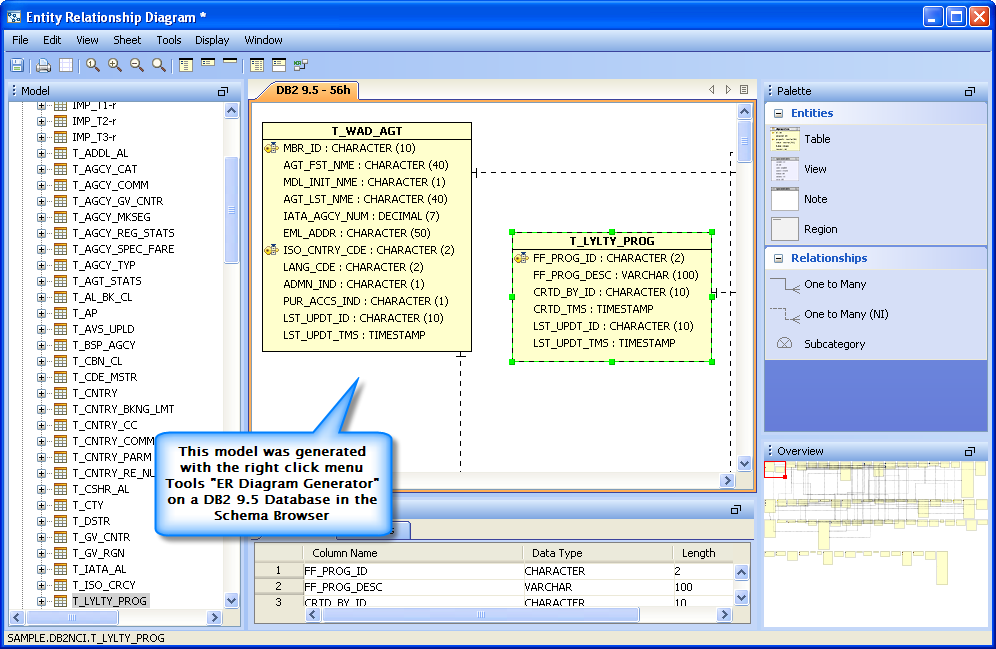

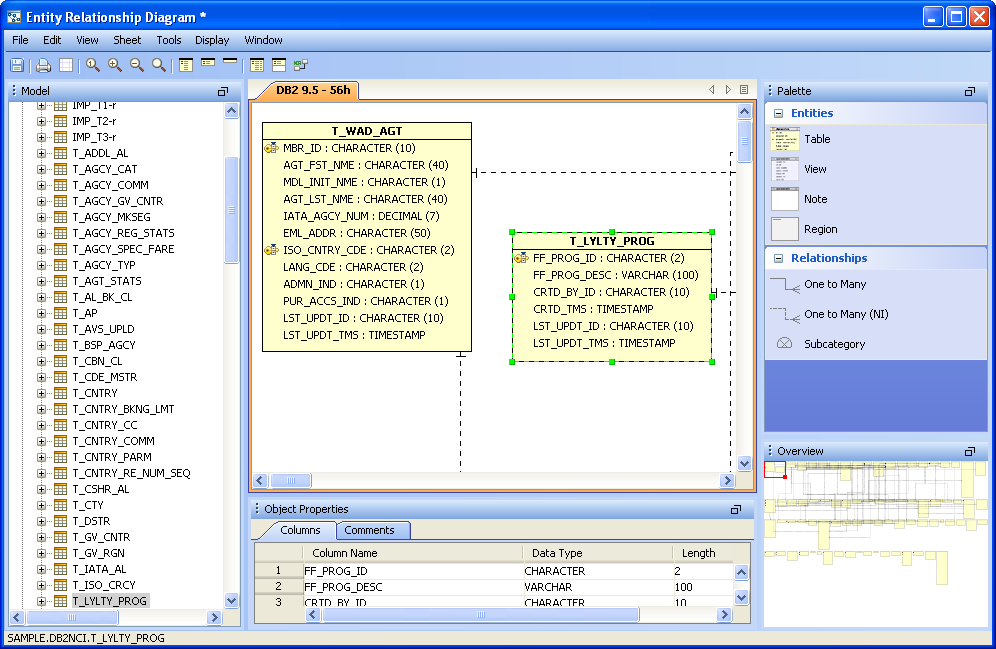

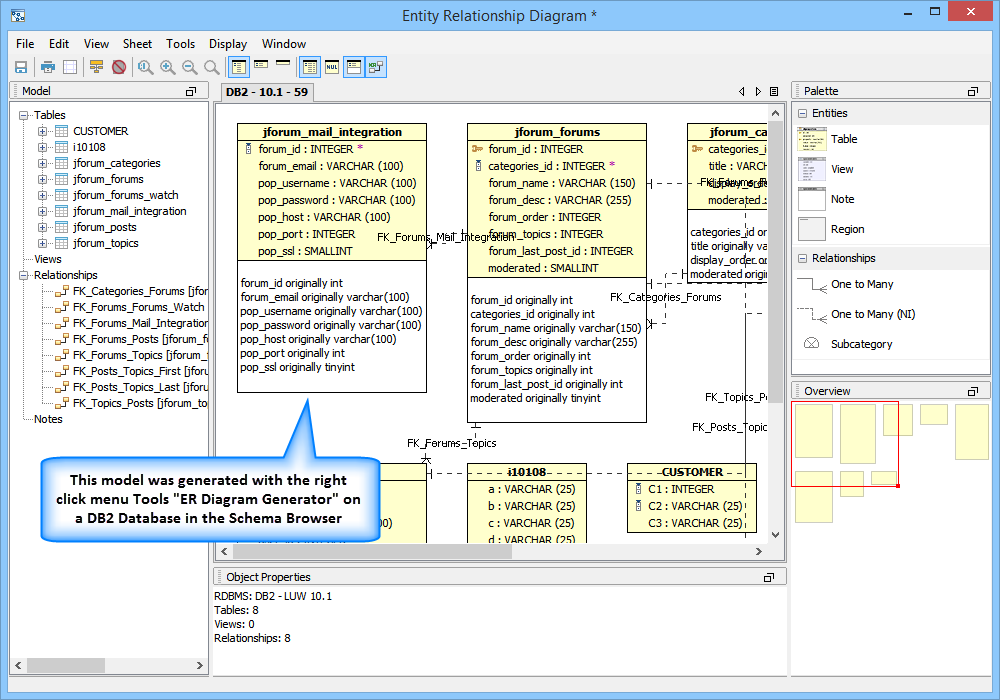

A Model Generated from the Schema Browser "ER Diagram Generator"

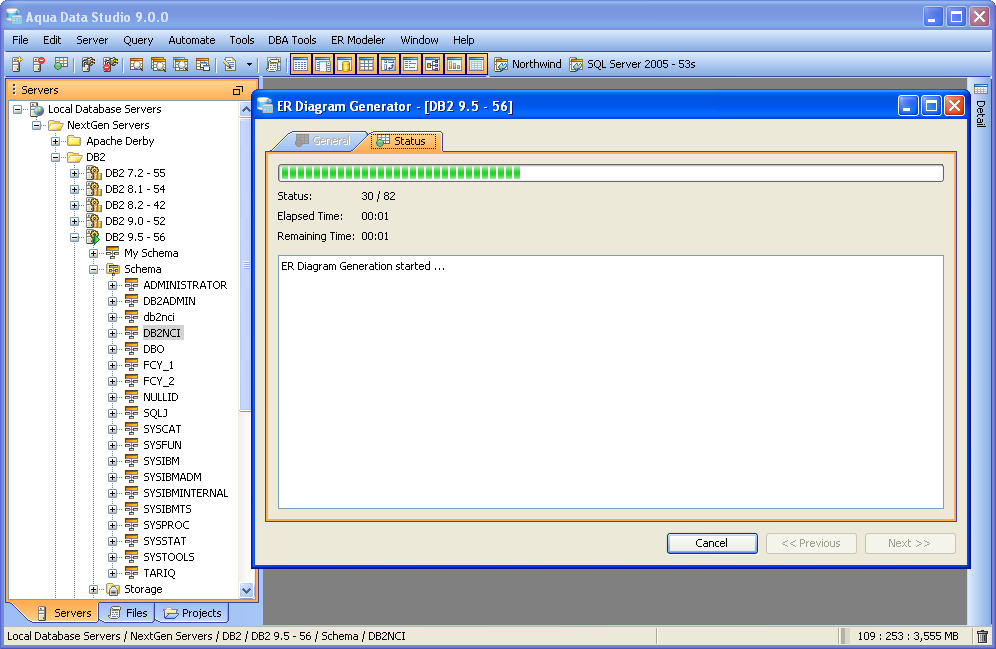

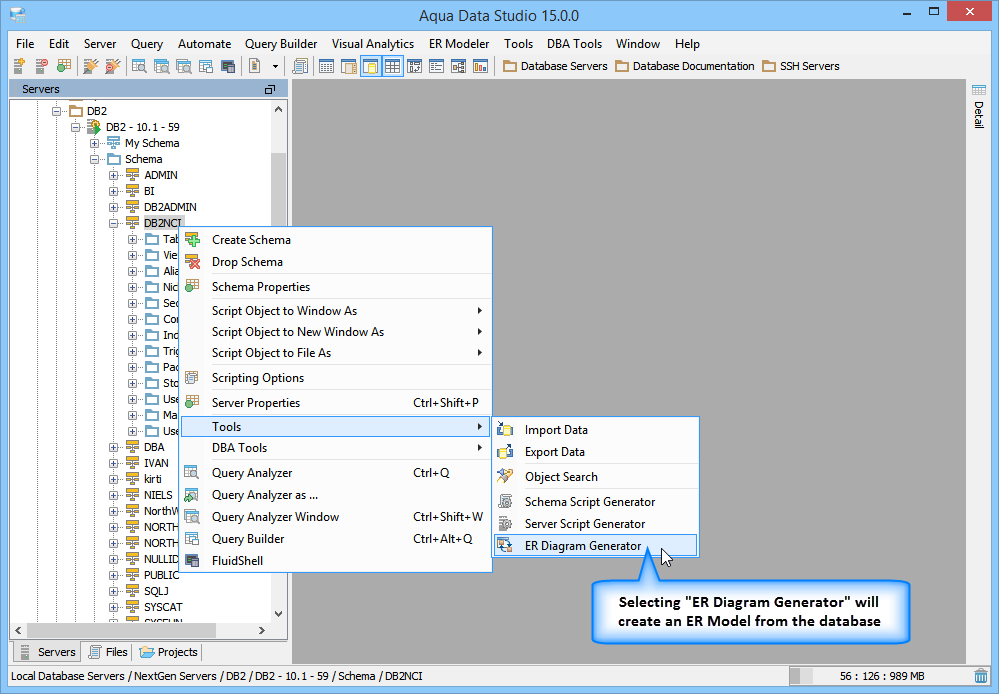

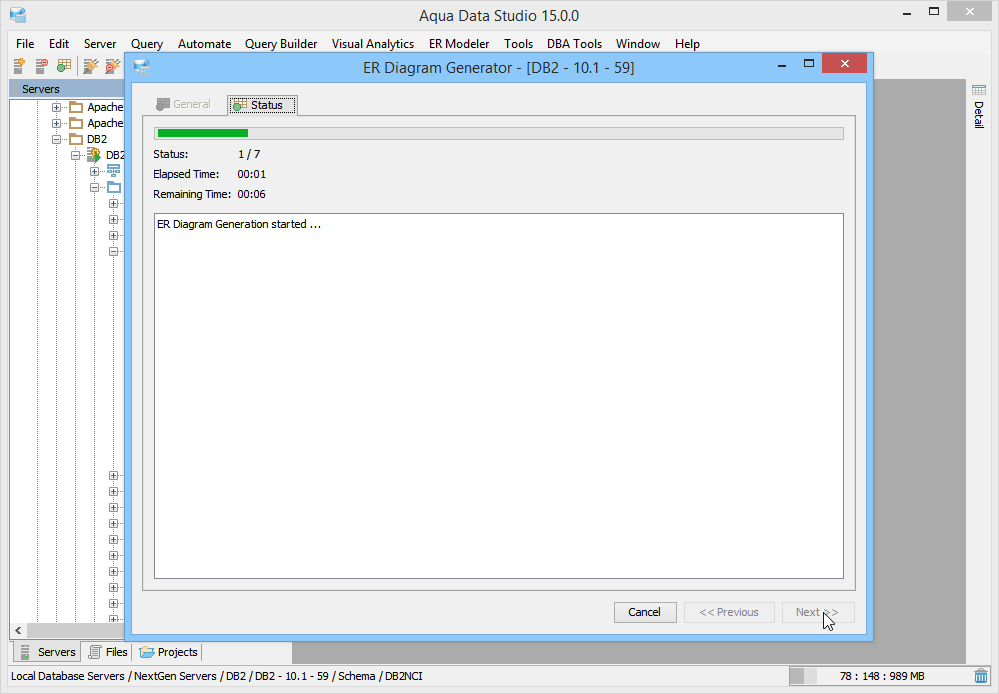

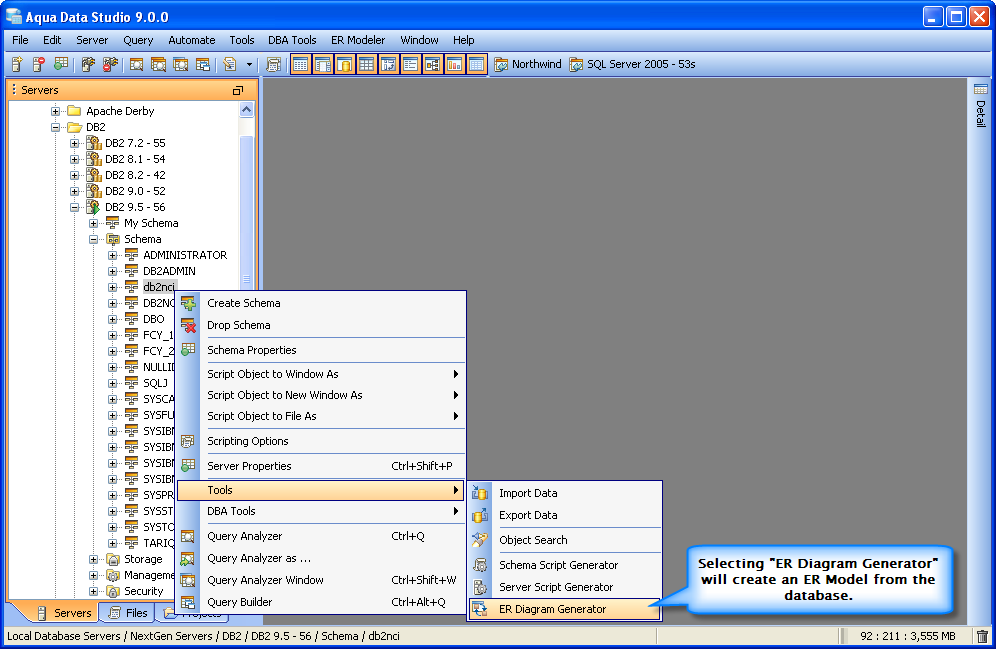

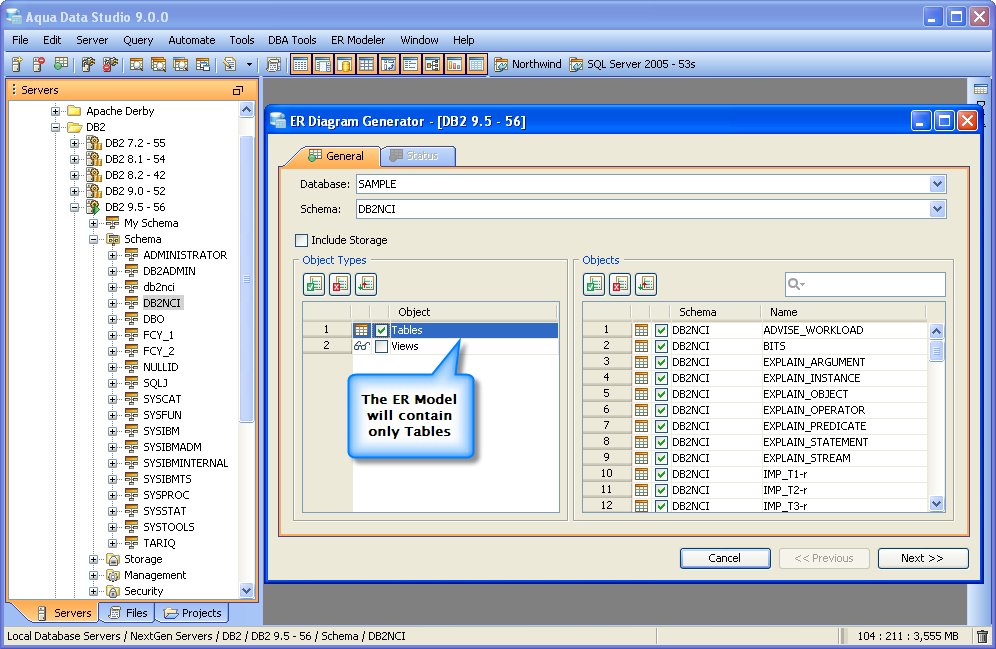

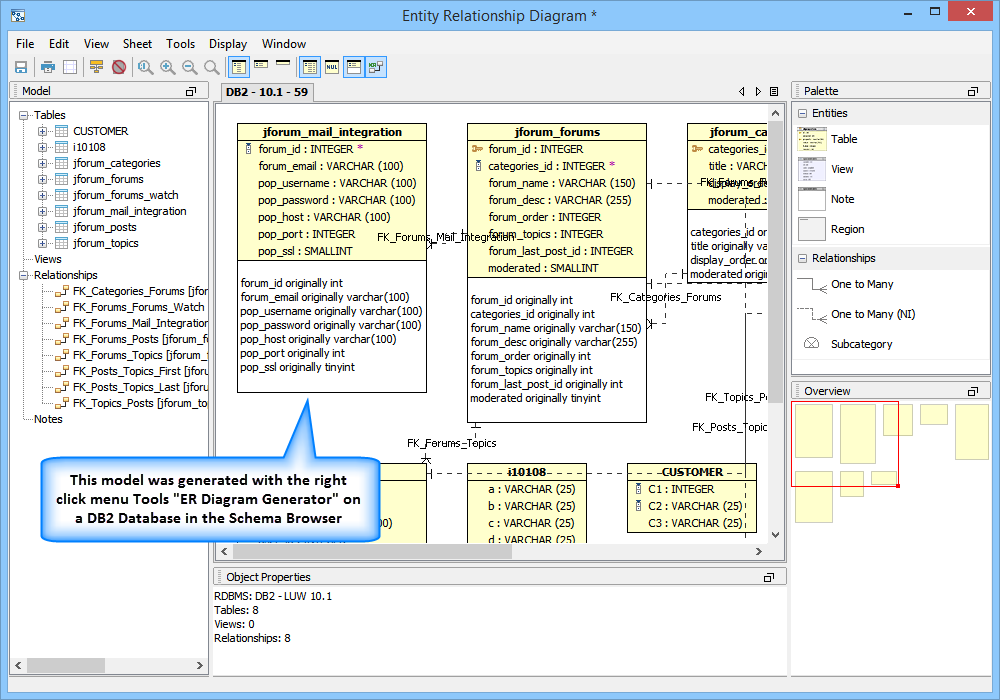

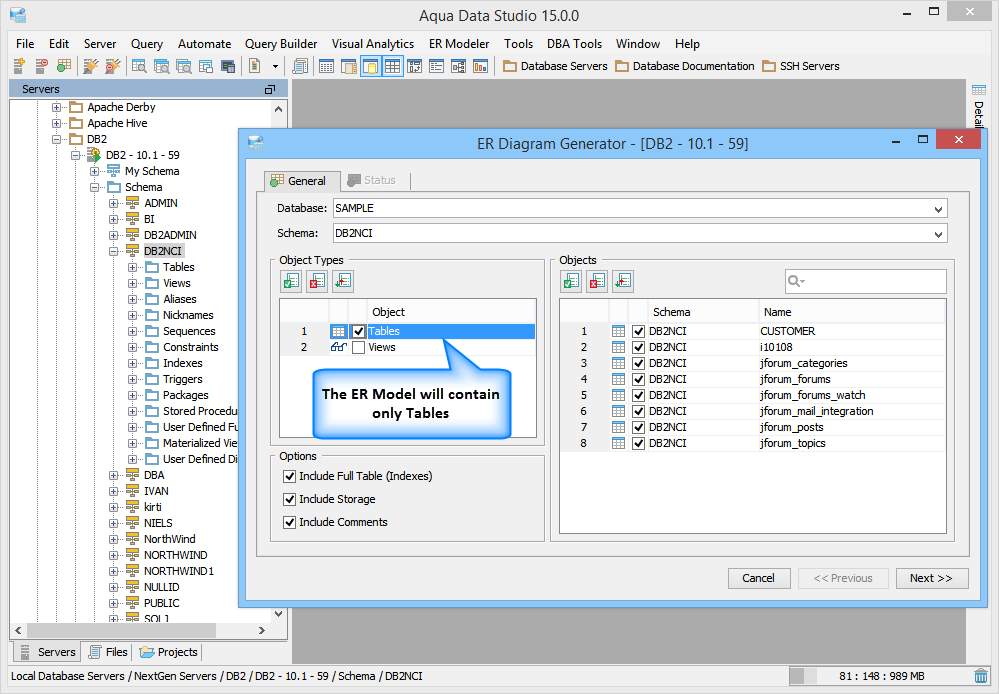

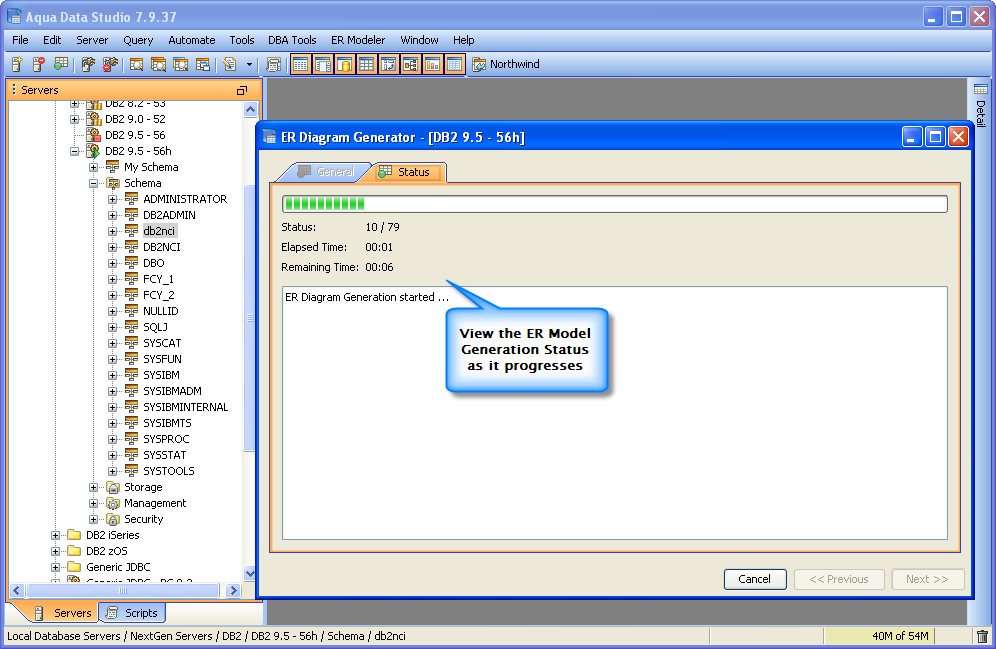

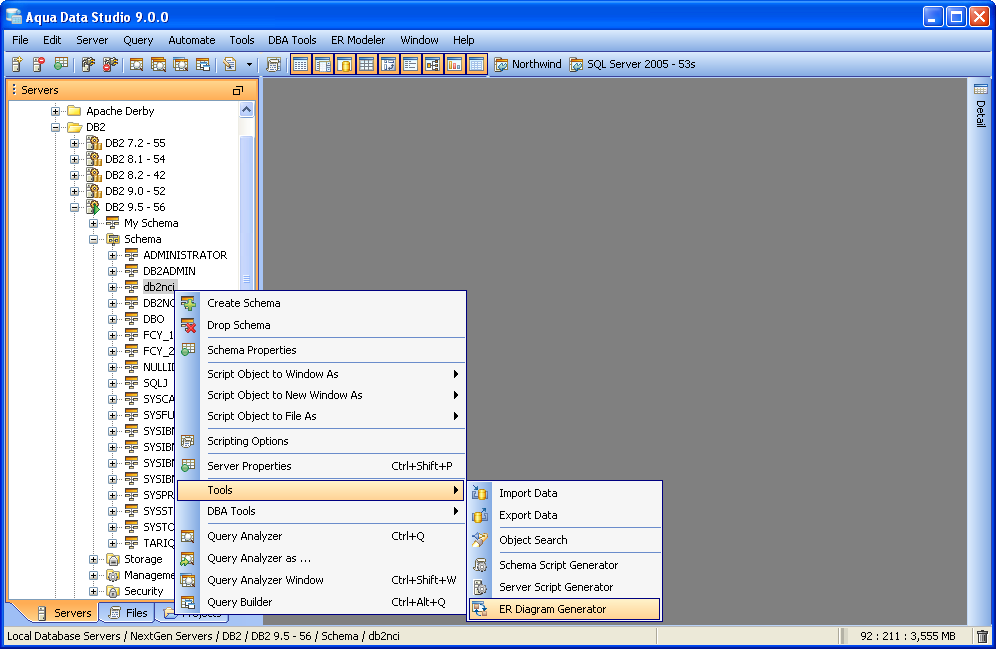

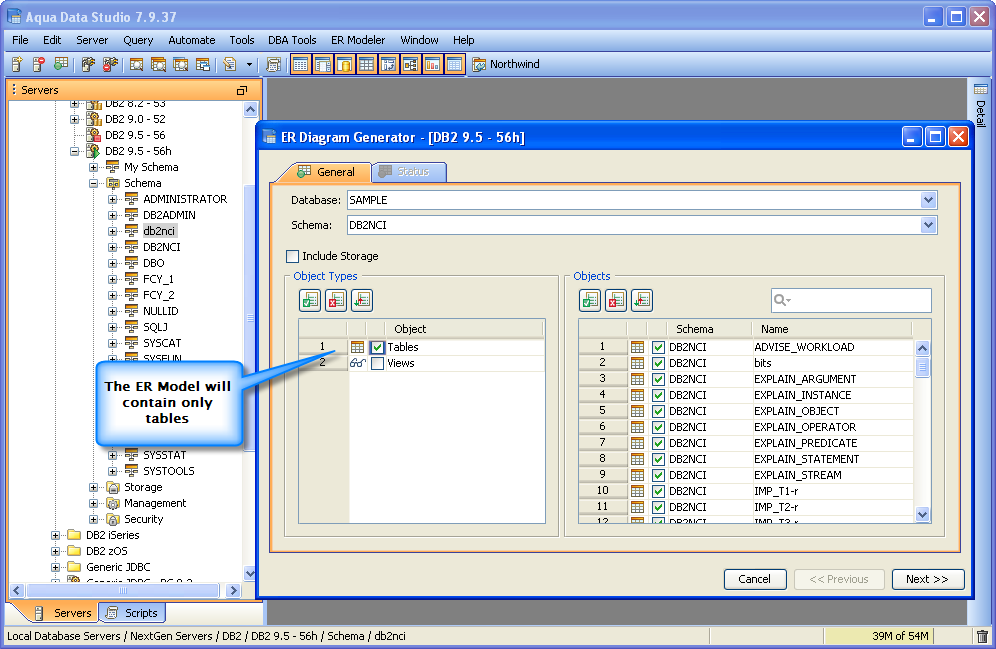

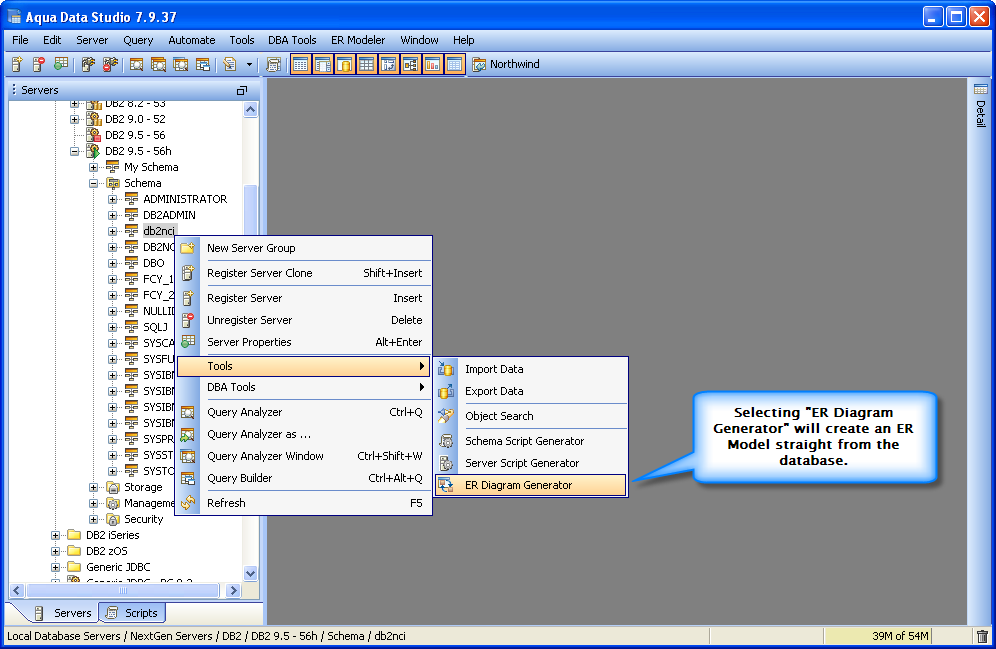

1. Right Click Choose "ER Diagram Generator"	2. Select Schema Objects	3. View Status	4. Diagram Generated
