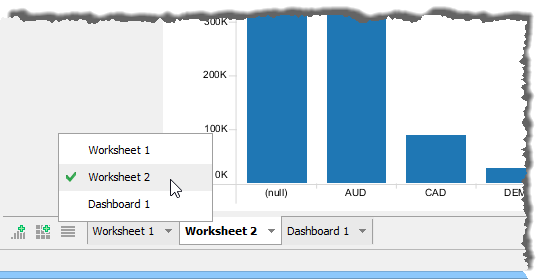

A Sheet is where you create Views by arranging data with drag and drop by placing Dimensions and Measures into decks. Each sheet, whether it's a Dashboard or Worksheet, is displayed as a tab at the bottom of Visual Analytics.
When Visual Analytics is launched, you automatically generate a Sheet labeled "Worksheet 1".
If you want to create additional sheets

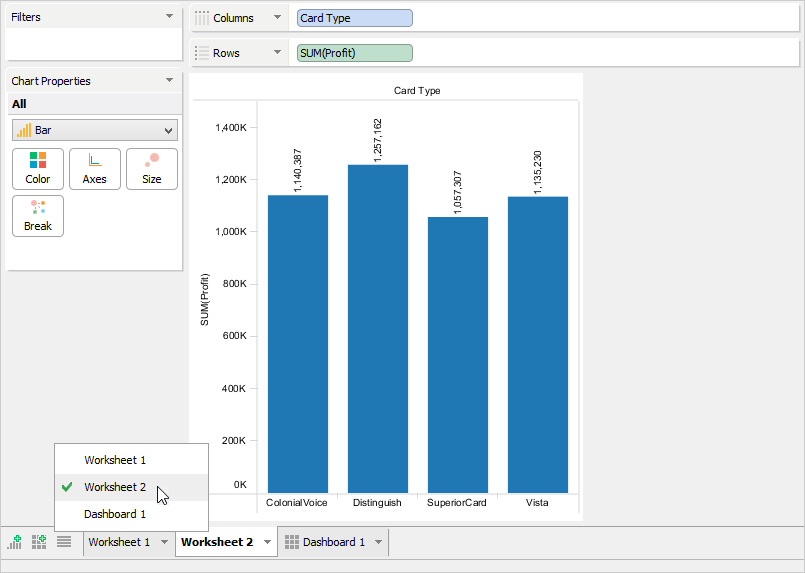

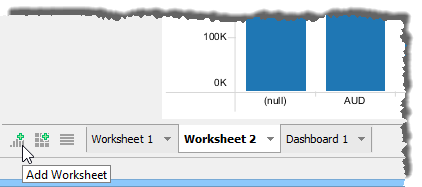

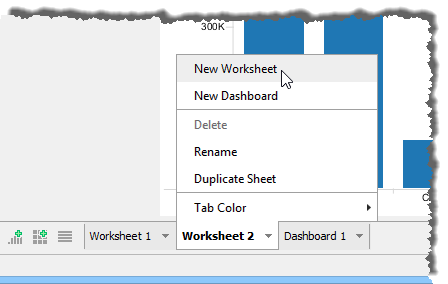

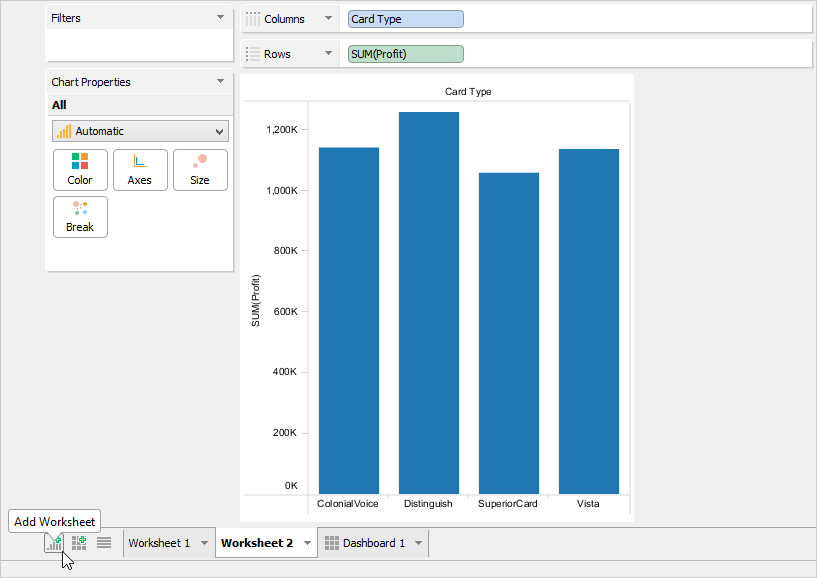

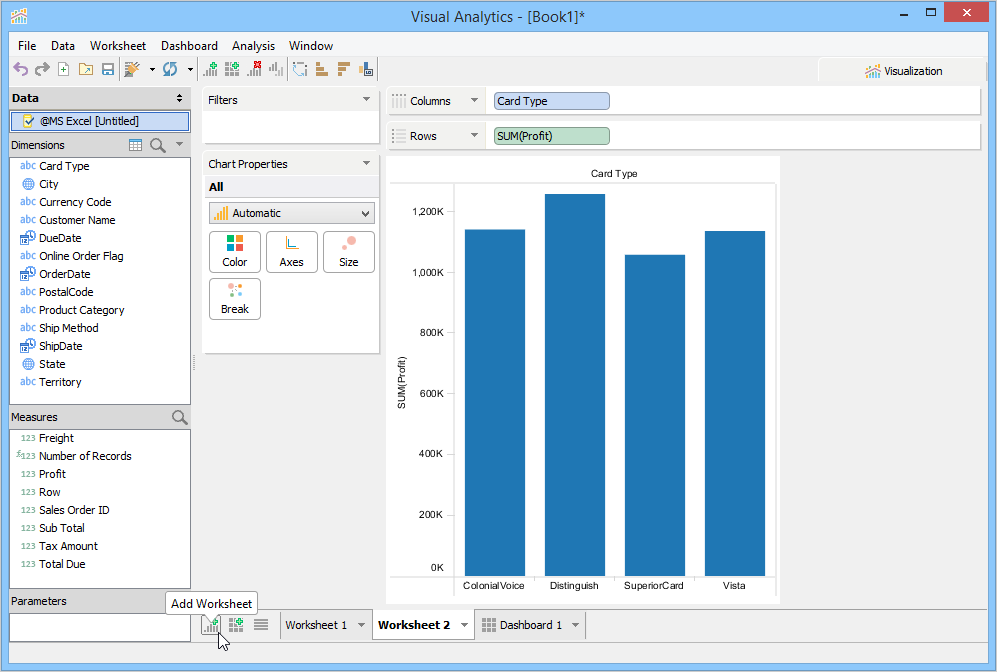

1. Click the [Add Worksheet] icon at the bottom of Visual Analytics or use the [Worksheet > New Worksheet] menu in the menu bar.

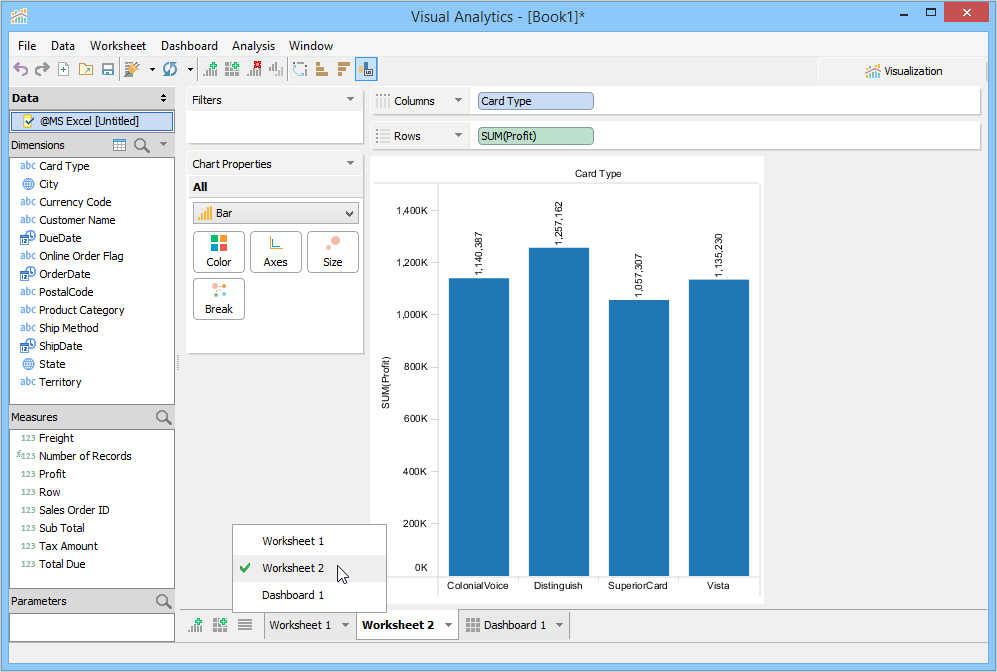

2. You can also left-click a sheet tab and choose [New Worksheet]. When a new Worksheet is created it appears in a new tab at the bottom of Visual Analytics.

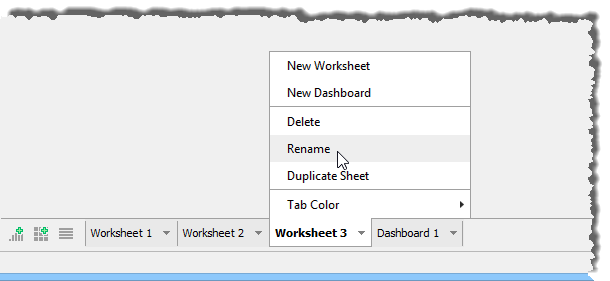

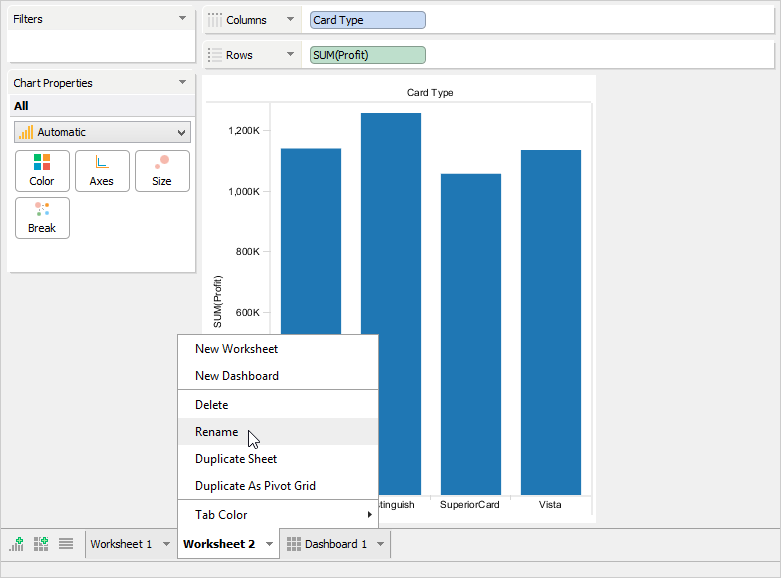

If you left click on its tab triangle, you have the option of naming it.

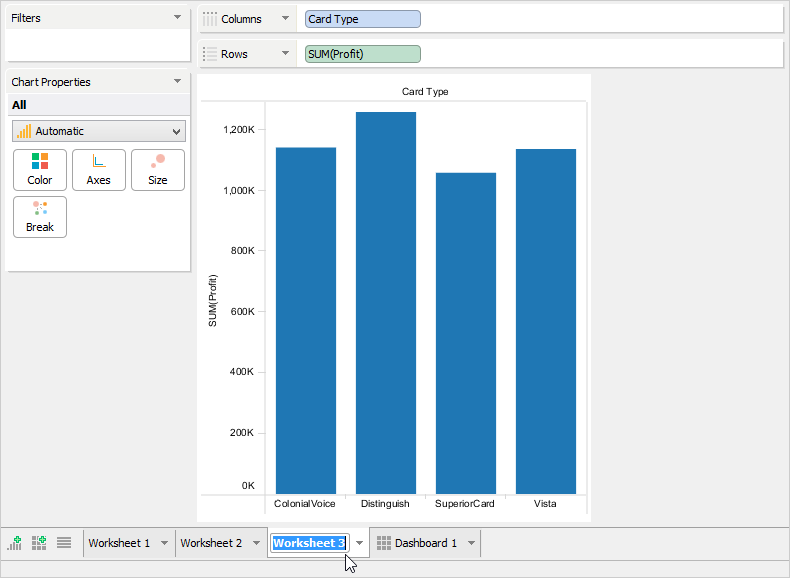

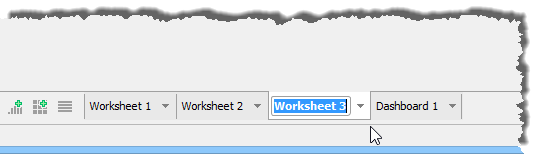

You can also rename a Worksheet by left clicking its tab text. When the text is highlighted in blue, you can type in a new name.

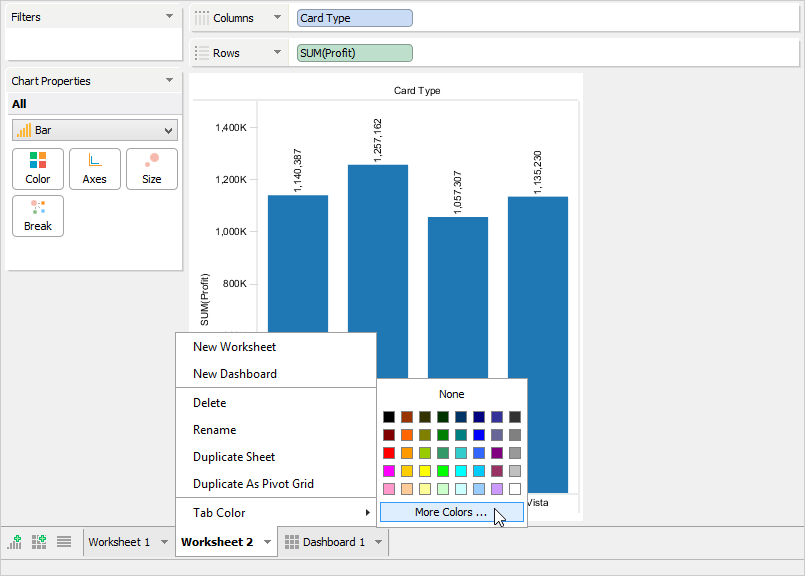

The color of a Sheet Tab can be changed by clicking on the Sheet's tab menu triangle and selecting [Tab Color].

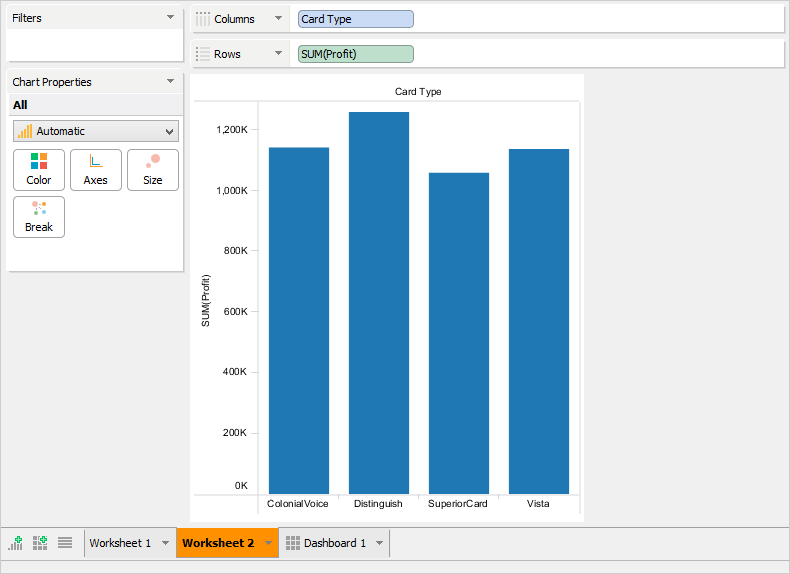

Once the Tab Color Dialog appears a color can be selected. This color is used to color the background of the tab.

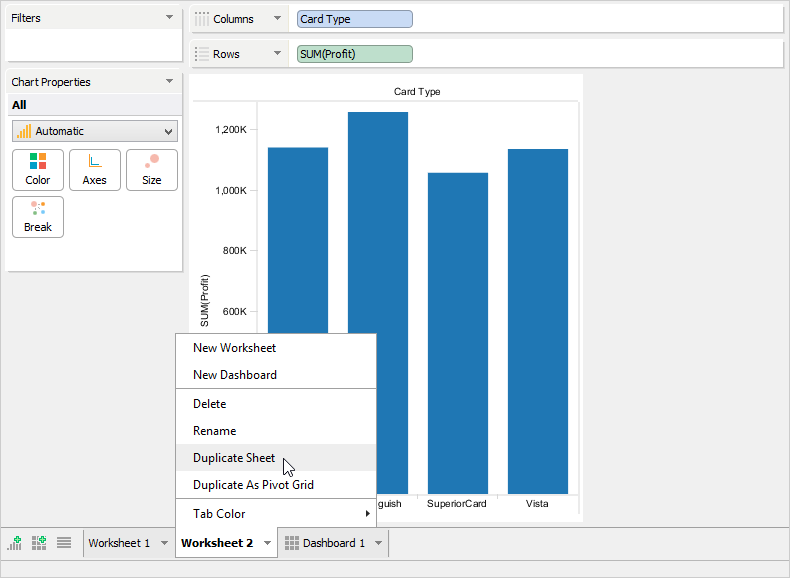

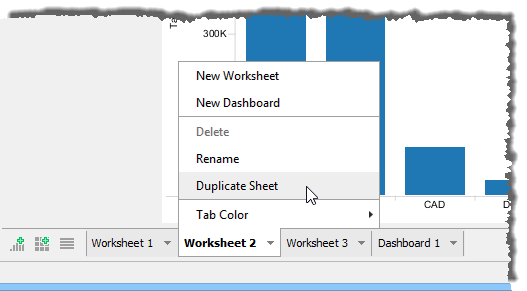

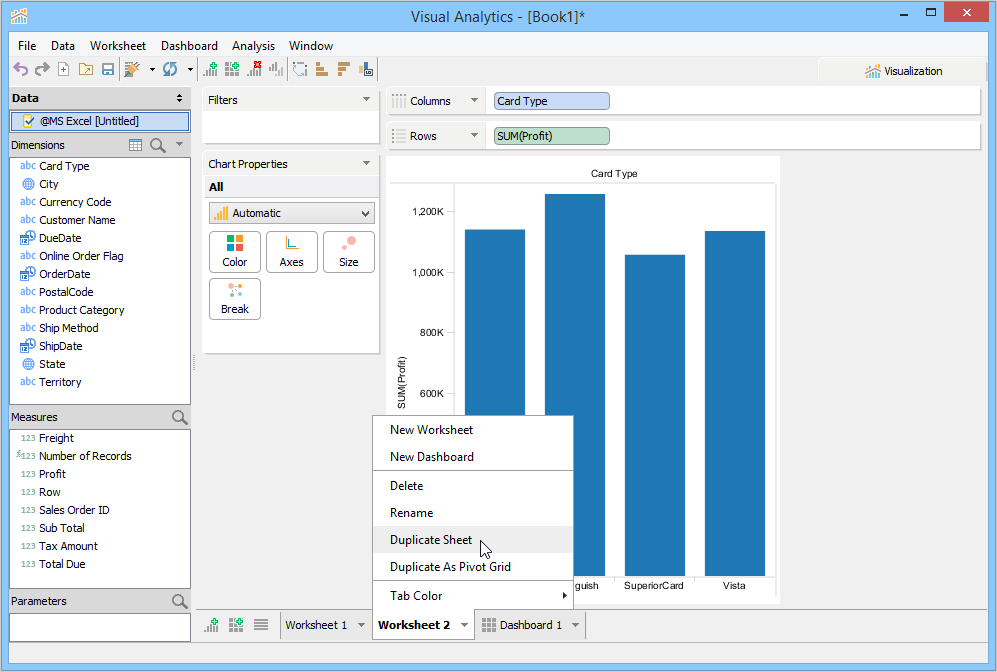

To duplicate an existing Worksheet or Dashboard, left click its tab and select [Duplicate Sheet]. This is useful for making a copy of your work so you can make modifications on existing views without altering the original content.
It is a good idea to duplicate a sheet that contains a view you have already built before you begin to make changes, so you have a copy of your previous work. You can also use Undo and Redo if you need to undo/redo an action you performed.

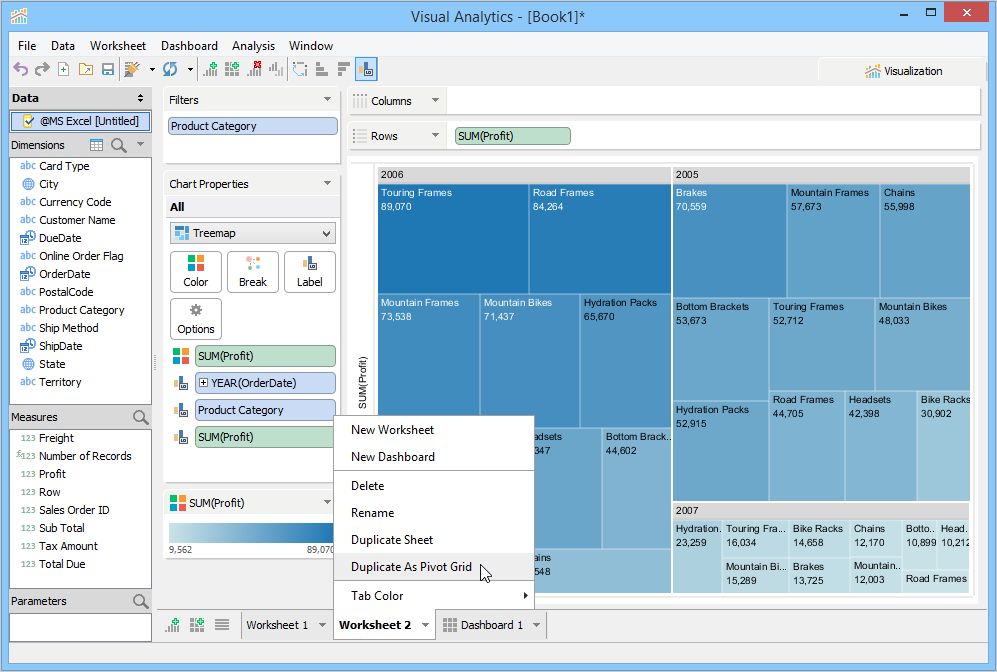

Duplicate As Pivot Grid in Visual Analytics creates a table (pivot grid) view of the original chart in a new worksheet.

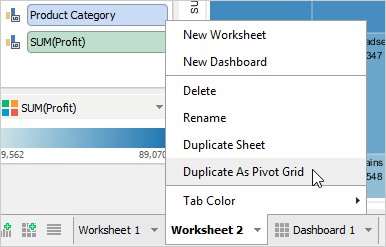

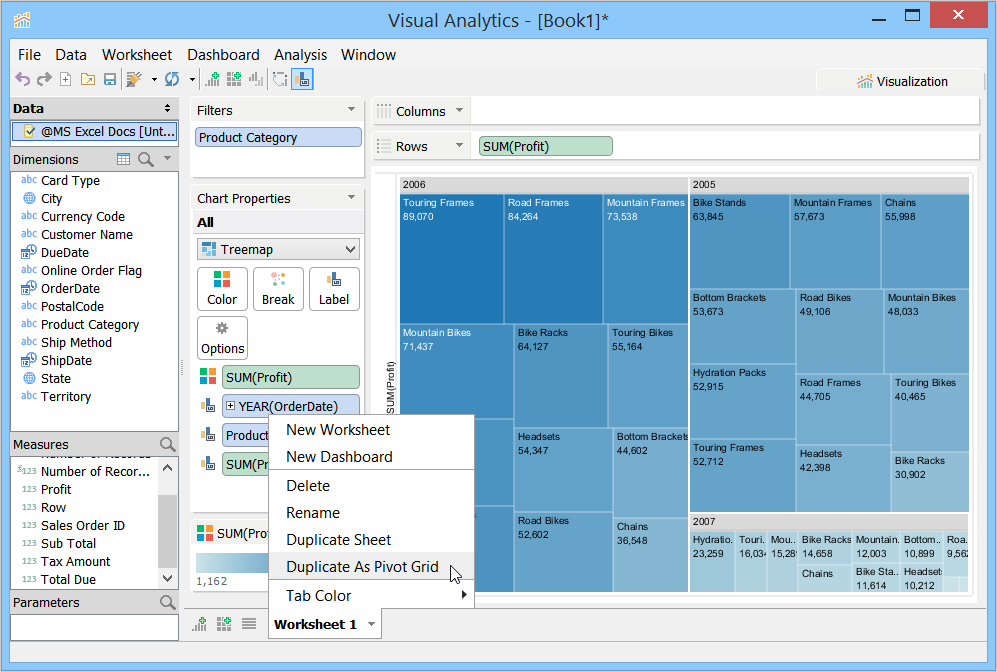

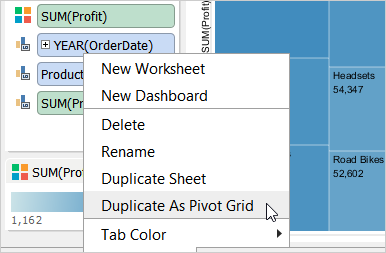

To create a pivot grid view, Visual Analytics moves the dimensions or measures from the Chart Properties Deck to the Rows or Columns Deck. You can duplicate a chart as a pivot grid by right-clicking the Worksheet Tab, or by clicking the Worksheet menu > Duplicate As Pivot Grid.
To retain values in a pivot grid view, Visual Analytics might change the definition of the table calculation while duplicating a chart.
Charts with disaggregate measures cannot be duplicated as pivot grid.

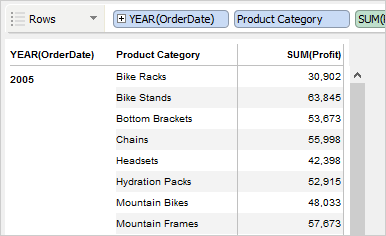

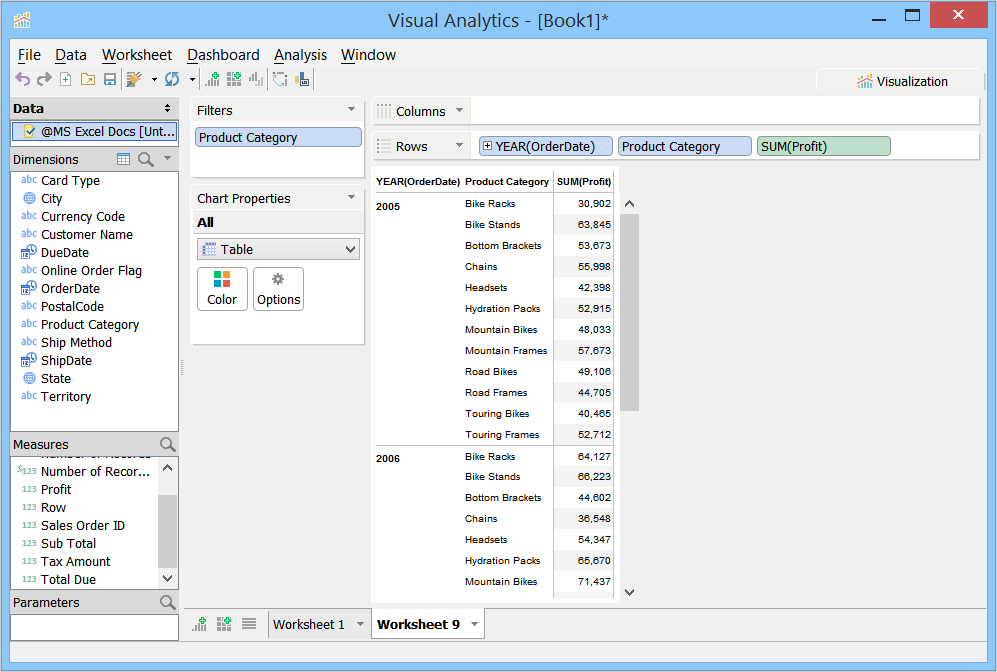

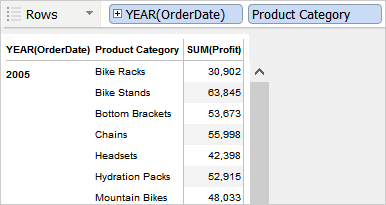

| Original View | Pivot Grid View |
|
|
|

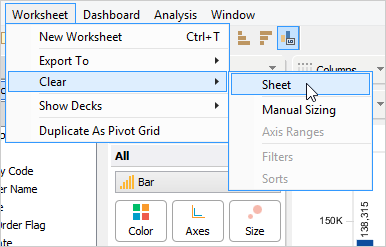

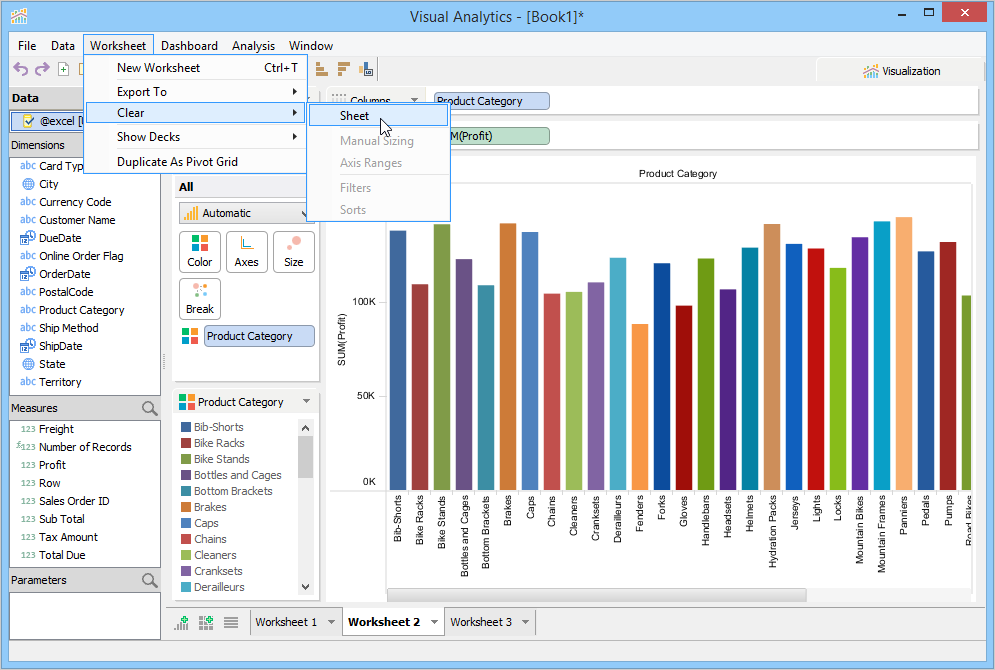

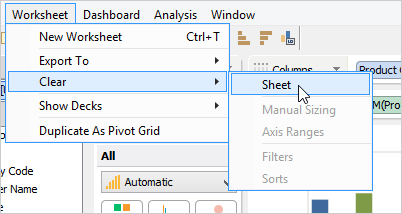

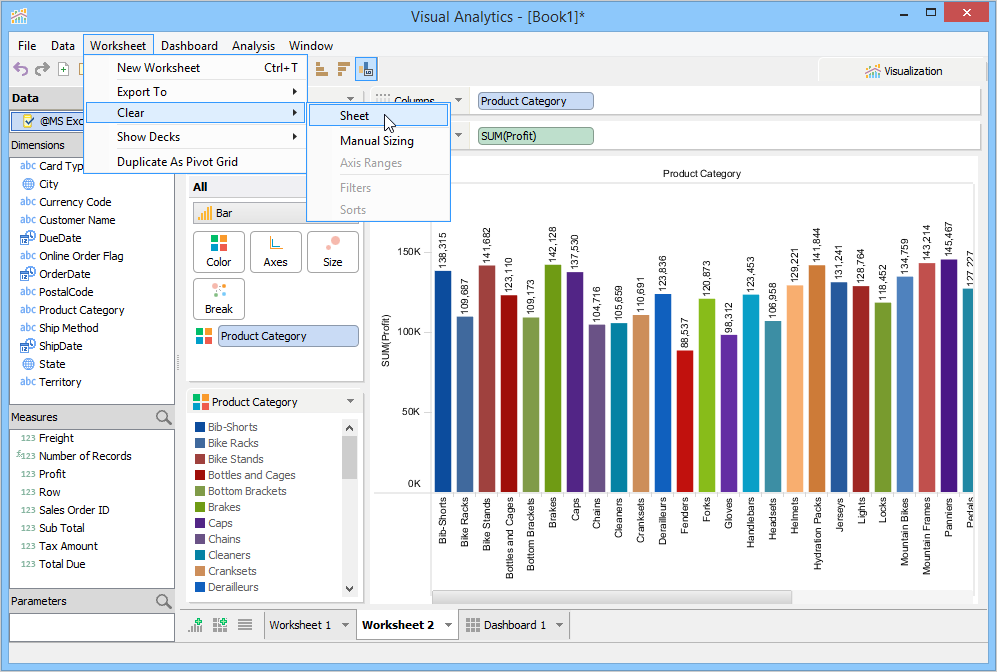

If you need to remove all of the Fields in Columns, Rows, Filters and Properties decks in the current sheet all at once you can:
Clearing a worksheet removes everything on the current worksheet at once. Therefore, clear the worksheet only when you are sure of the clear action. You can clear individual decks one at a time by using their menu triangles. To save your previous work, you can duplicate a sheet before deleting the worksheet.
If you need to remove the manual sizing of all of the decks in your sheet you can choose [Worksheet > Clear > Manual Sizing].
If you need to remove the axis modifications in your sheet you can choose [Worksheet > Clear > Axis Ranges].
If you need to remove all of the sortings in your sheet you can choose [Worksheet > Clear > Sorts].
If you need to remove all of the filters in your sheet you can choose [Worksheet > Clear > Filters].

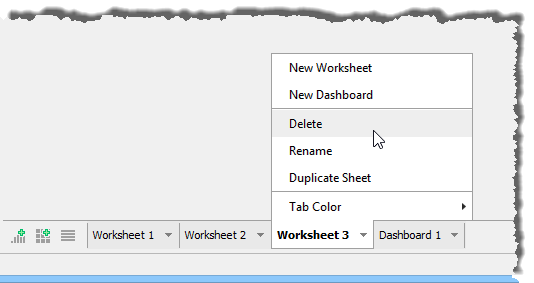

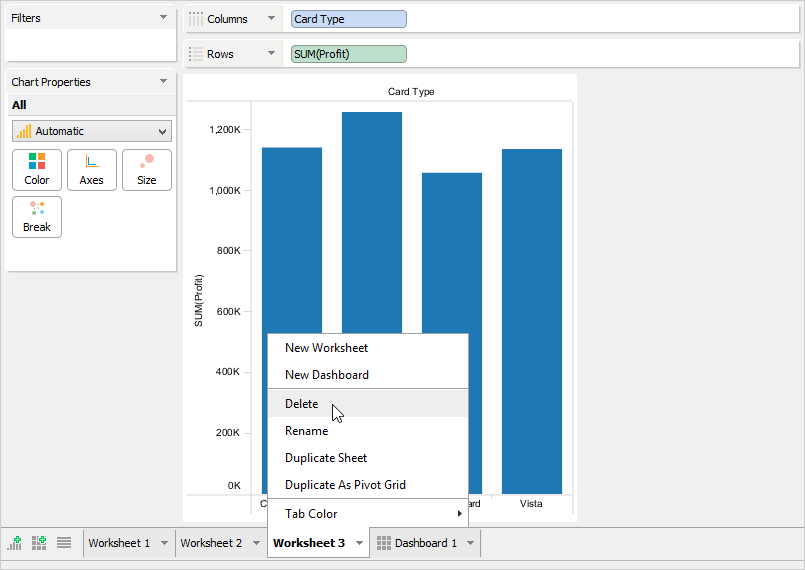

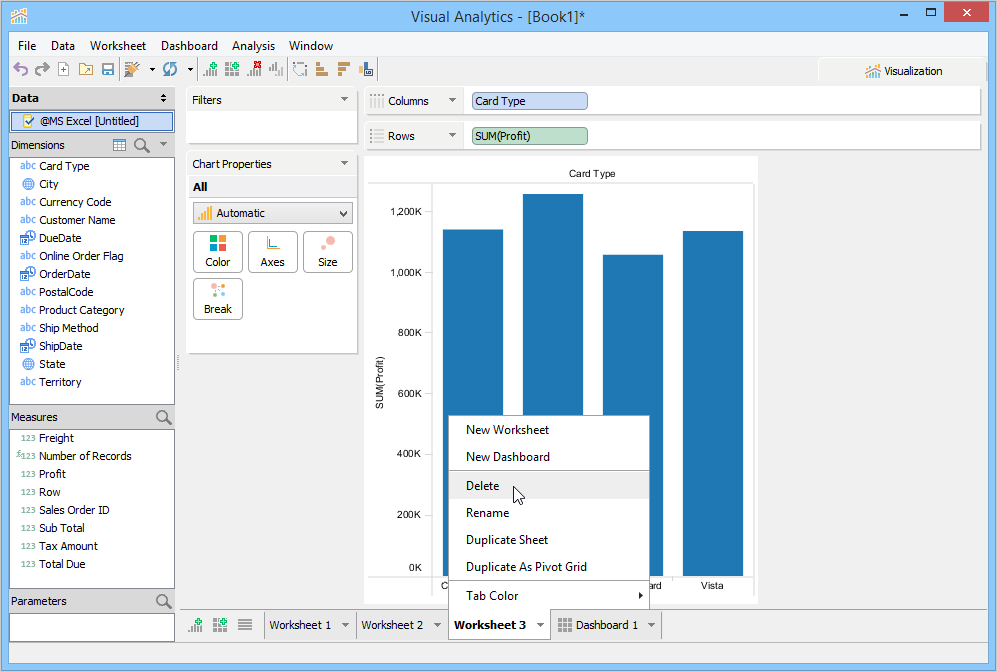

To Delete a Worksheet or Dashboard left click on its tab at the bottom of the Visual Analytics and choose [Delete].
All references to the worksheet must be removed before deleting it is permitted. Worksheet Tabs that are in use within a Dashboard will have their [Delete] option grayed out until all references to it are removed.
