Aqua Data Studio / nhilam
If you have any issues connecting to your Oracle instance, make sure that you can ping your server with ’tnsping’.
Make sure you have the correct JDBC driver if you are connecting through OCI libraries. (Drivers)

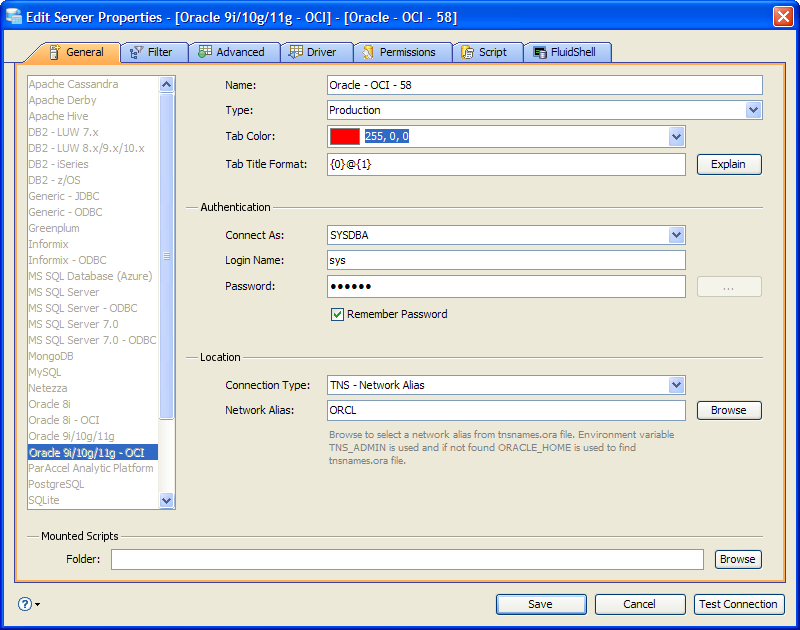

To Identify Server Environments, whether it is a Production, Development or Test, use Tab Coloring feature:
Using the Keyboard combination "CTRL + SHIFT + P", you may quickly access Server Properties and edit Tab Coloring options.

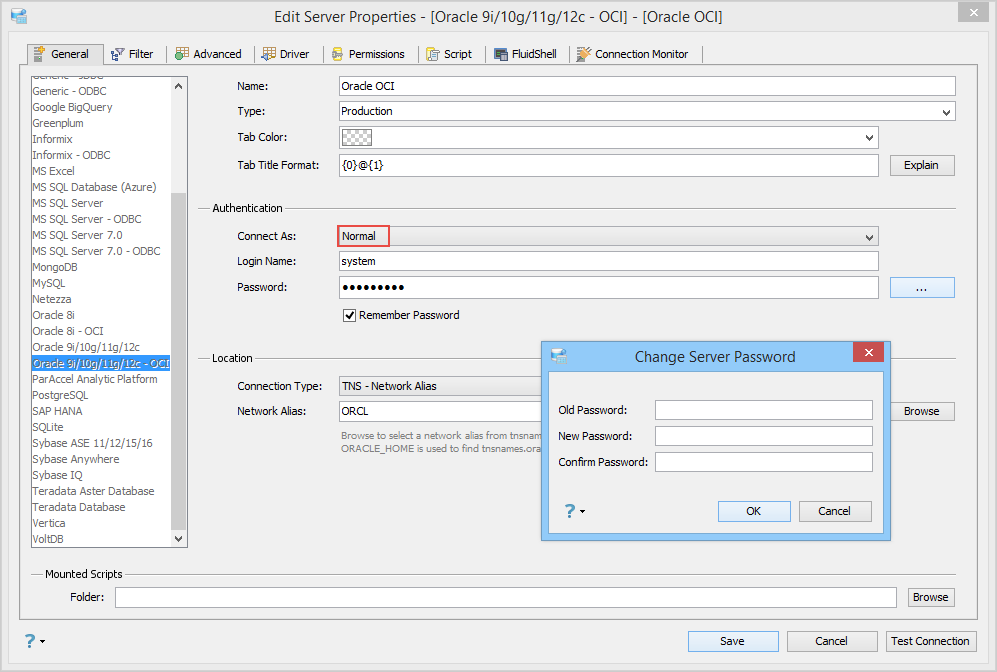

Change Server Password
You can change the password of the server connection while you are connected as a Normal user. Changing password will only work under the following conditions:
1) The OCI client library version should match the server version exactly. If the server is v184.108.40.206 then the OCI driver must be for v220.127.116.11. The user should copy the matched, version-specific jdbc drivers .jar file(s) from oracle client installation to ADS_HOME/drivers/lib (for more on how to do this, see our Drivers page).
2) The environment variable TNS_ADMIN should be configured to the directory containing tnsnames.ora file.

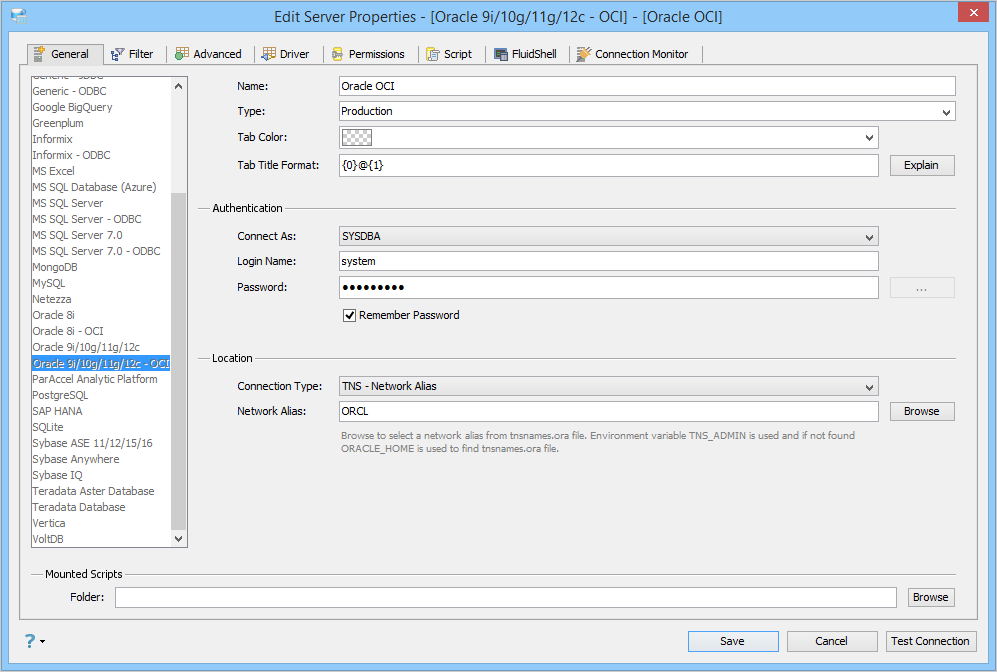

Browse to select a network alias from the tnsnames.ora file. TNS - Network Alias uses the Environment Variable TNS_ADMIN is used and if it is not found, the Environment Variable ORACLE_HOME is used to find the tnsnames.ora file.

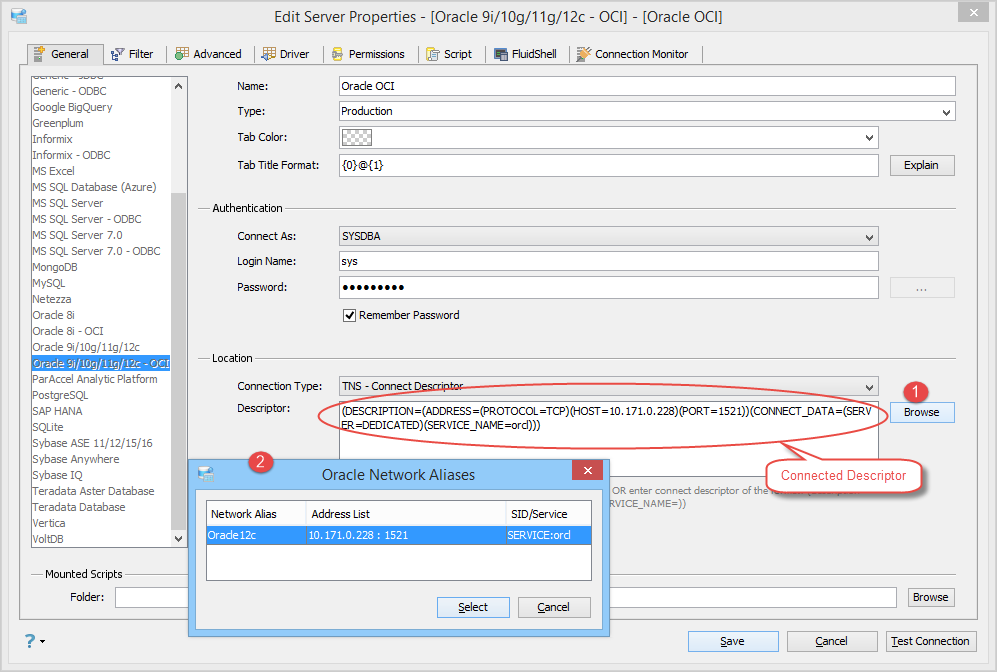

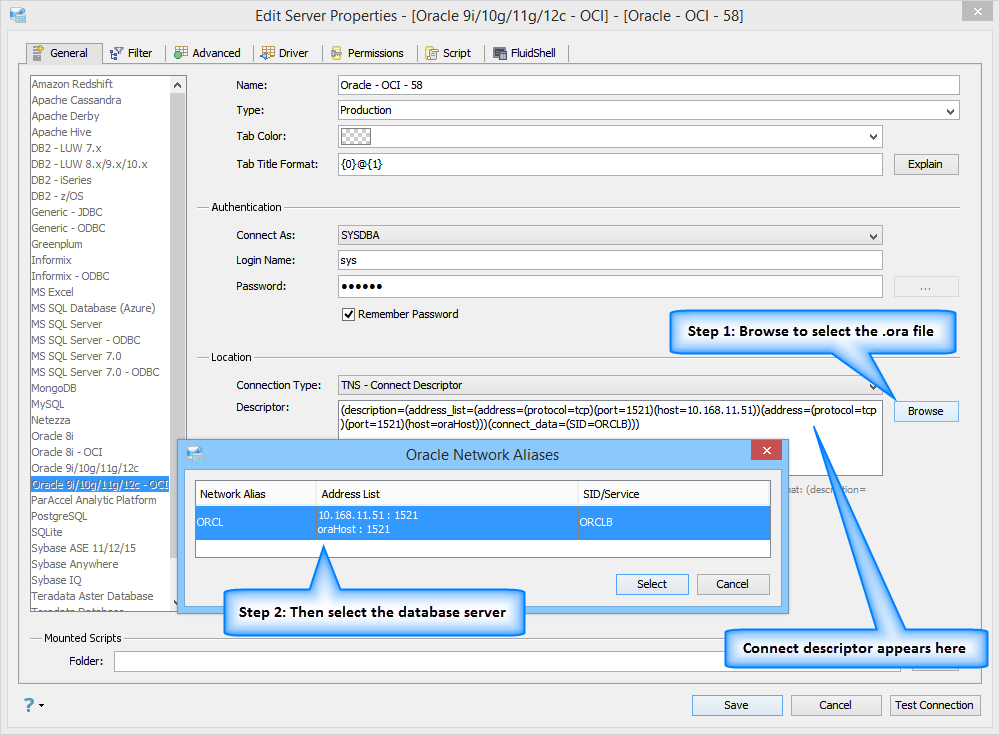

Aqua Data Studio also allows you to connect to Oracle RAC and Oracle Connection Manager by entering into the Descriptor field.
(description=(address_list=(address=(protocol=tcp)(port=1610)(host=webHost)) (address=(protocol=tcp)(port=1521)(host=oraHost))) (connect_data=(INSTANCE_NAME=orcl))(source_route=yes))
(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=TCP)(HOST=PRIMARY_NODE_HOSTNAME)(PORT=1521)) (ADDRESS=(PROTOCOL=TCP)(HOST=SECONDARY_NODE_HOSTNAME)(PORT=1521))) (CONNECT_DATA=(SERVICE_NAME=DATABASE_SERVICENAME)))
(DESCRIPTION=(FAILOVER=ON)(ADDRESS_LIST=(LOAD_BALANCE=ON)(ADDRESS=(PROTOCOL=TCP)(HOST=xxxxx) (PORT=1526))(ADDRESS=(PROTOCOL=TCP)(HOST=xxxx)(PORT=1526))) (CONNECT_DATA=(SERVICE_NAME=somesid)))

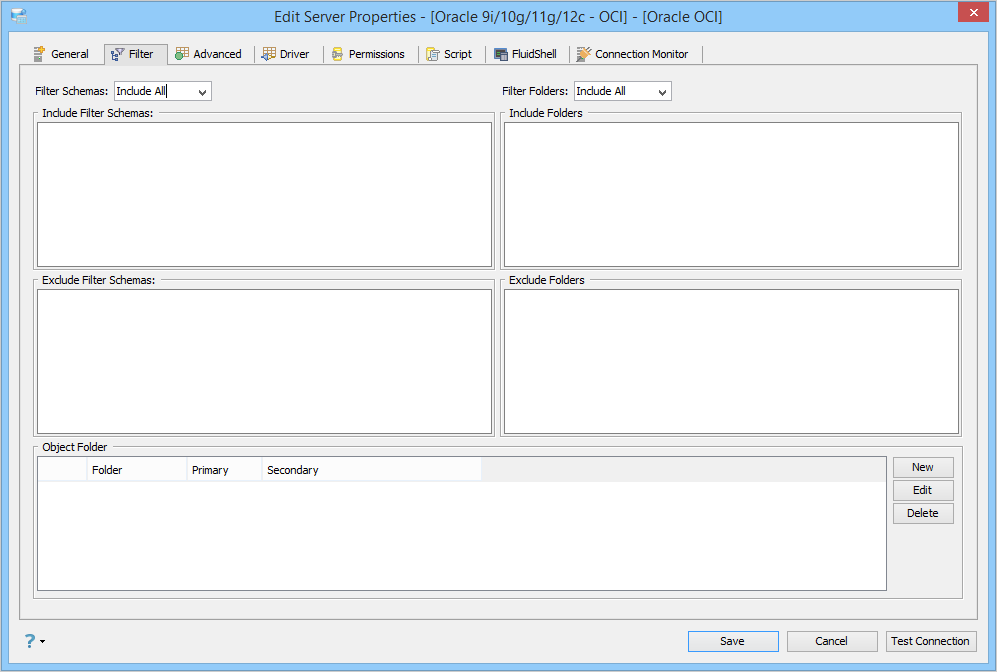

Edit the Server Properties, to use FILTER options for a Server in Aqua Data Studio:
Using the drop-down at the top of the Filter Tab, quickly change your Schema or Folder View.

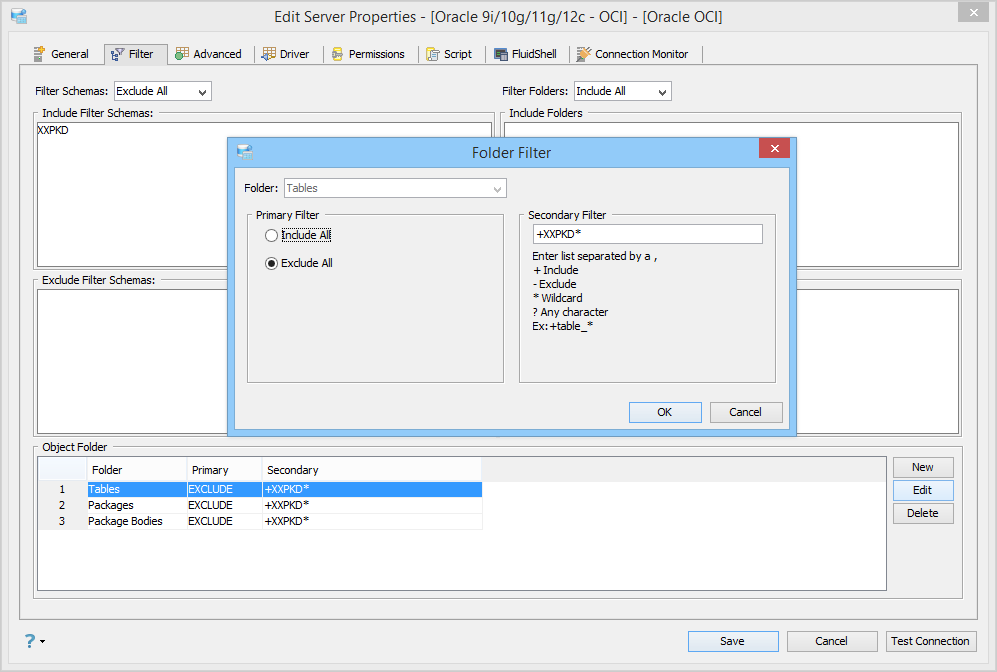

If your intention is to show only the tables that start with XXPKD, then you'll need to change your main filter to "Exclude All", and secondary filter to "+XXPKD*". Note the "+" in front of the XXPKD pattern. Also, note that the filter pattern is case sensitive.

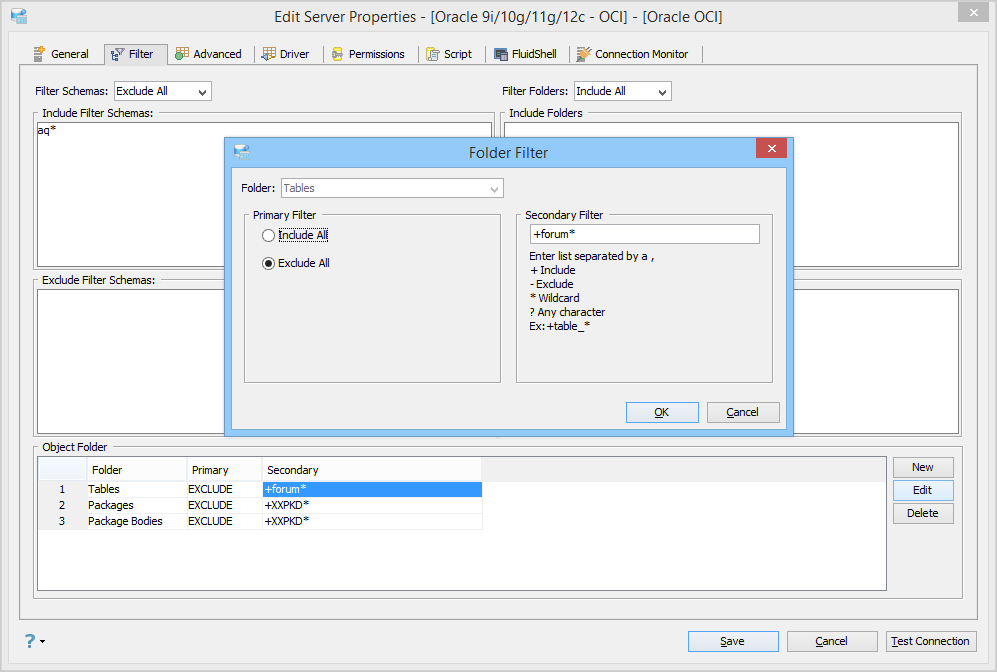

The filter shown below is set to exclude all databases except those that start with "aq". This is similar to the above example where all schemas, except the XXPKD schema, are excluded. Then, there is an "Object Folder" filter on the Tables folder, which excludes everything except those that start with "forum".

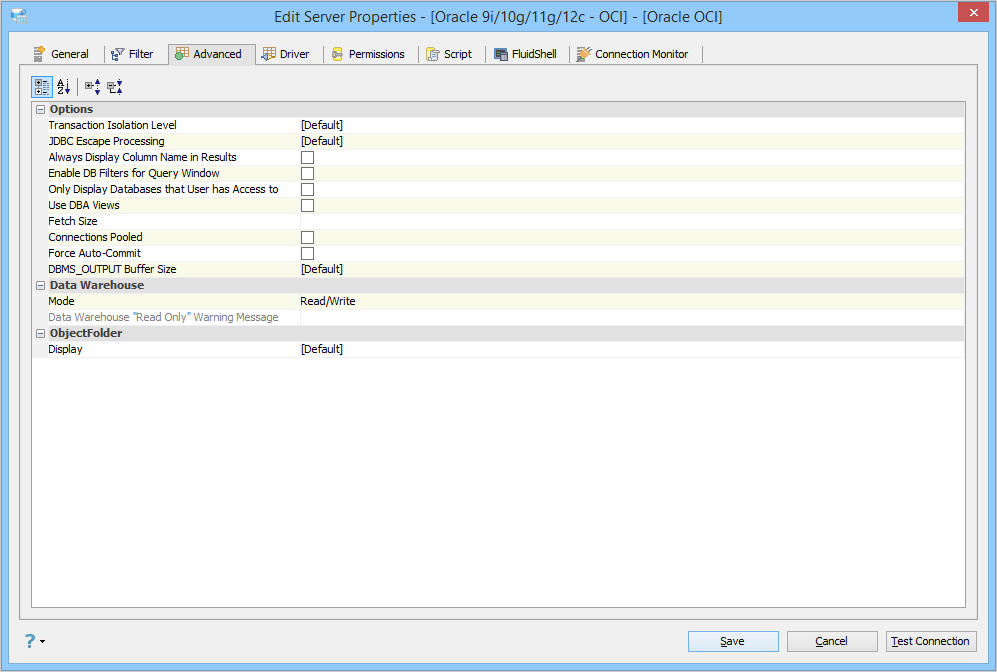

Edit the Server Properties to use Advanced Properties in Aqua Data Studio:
With options in Advanced properties of a Server, you can:
Using the drop-down at the bottom of the Advanced Tab, quickly change your Object Display in the Server Browser.

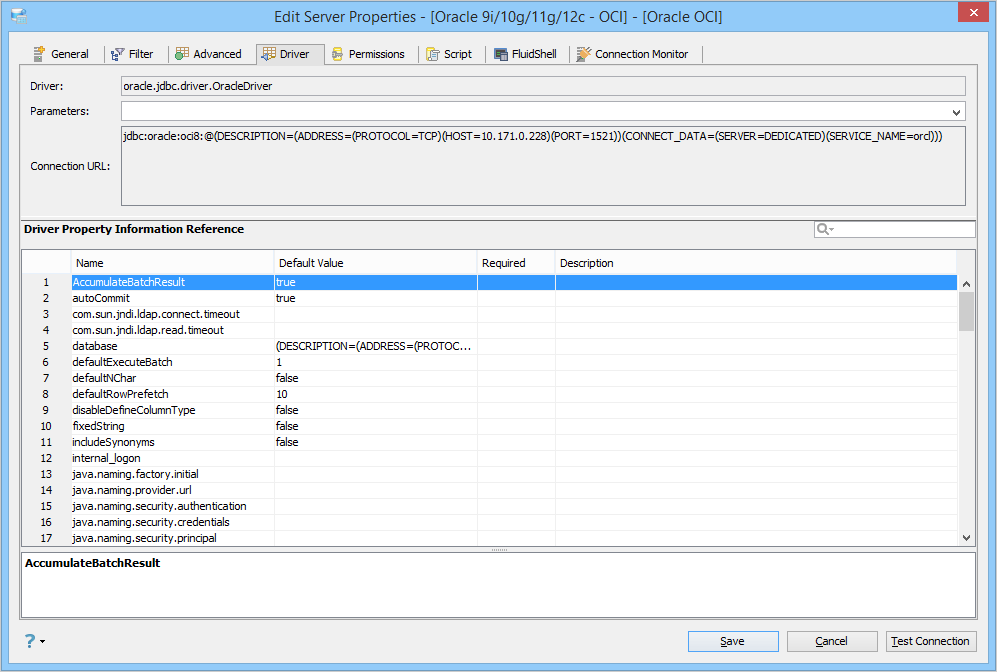

Edit the Drivers Properties to use Driver Parameters in Aqua Data Studio:
With options in Driver properties of a Server, you can edit/view the:

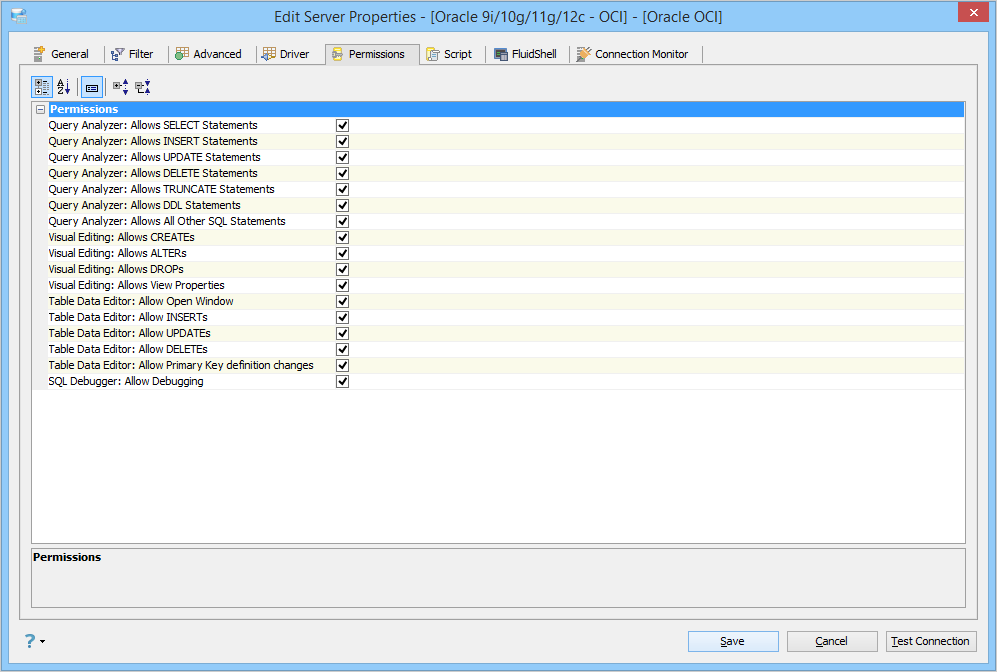

Edit the Permissions in Server Properties in Aqua Data Studio:
With options in Permissions Tab of a Server, you can:

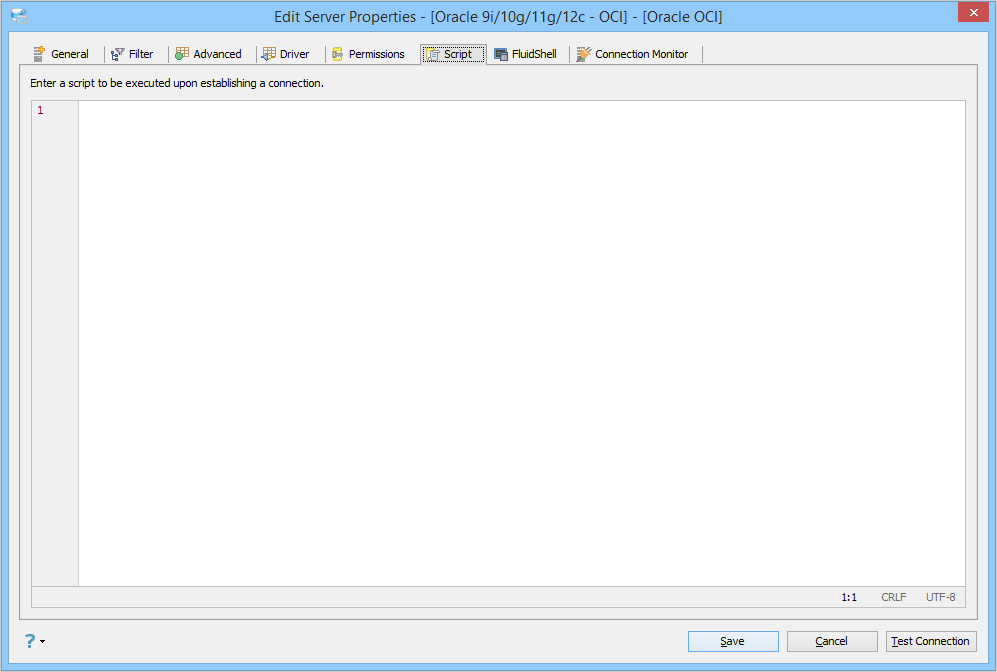

Edit Scripts in Server Properties in Aqua Data Studio:
With scripts in the Script Tab of a Server, you can:

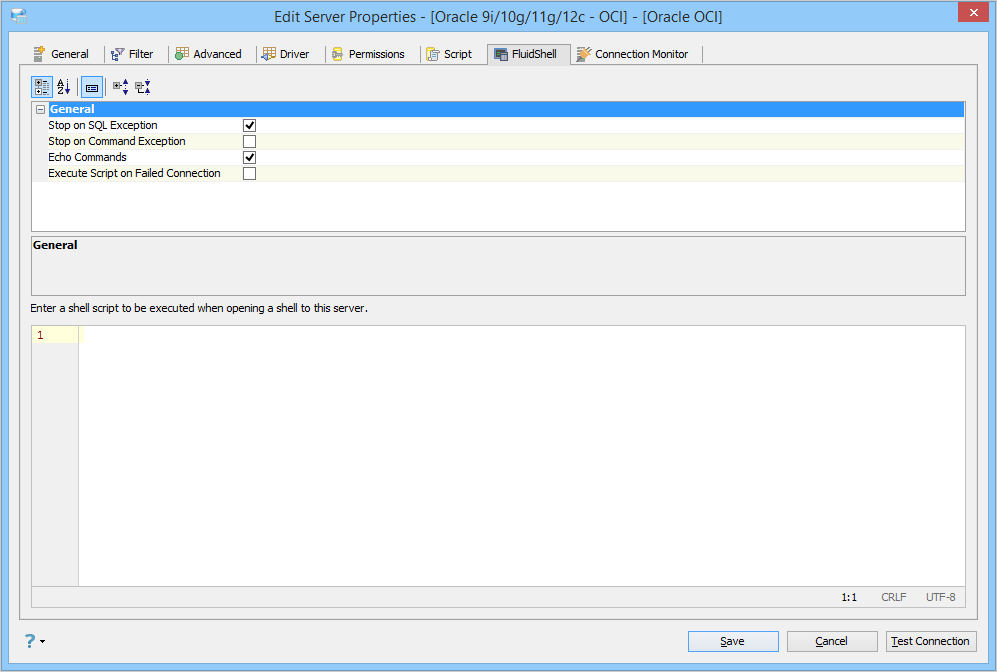

Edit Shell Scripts in Server Properties in Aqua Data Studio:
With scripts in the FluidShell Tab of a Server, you can:
