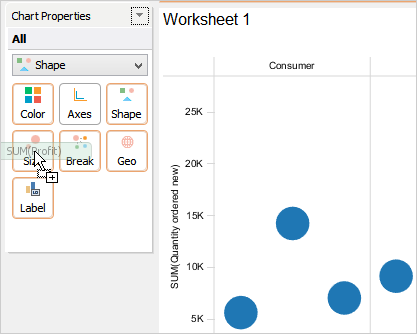

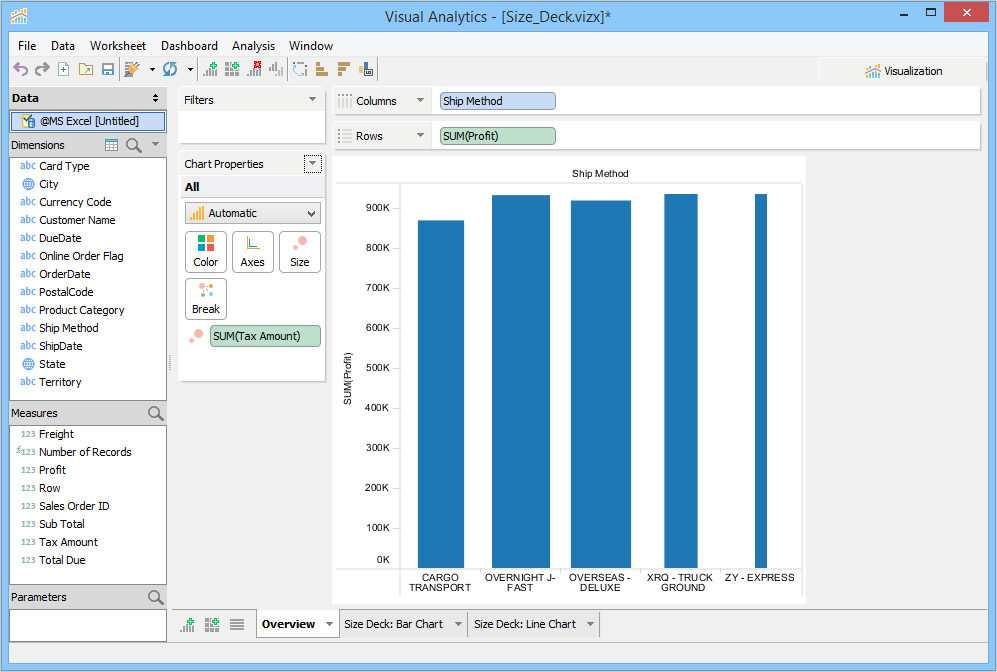

The Size Deck can be used for resizing bars and shapes of Bar, Shape, Line and Symbol Map charts. To resize bars or shapes, in the Chart Properties Deck, click Size Deck.

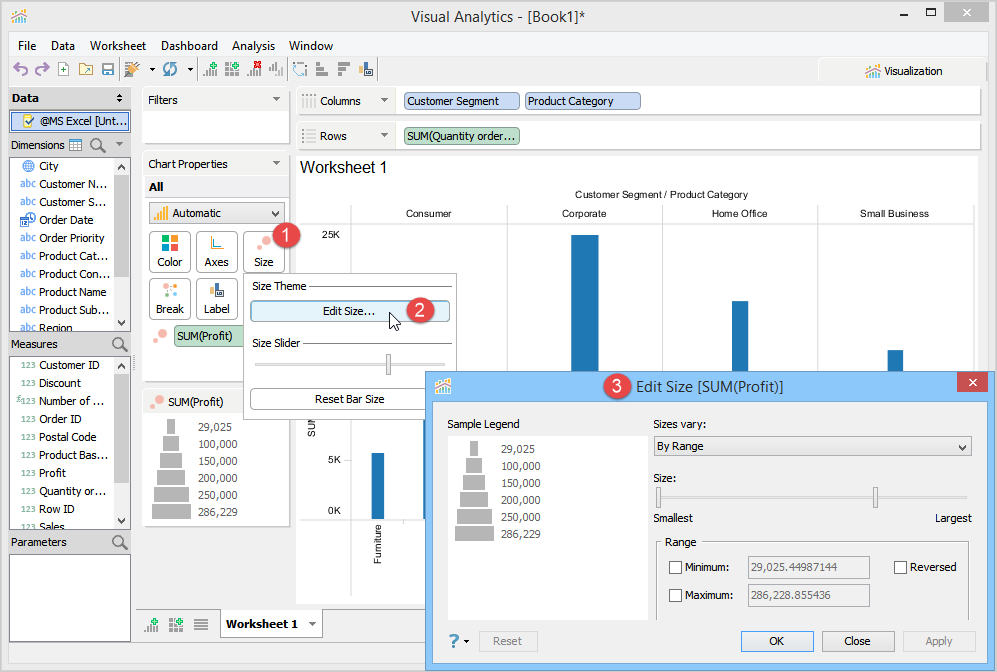

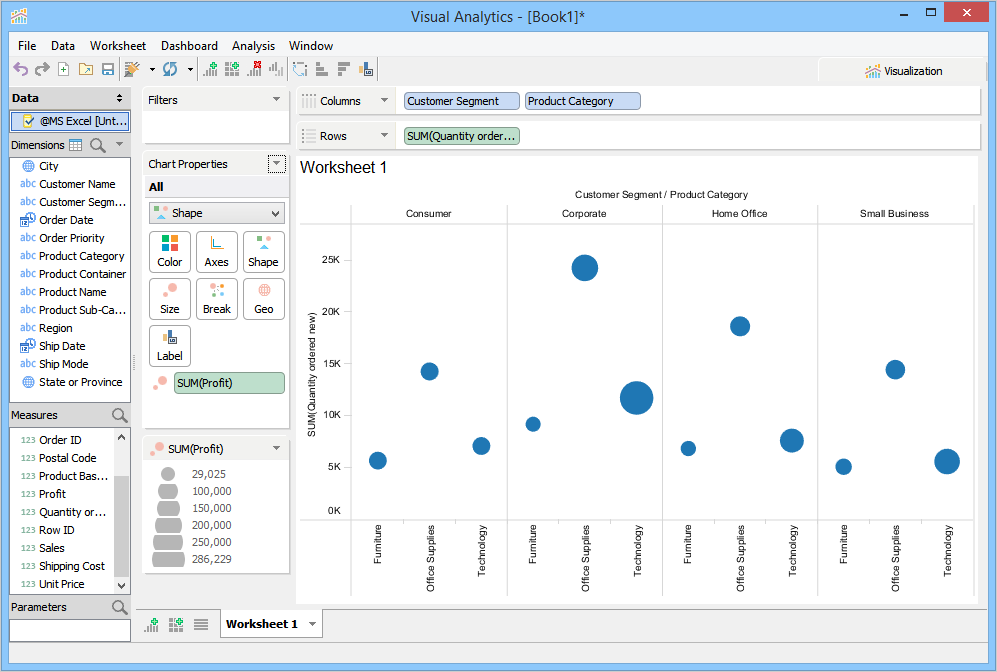

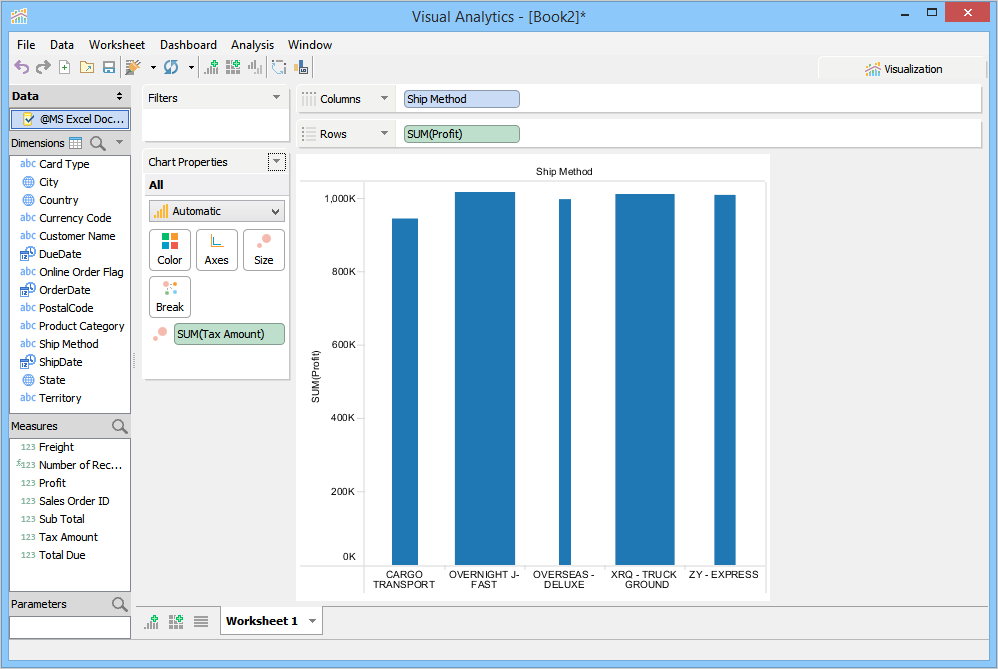

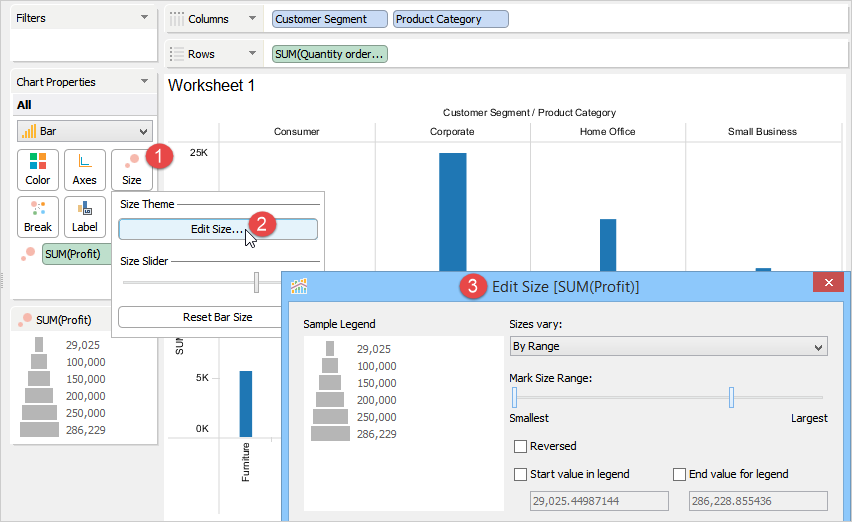

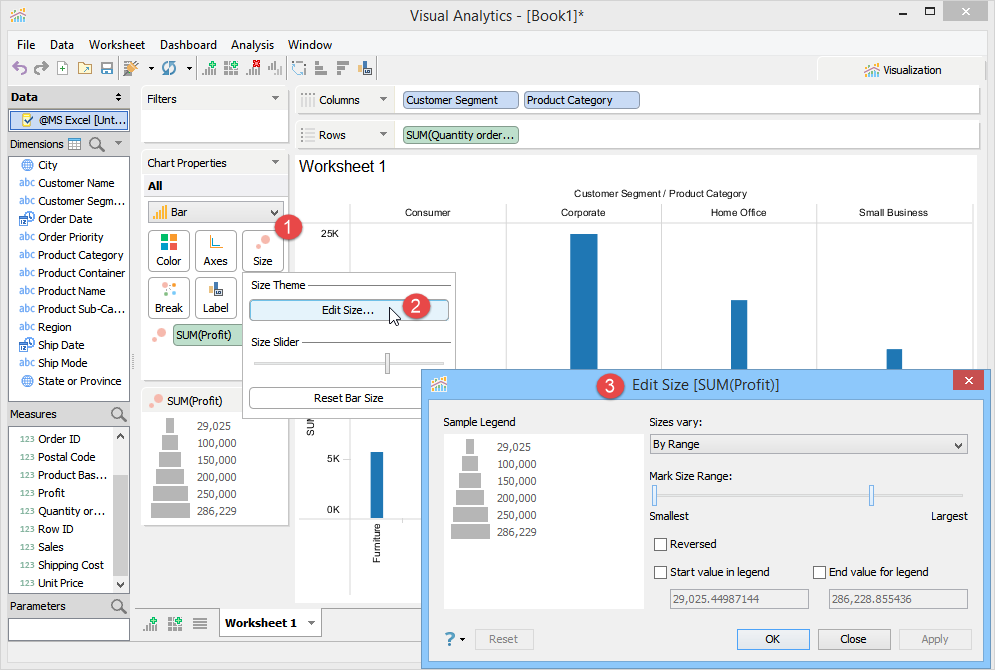

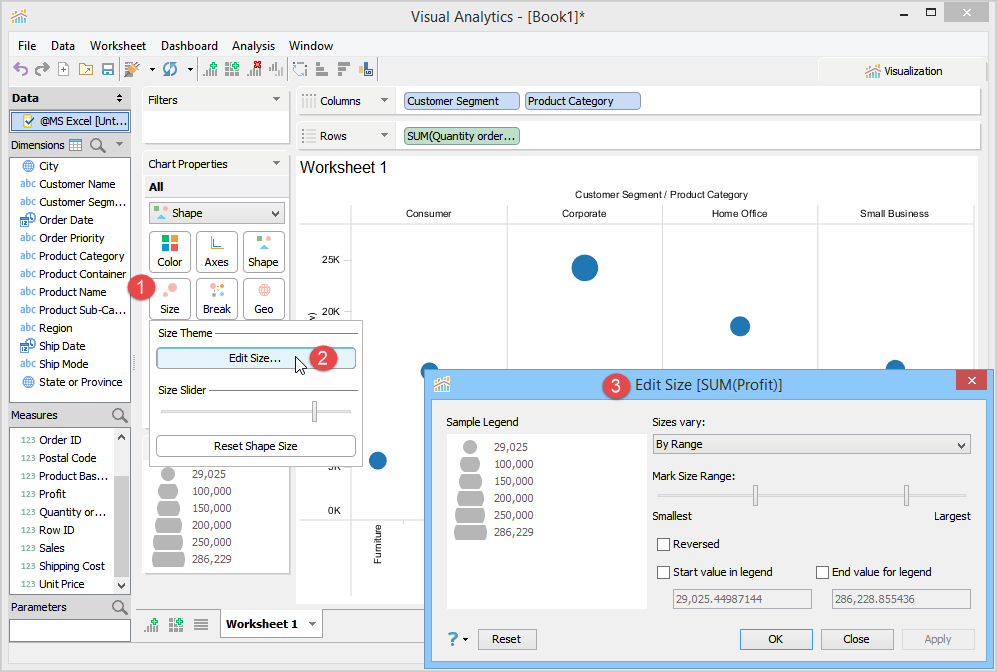

When a measure is placed in the Size Deck, Visual Analytics displays a size legend below the Chart Properties Deck. The legend shows the range and size distribution for that measure. The smallest size represents the lowest value, and the largest size represents the highest value. To edit the size legend, click Size Deck > Edit Size.
The edit size dialog contains various options using which you can edit the size legend.

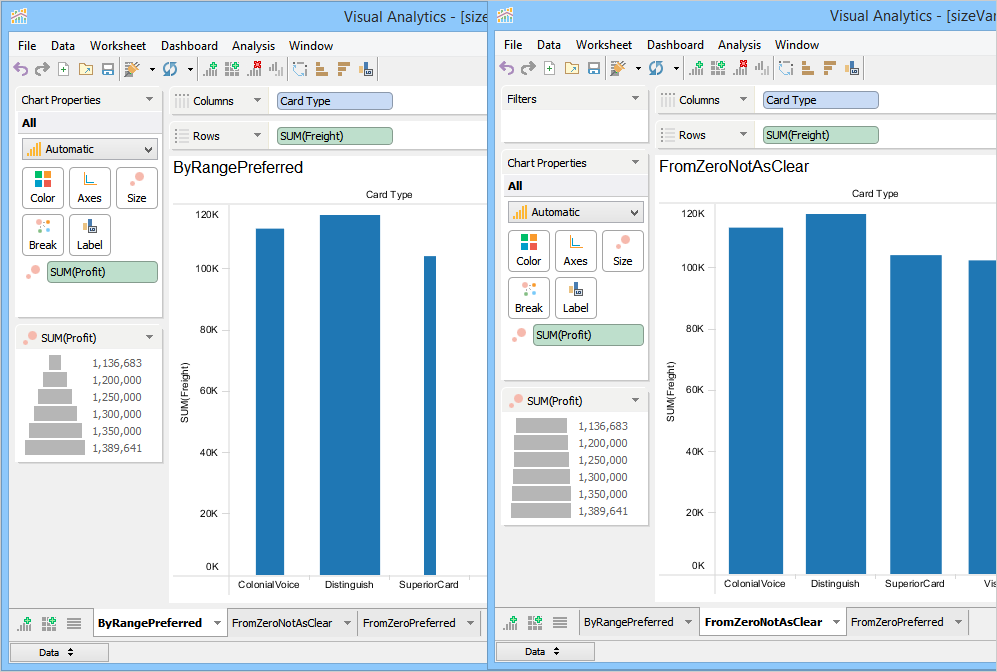

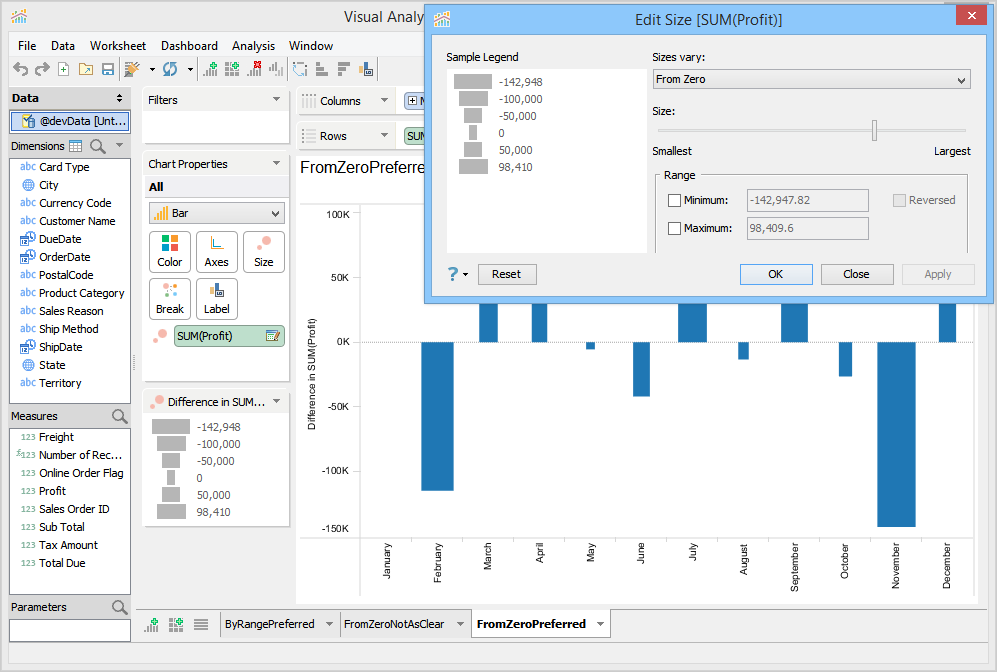

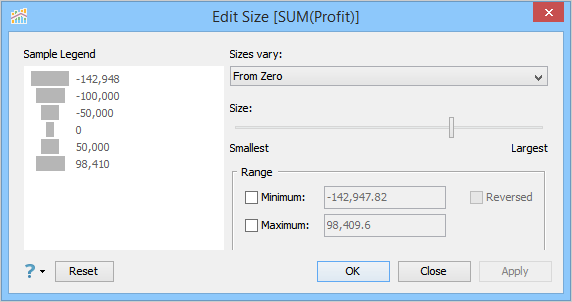

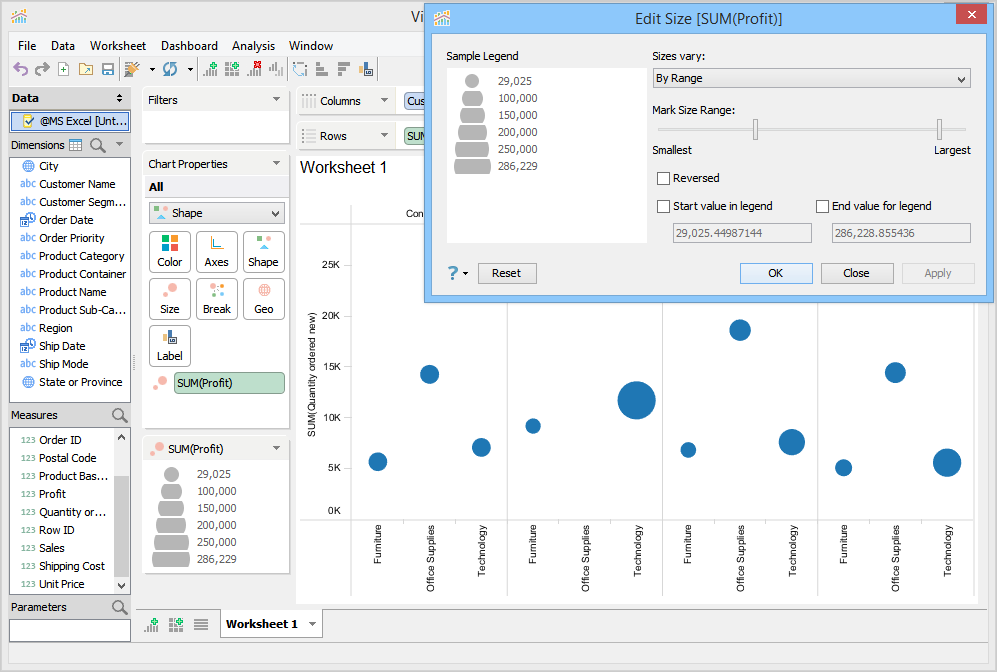

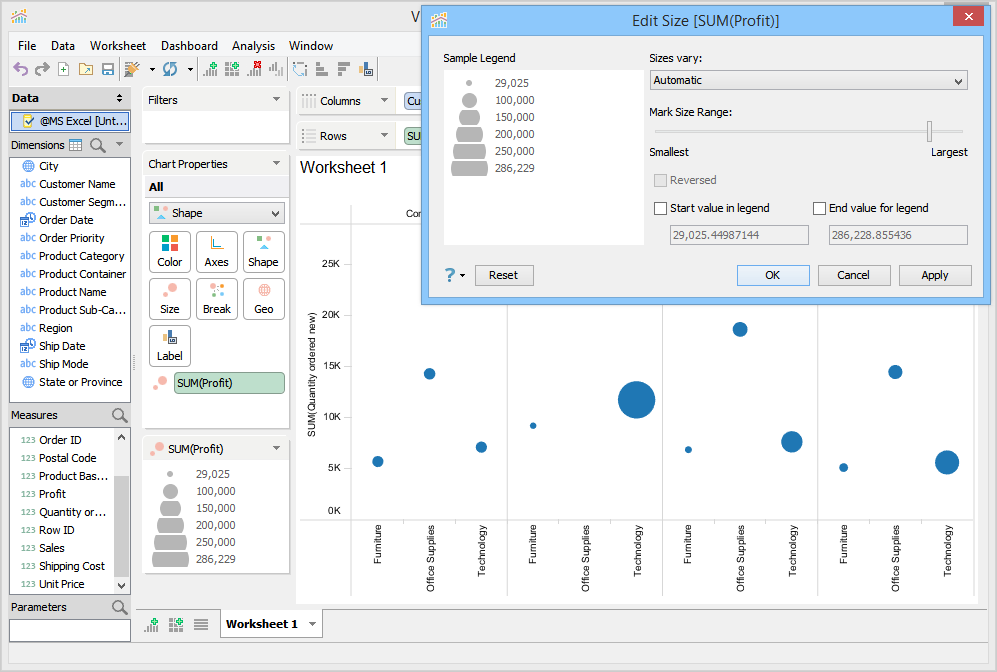

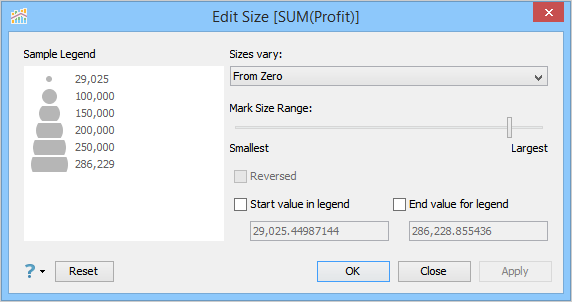

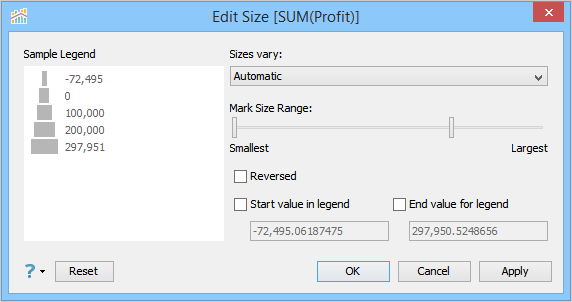

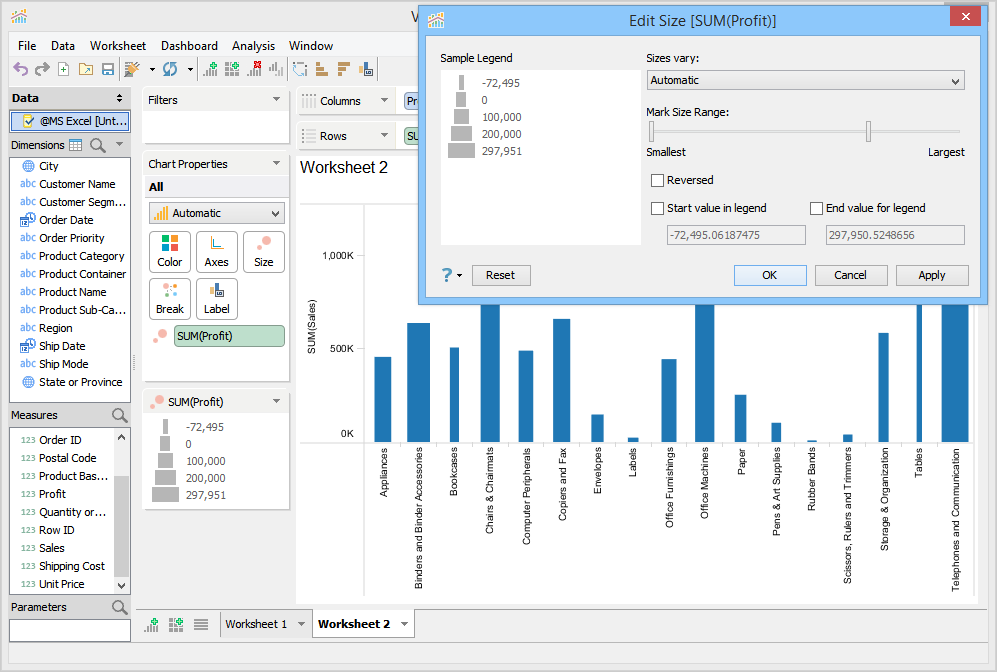

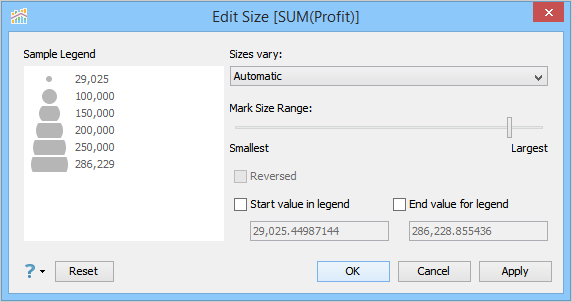

From the Sizes Vary drop-down, select one of the following options:

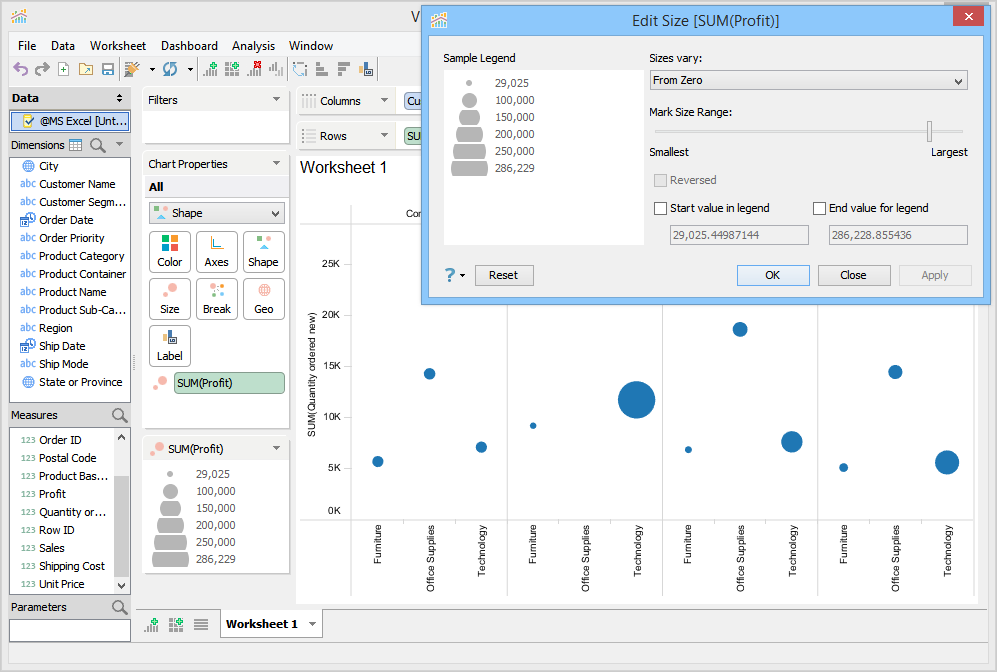

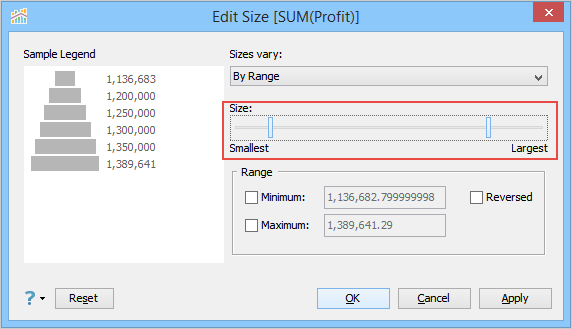

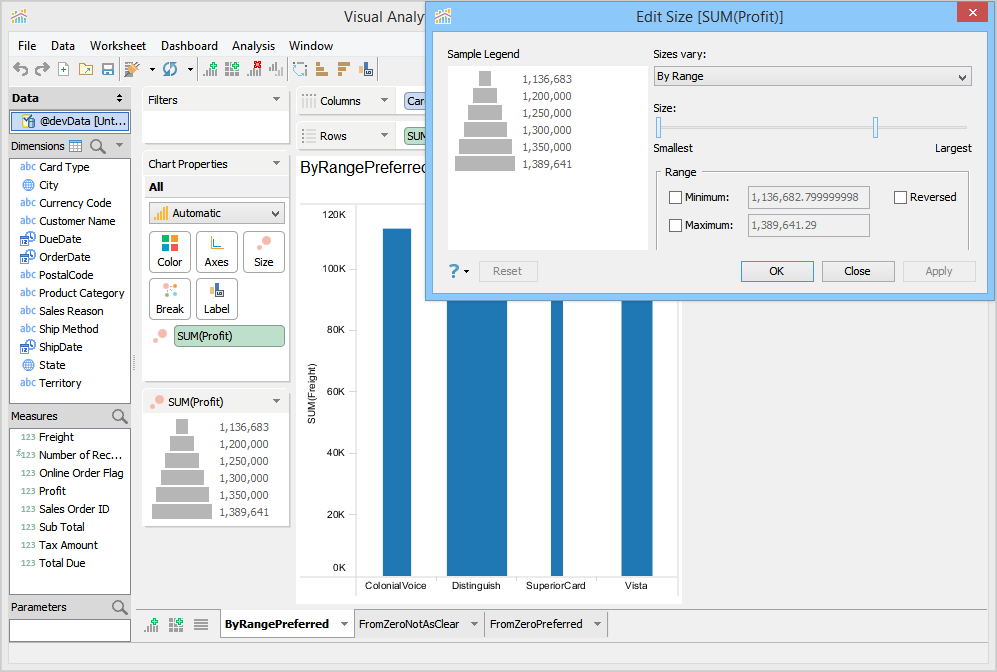

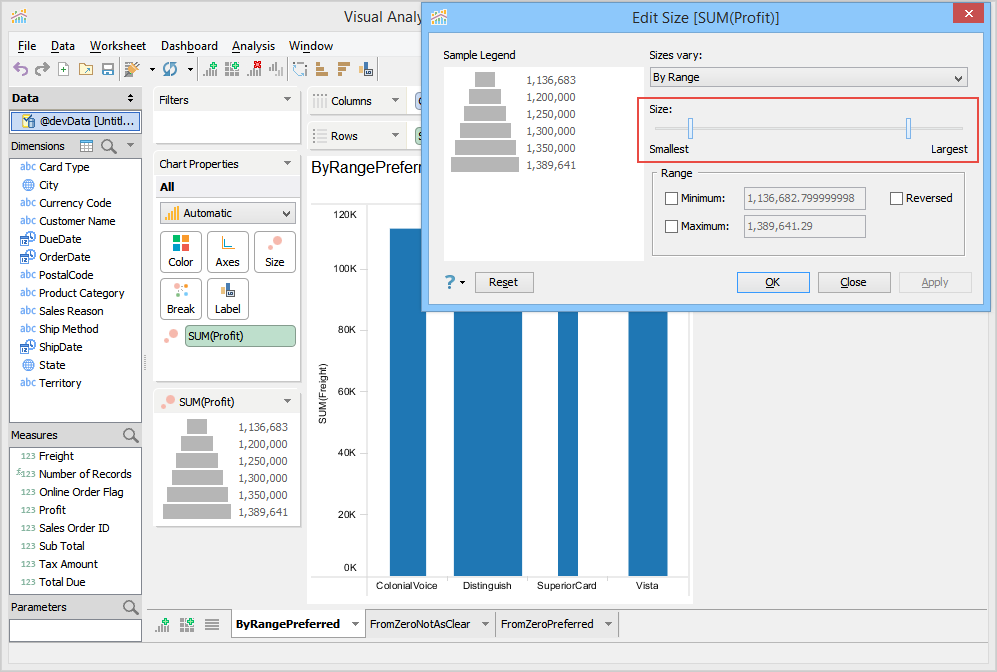

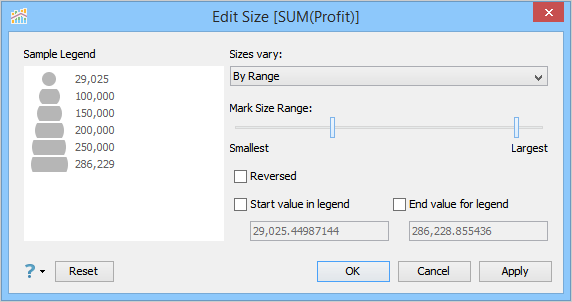

You can use the Size slider to adjust the assigned size distribution for each range. The left slider controls the minimum possible size. The right slider controls the maximum. With By Range, you can adjust both smallest and largest values. With From Zero, you can only adjust the largest values.

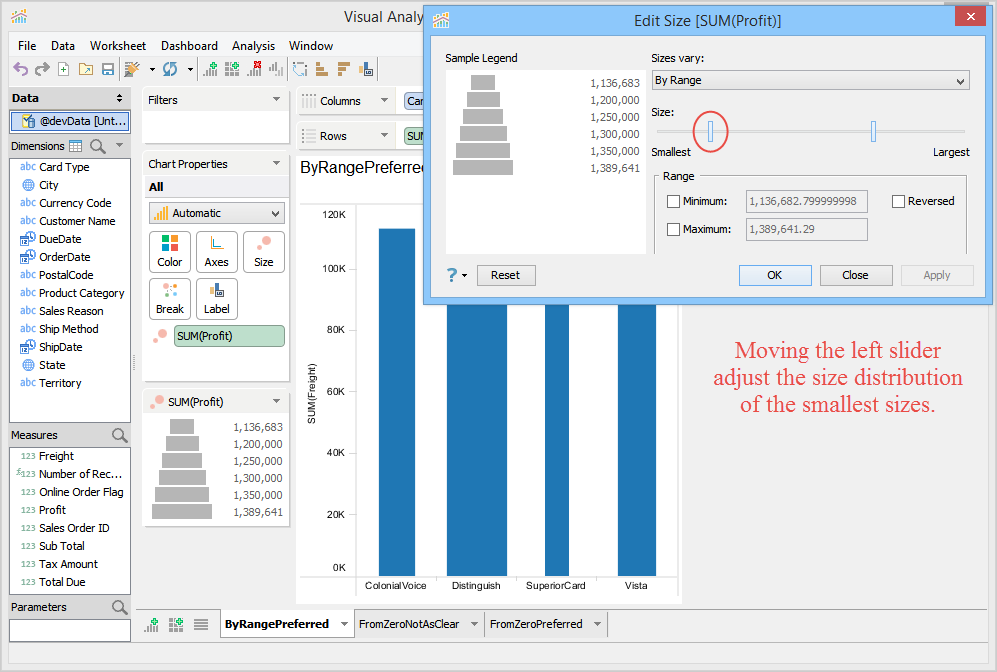

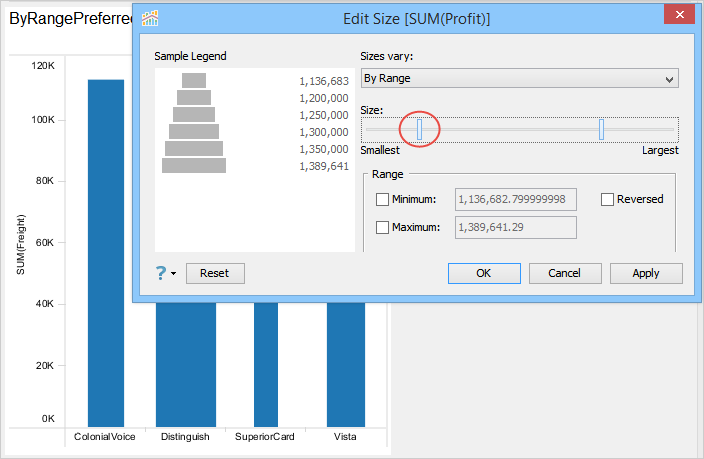

Adjusting the left slider to control the size distribution of the smallest sizes

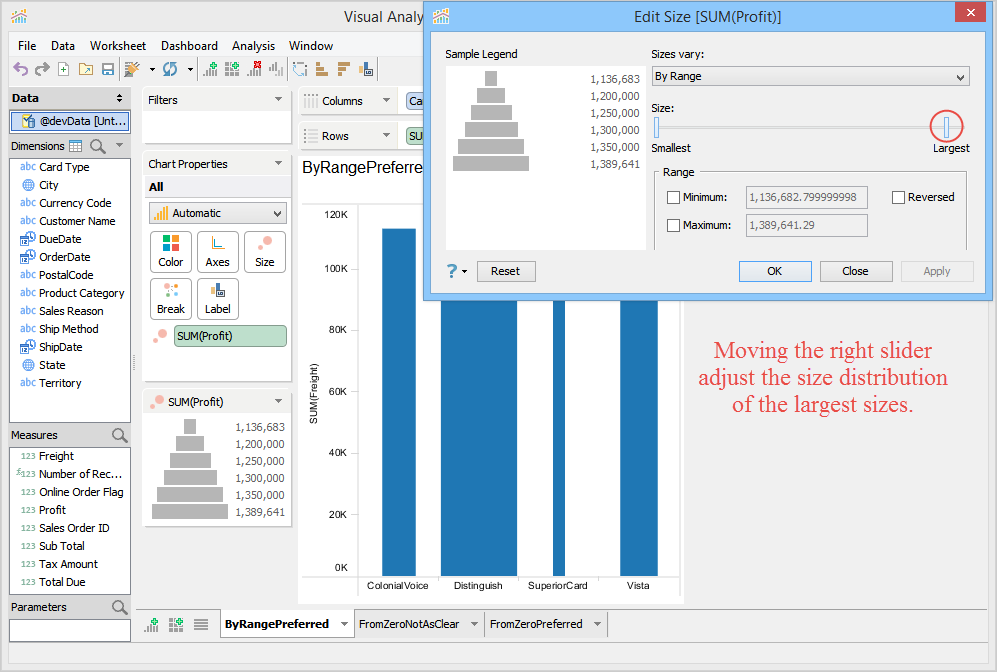

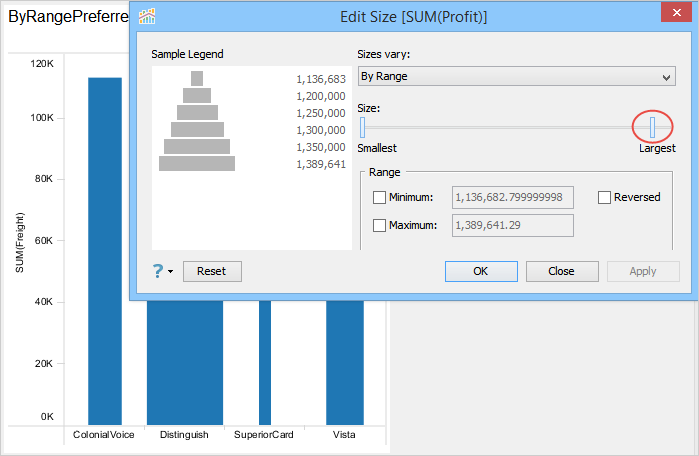

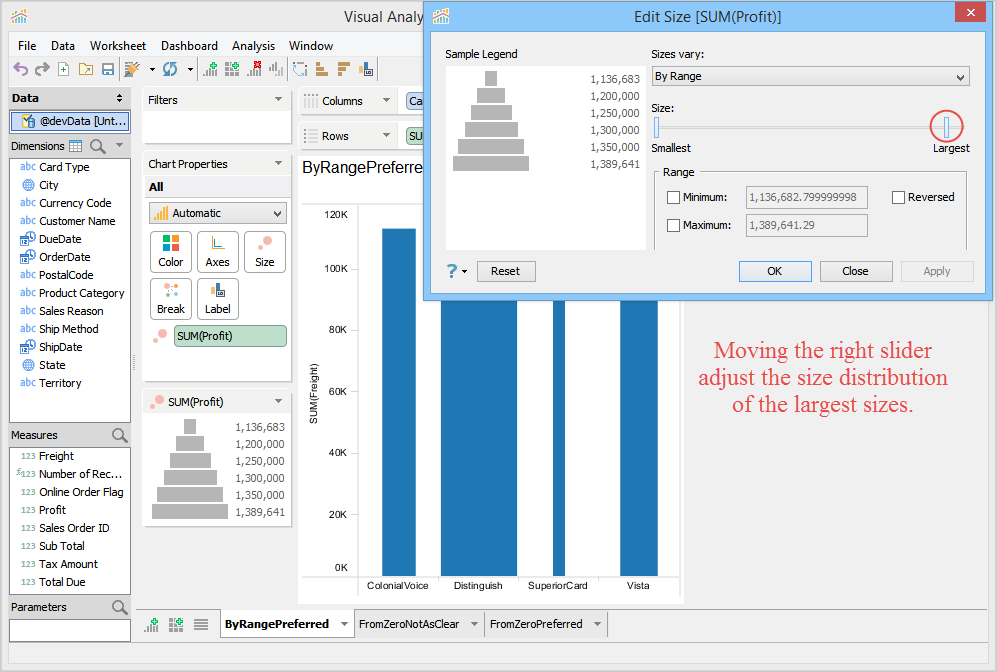

Adjusting the right slider to control the size distribution of the largest sizes

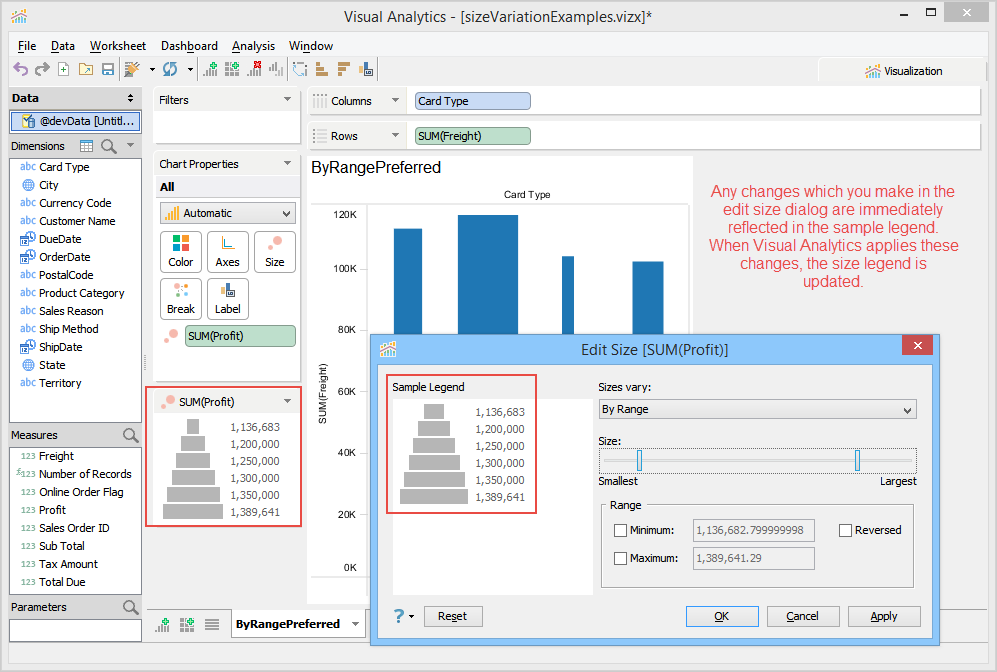

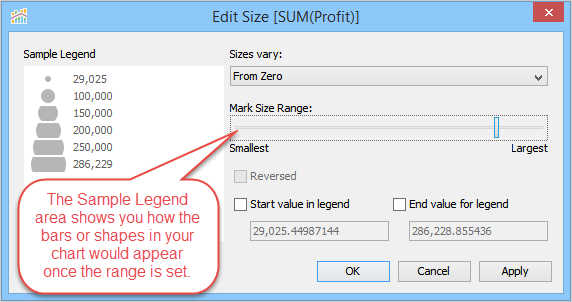

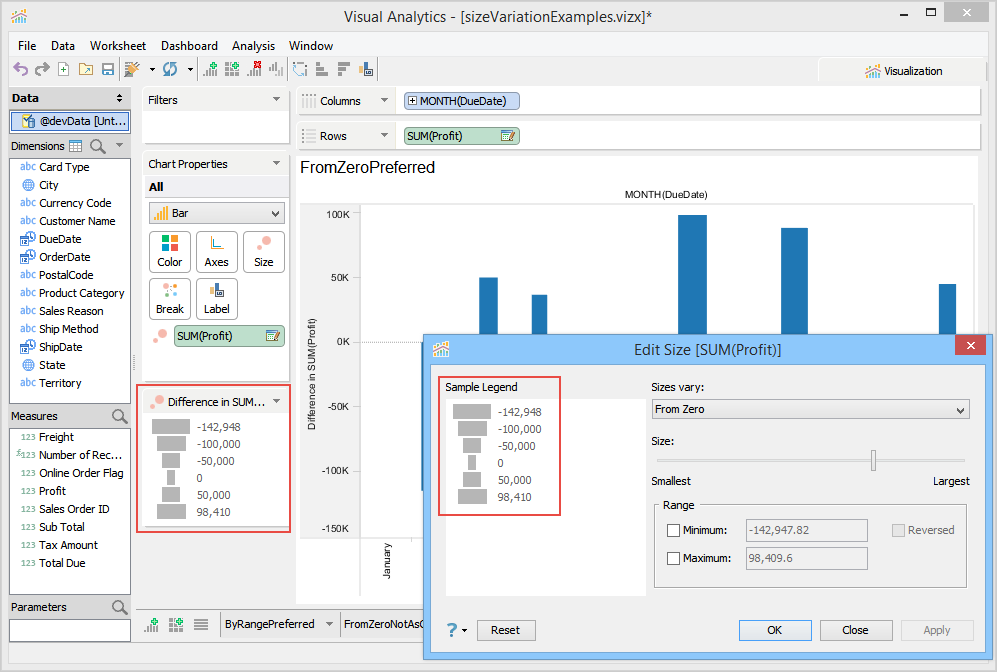

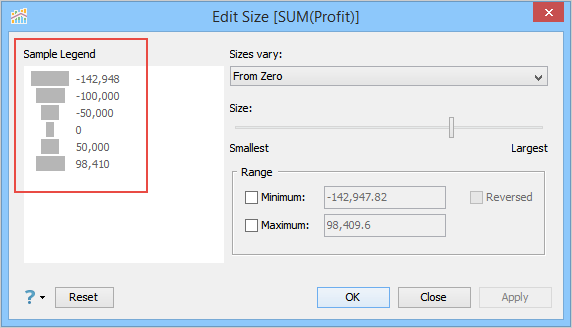

The sample legend is an exact copy of the size legend and appears on the left-side of the edit size dialog. The sample legend immediately shows how the bars or shapes in your chart would appear after Visual Analytics applied your changes.

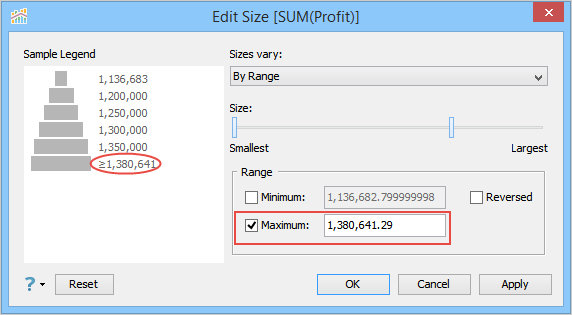

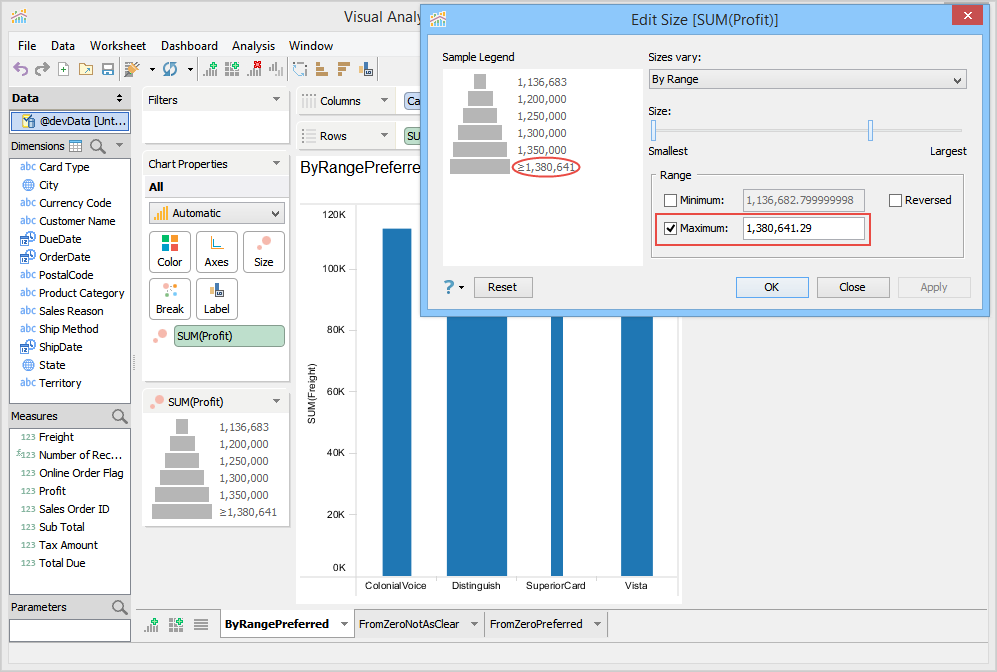

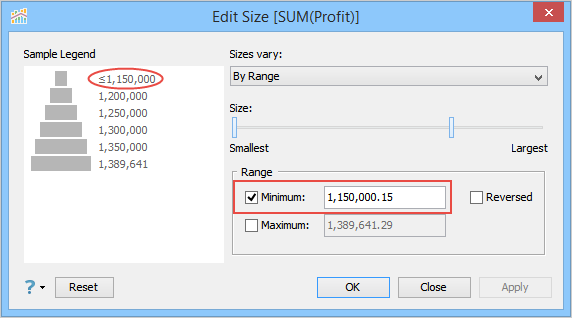

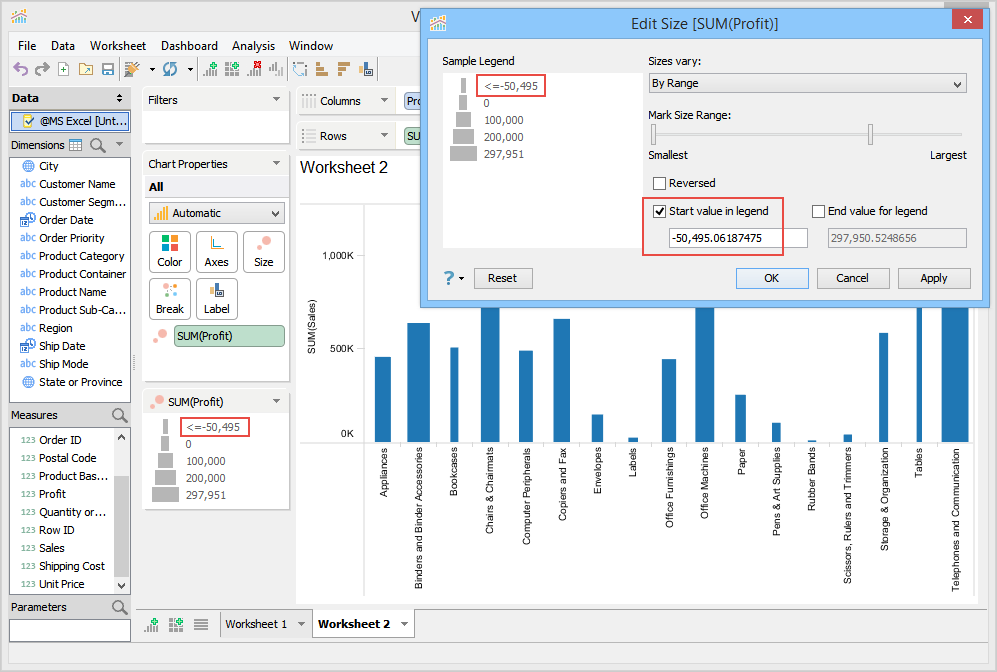

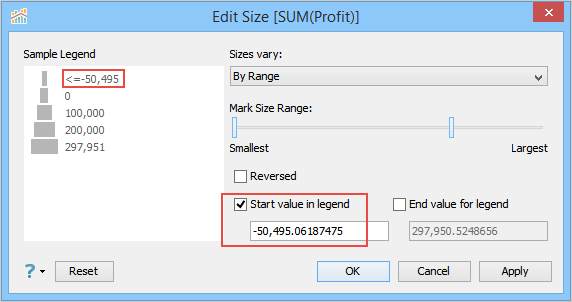

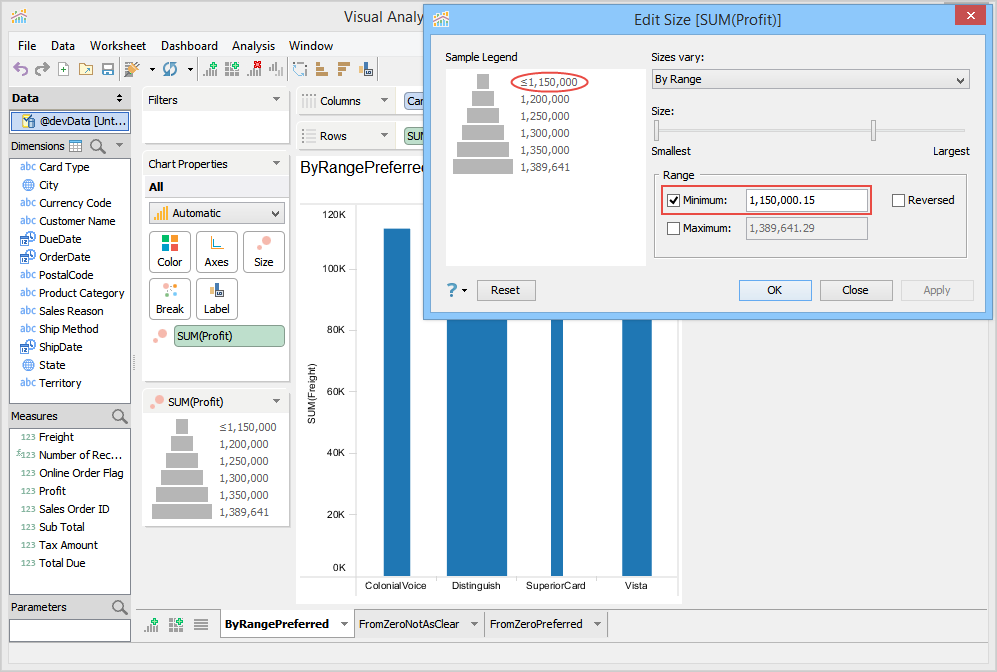

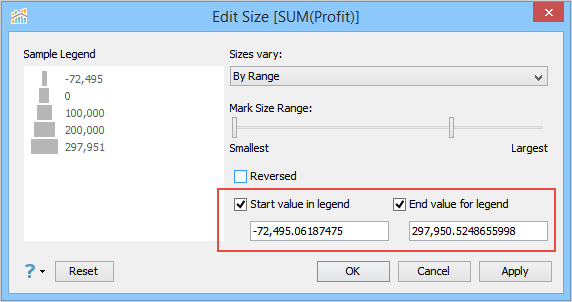

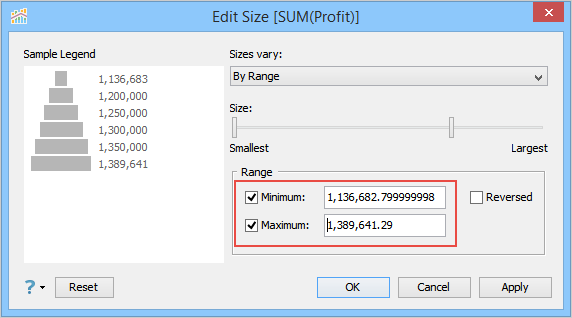

You can specify a minimum and a maximum for the size legend. If the entered minimum value is greater than the original minimum value, then Visual Analytics appends the modified value with “<” operator and assigns the smallest size to all values below the entered minimum value. If the entered maximum value is less than the original maximum value, then Visual Analytics appends the modified value with “>” operator and assigns the largest size to all values above the entered maximum value.
|When the entered value is greater than the minimum value||When the entered value is lesser than the maximum value|

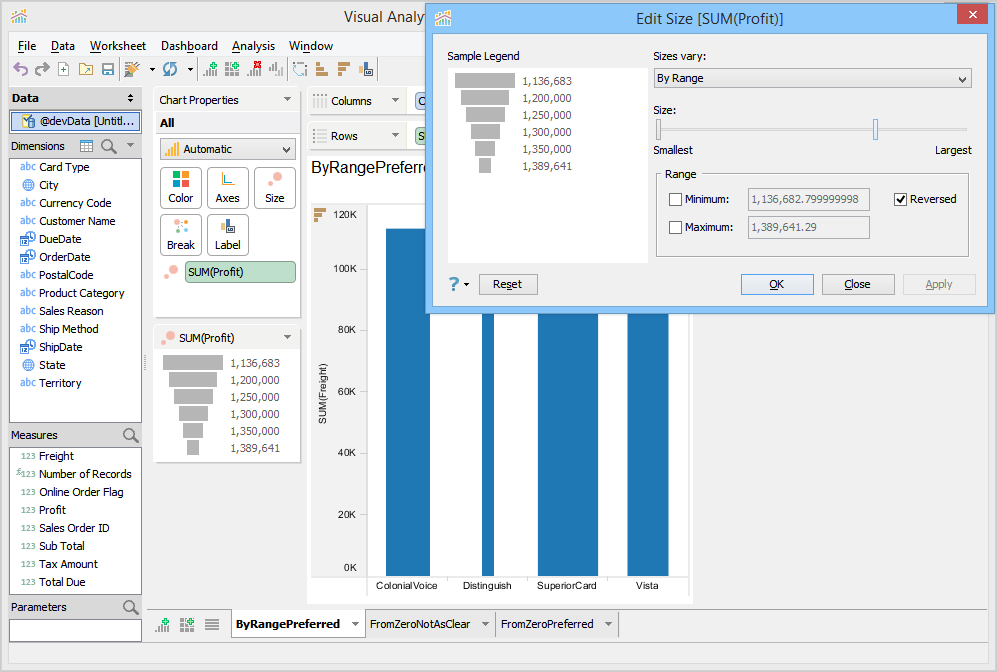

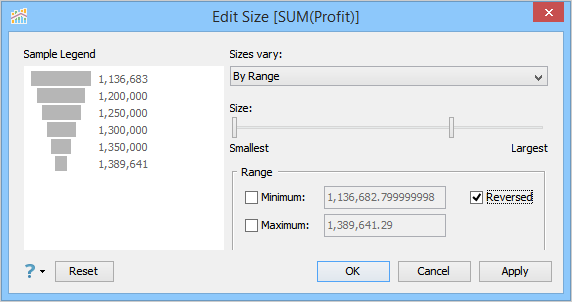

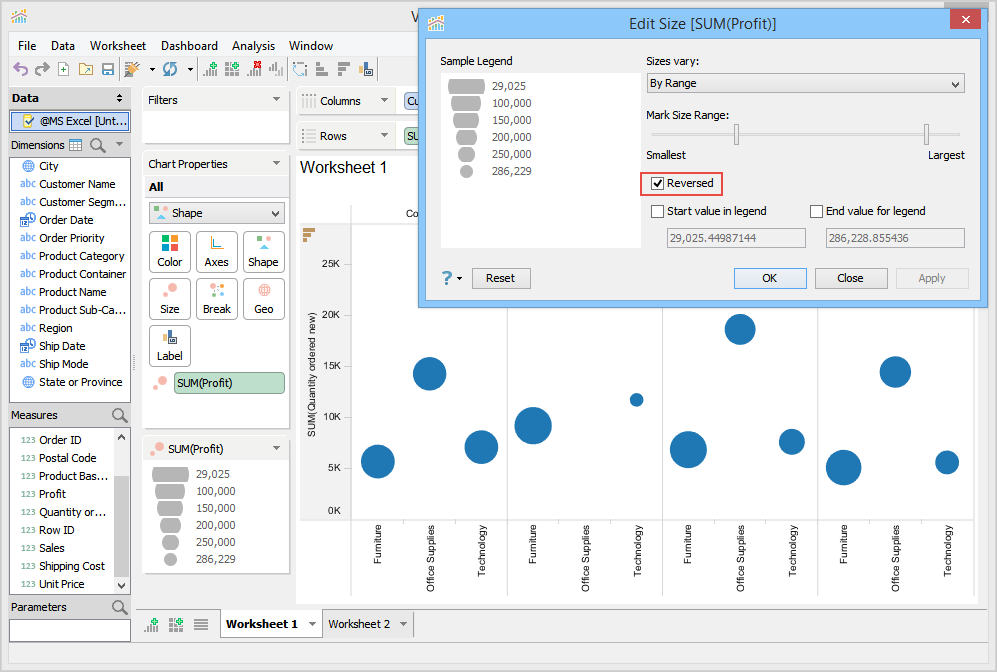

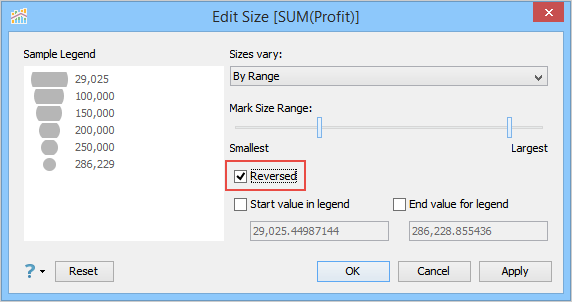

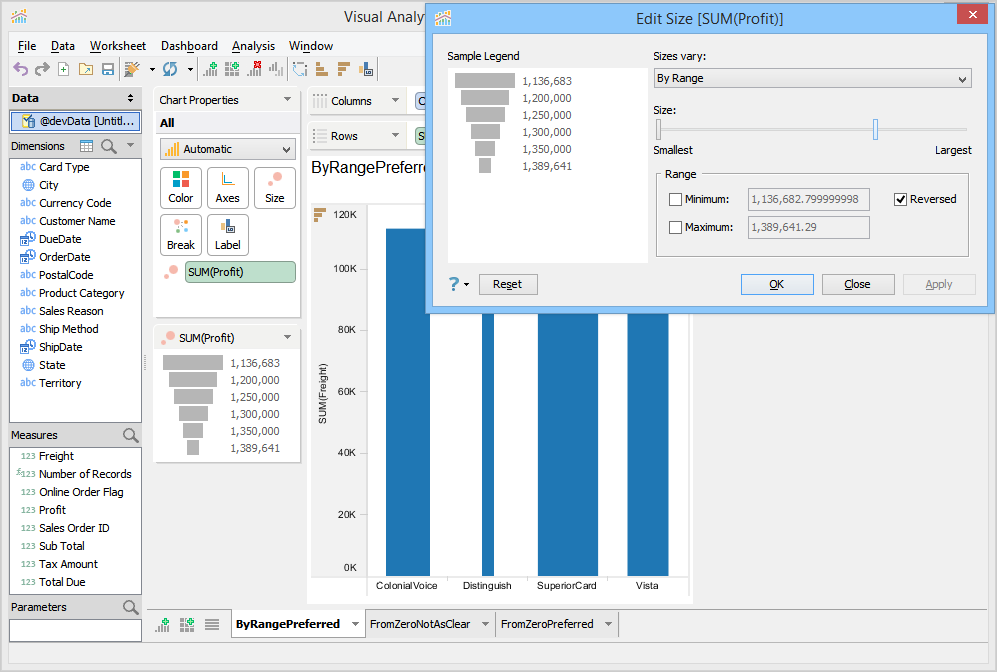

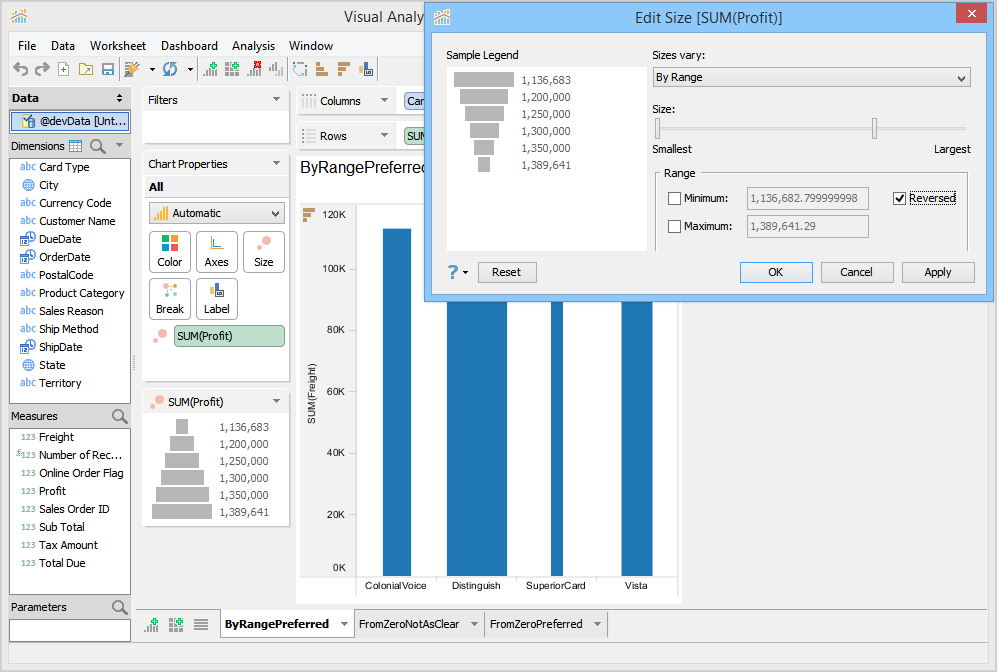

Reversing the size distribution reverses the assigned sizes from the highest range to the lowest range. This check box is read-only if you have selected the From Zero size vary option.

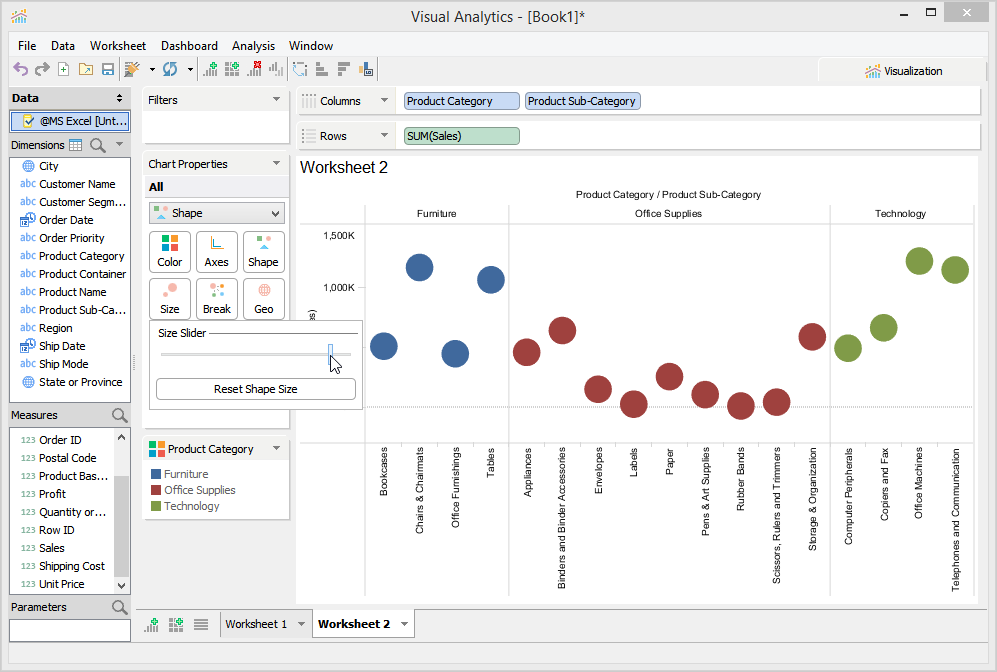

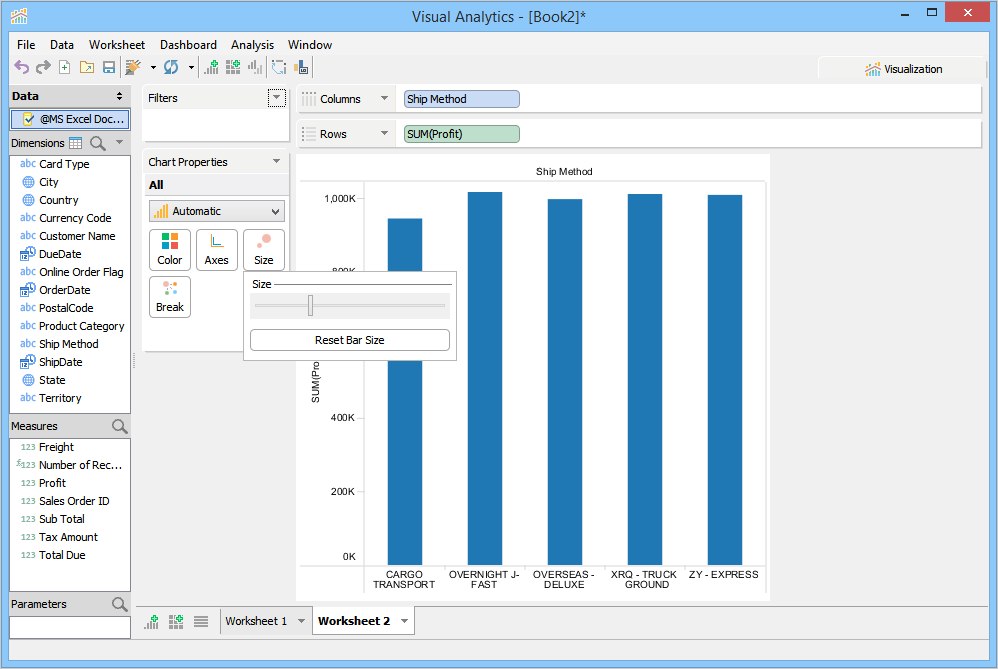

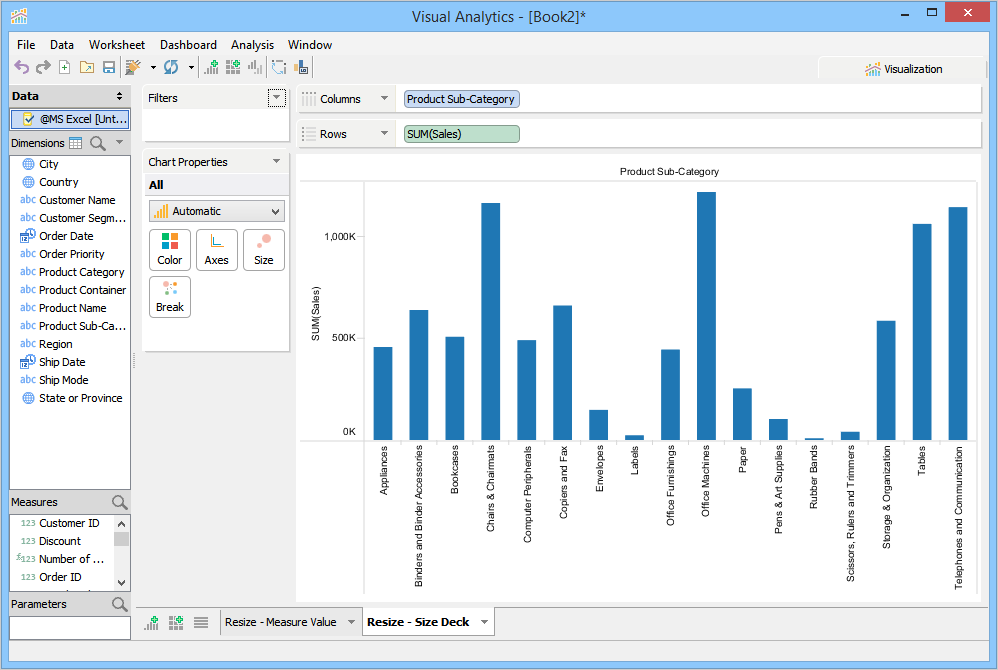

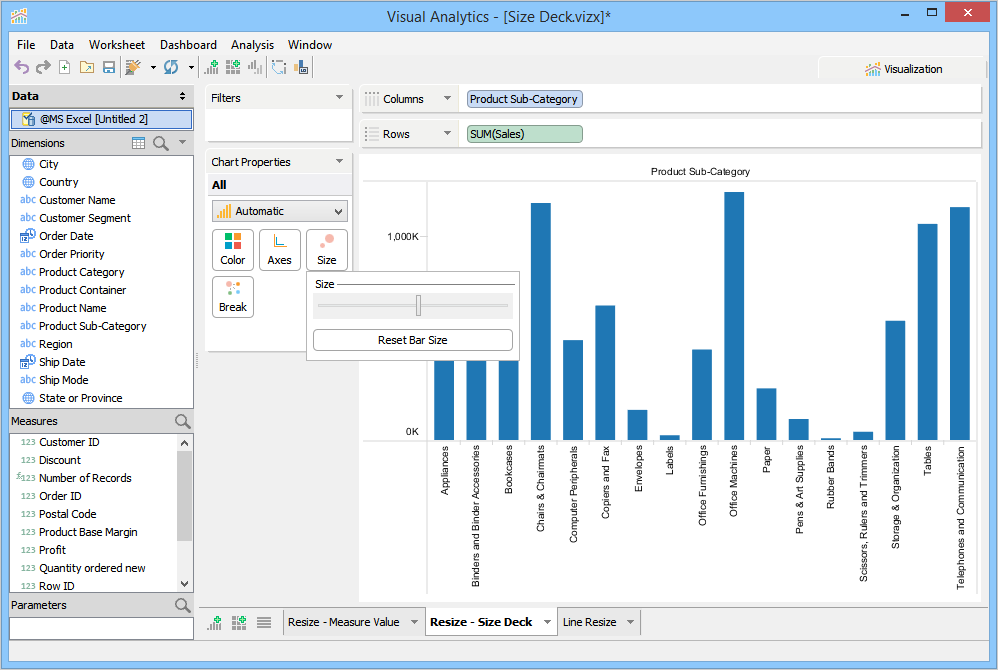

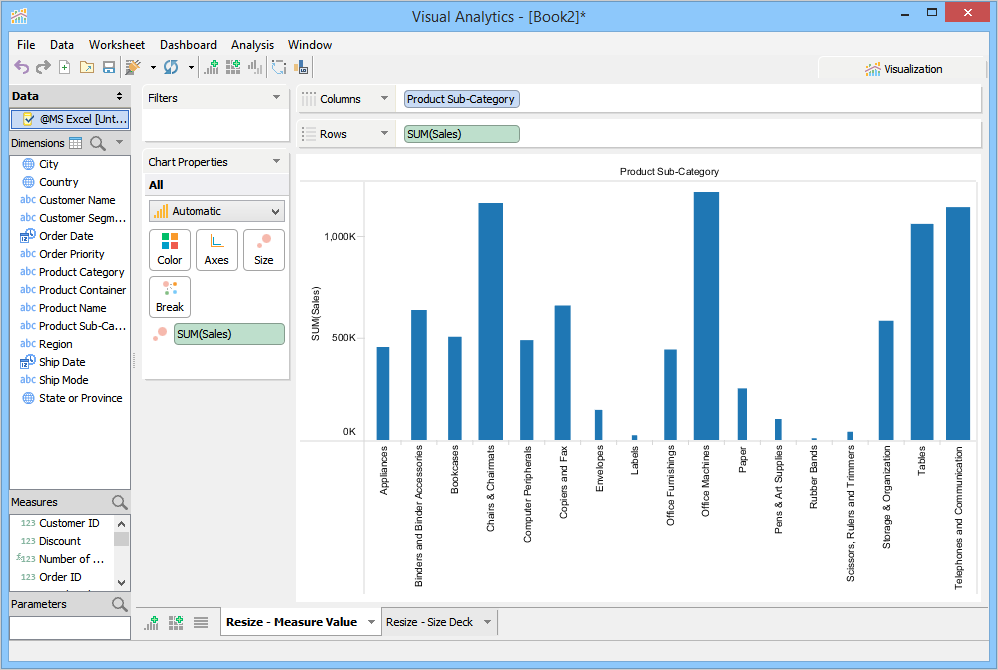

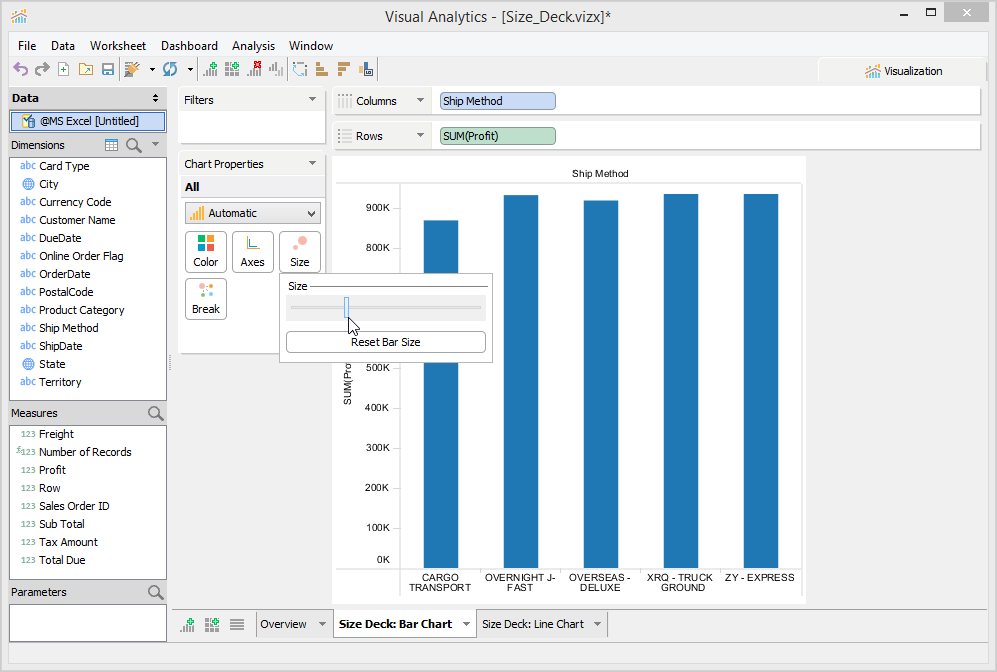

You can resize bars, lines, or shapes of a chart, based on the measure value or change the thickness uniformly without placing the measure in the Size Deck.

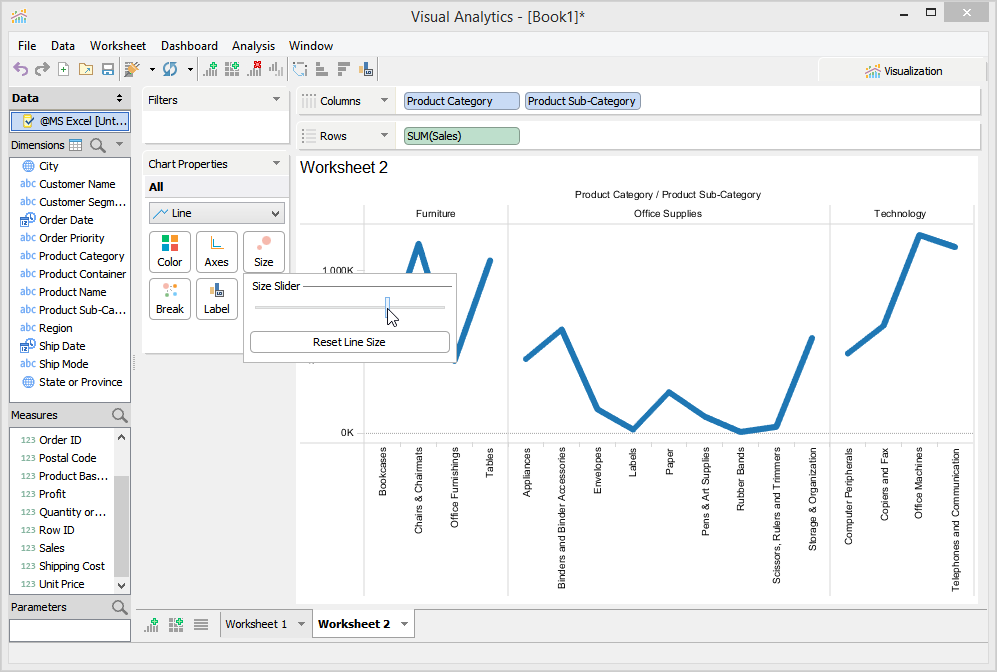

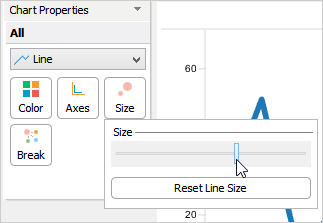

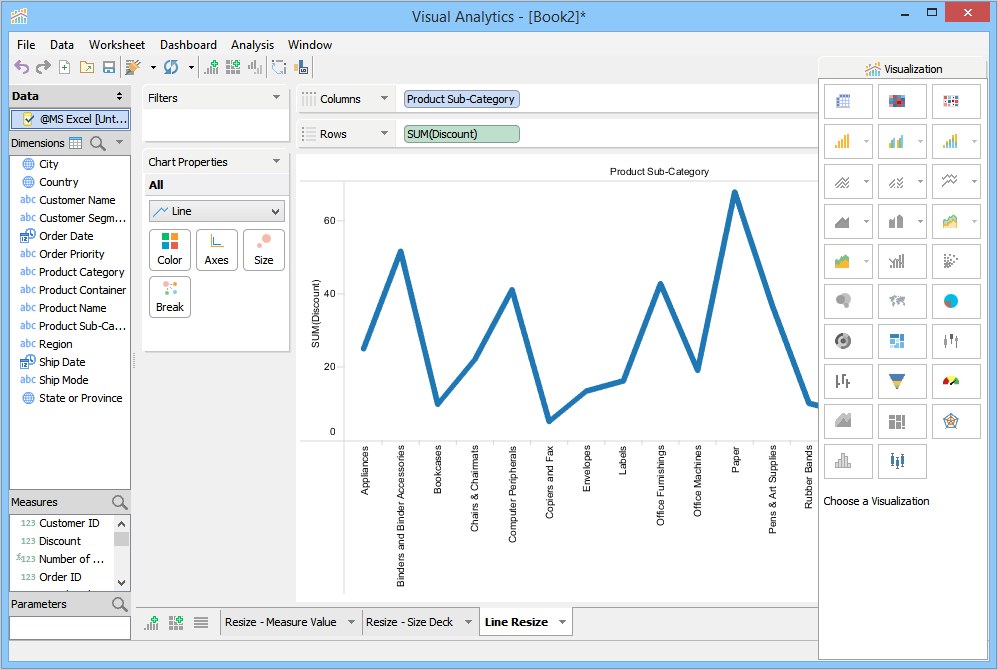

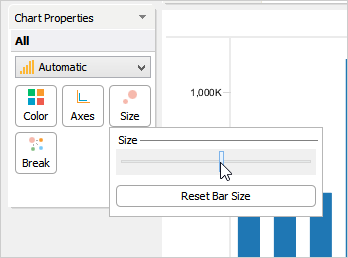

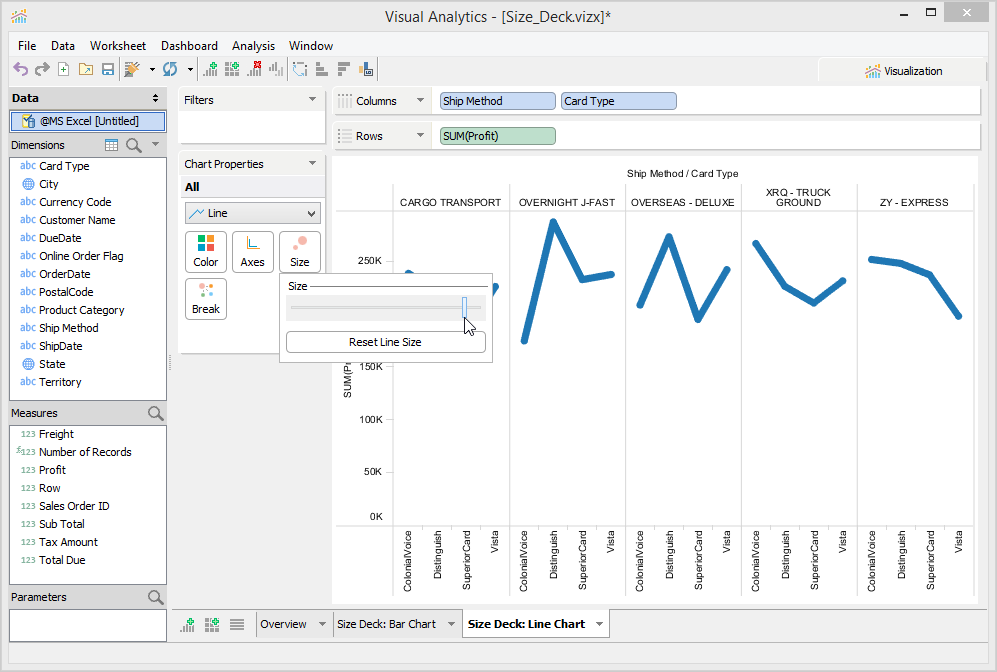

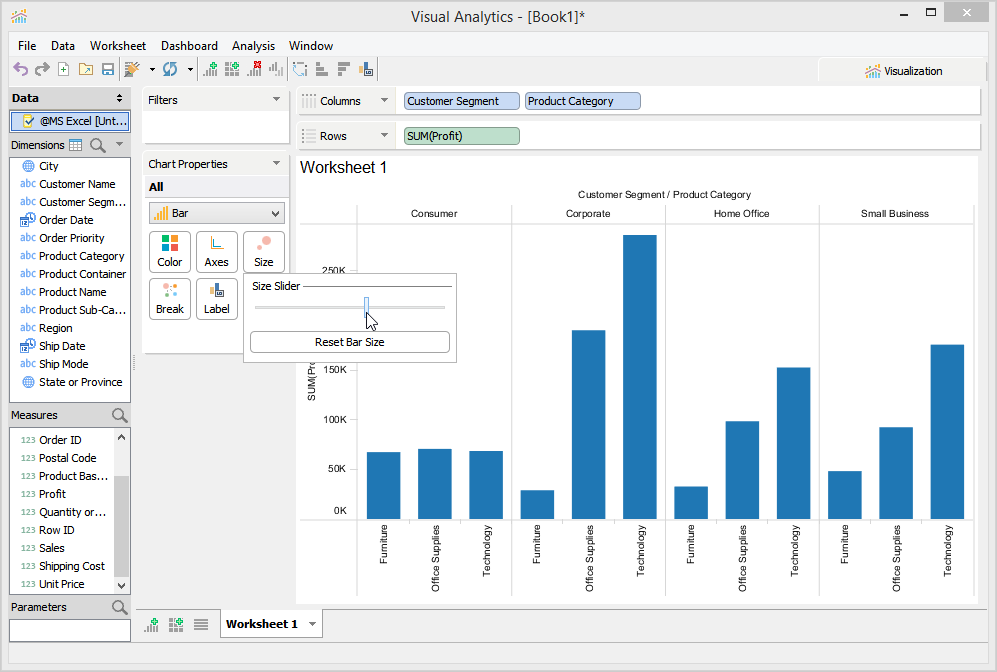

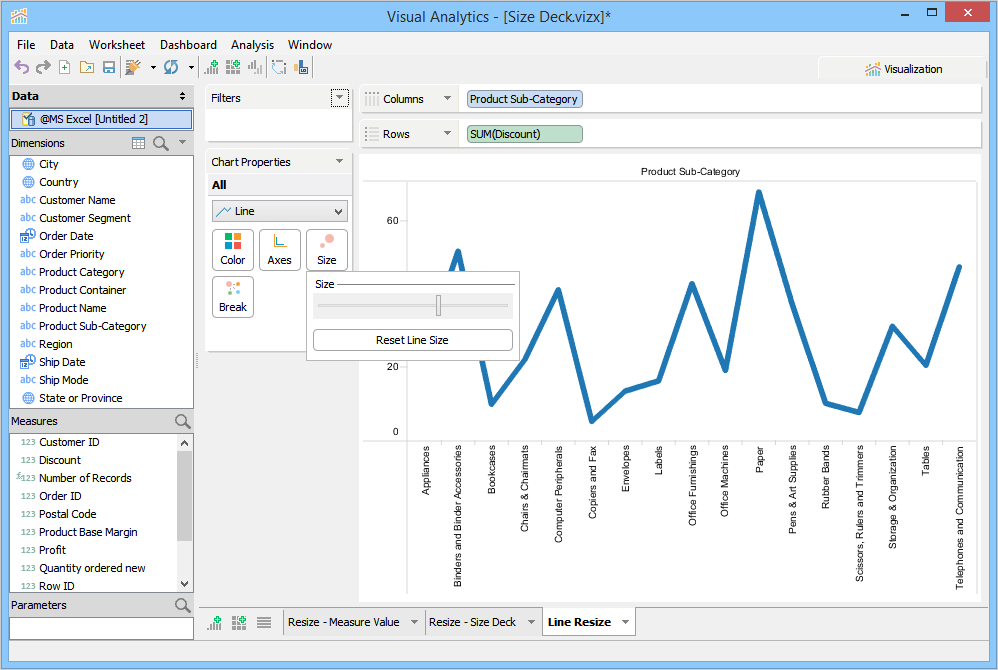

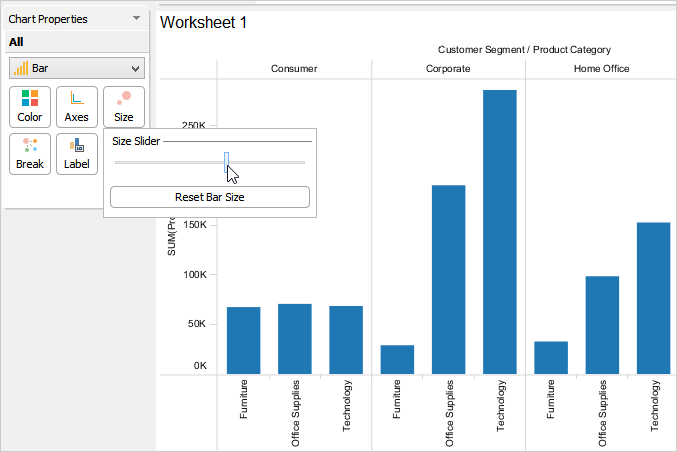

For the Line chart, you can only change the thickness of the lines uniformly. Size Deck support for measure fields is not available for Line chart in this release. To resize the size slider, click Size Deck > Size Slider.
